Set an access point, PC, IP1000C, IP100H, and IP100FS using the following steps.
IMPORTANT! We recommend that you connect the access point, IP1000C and PC in a standalone
configuration. If you connect them to your local network with the following connection settings, your local
network may not operate correctly. (IP addresses may overlap.)
STEP 1 STEP 2

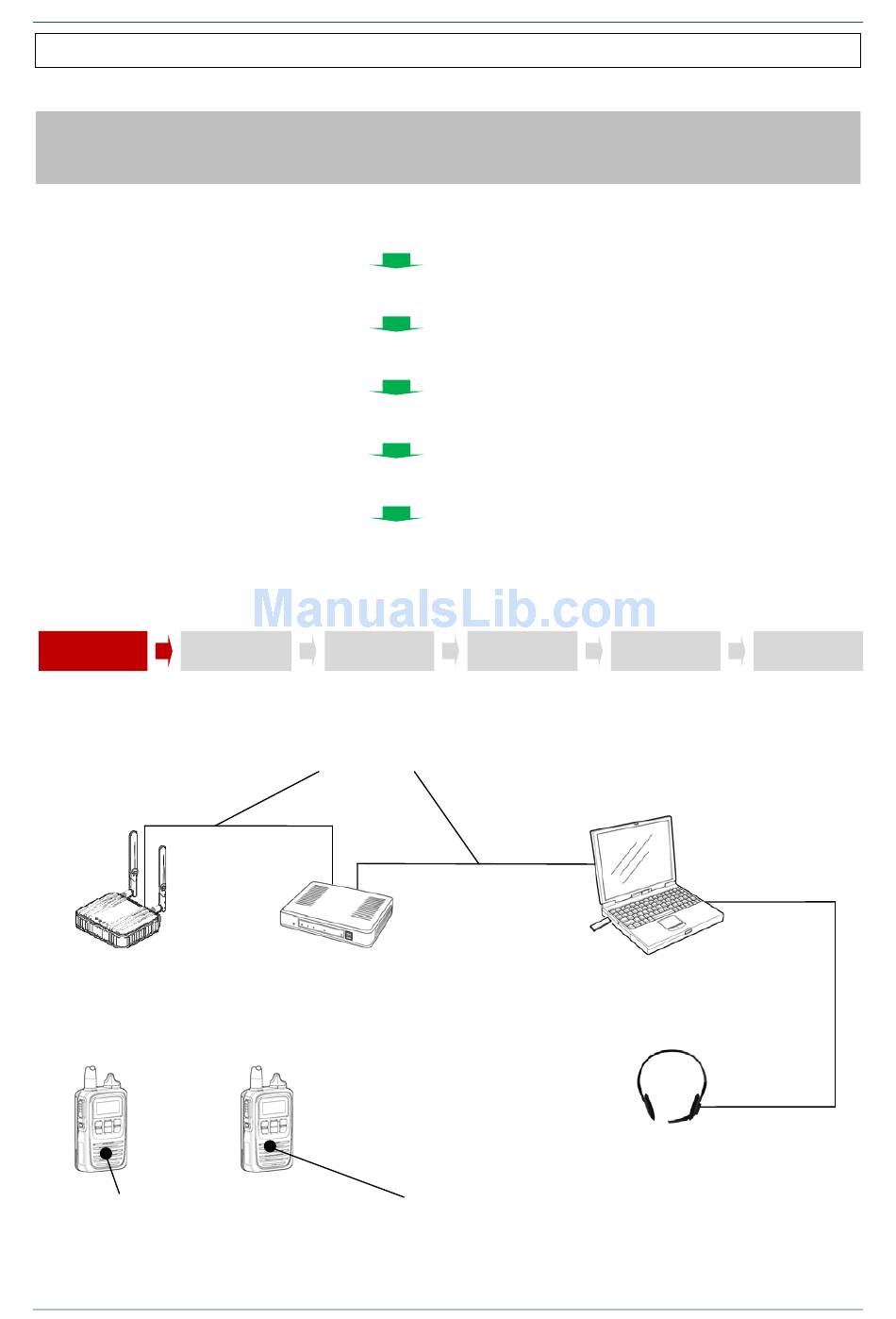

STEP 1: CONNECTION EXAMPLE
See each equipment's instruction manual for connecting and setting details.
[LAN]
Access point
IP address: 192.168.0.50
Subnet mask: 255.255.255.0
IP100H (TR 1)
DHCP Client: Enable
2-5

HOW TO SET AND USE THE IP100FS

STEP 1: CONNECTION EXAMPLE
STEP 2: ACCESS POINT SETTINGS
STEP 3: IP1000C SETTINGS
STEP 4: IP100H SETTINGS
STEP 5: IP100FS SETTINGS
STEP 6: DEMONSTRATION
STEP 3
LAN cable
[LAN 2]
[LAN 1]
IP1000C
IP address:
Subnet mask: 255.255.255.0
DHCP Server: Enable
STEP 4
[LAN]
192.168.0.1
IP100H (TR 2)
DHCP Client: Enable
27
STEP 5
PC
IP address: 192.168.0.70
Subnet mask: 255.255.255.0
Headset (3rd party products)
STEP 6
