Dynascan DS653LT5-1 User Manual

65" 4000 nits high brightness display
Hide thumbs

Advertisement

Quick Links

Download this manual
DS653LT5-1
USER MANUAL
65'' 4000 nits High Brightness Display
XXXXX | V2.01

Advertisement

loading
Need help?

Need help?

Do you have a question about the DS653LT5-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynascan DS653LT5-1

Summary of Contents for Dynascan DS653LT5-1

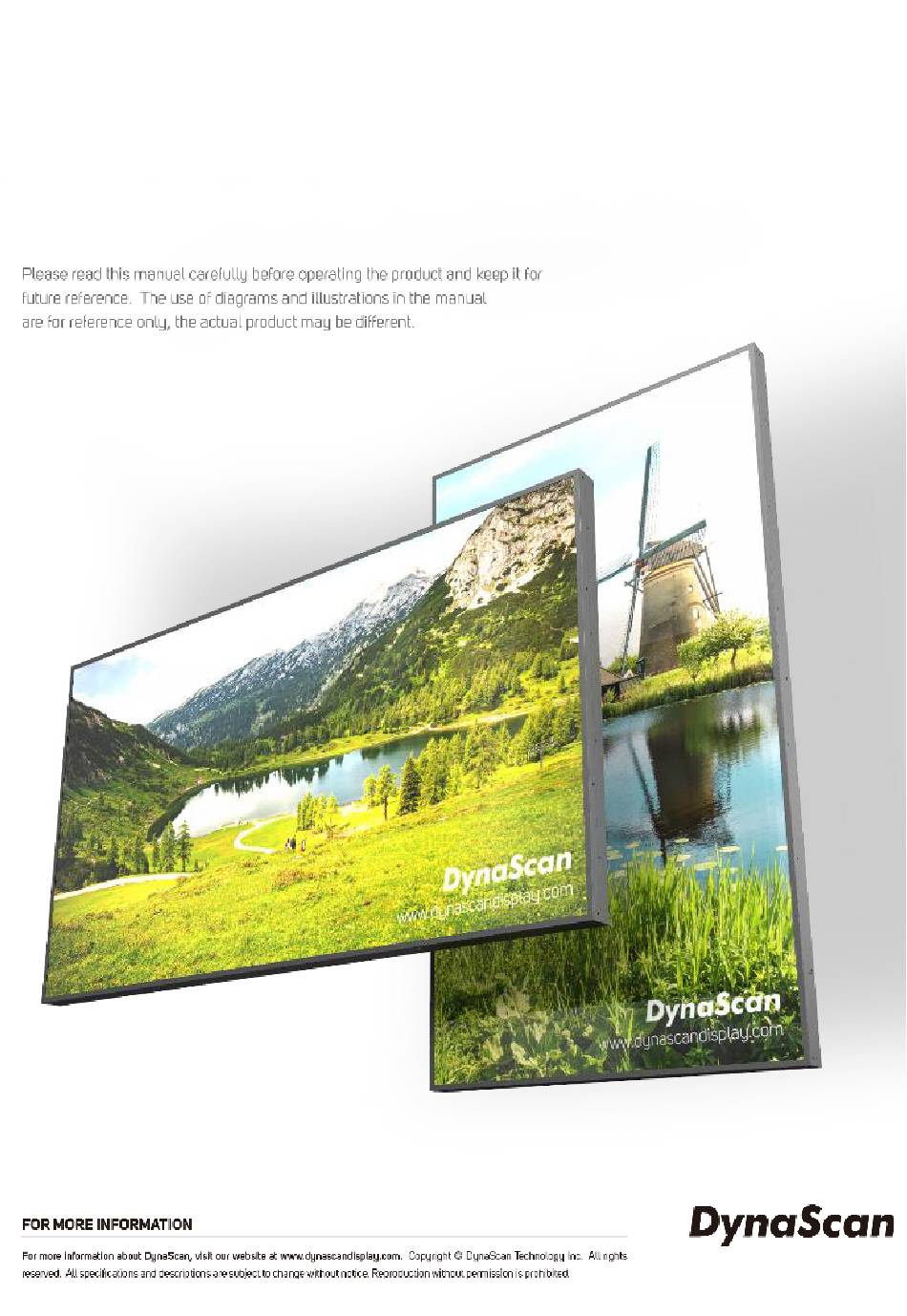

  • Page 1 DS653LT5-1 USER MANUAL 65’’ 4000 nits High Brightness Display XXXXX | V2.01...
  • Page 2 Contents Material Contents Declaration ........................ 2 Recycling and Energy Information ......................2 Declaration of Conformity ........................3 Déclaration de conformité........................4 Safety Precautions ..........................5 Précautions relatives à la sécurité ......................6 Important Safety Information ........................7 Informations importantes relatives à la sécurité ..................8 Getting Started ............................

  • Page 3: Material Contents Declaration

    SJ/T-11363-2006 and EU 2011/65/EC. Recycling and Energy Information DynaScan is firmly committed to its environmental protection efforts and we believe that reducing our products’ impact on the environment is of the utmost importance. We are dedicated to meet the latest environmental protection regulations.

  • Page 4: Declaration Of Conformity

    End-users and installers must be provide with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. Manufacturer Name DynaScan Technology Corp. Manufacturer Address 6F, No. 88 Wenmao Rd., Guishan Dist, Taoyuan City 333001,Taiwan This device complies with Directive 2014/53/EU issued by the Commission of the European Community.

  • Page 5: Déclaration De Conformité

    à la conformité aux expositions RF. Nom du fabricant DynaScan Technology Corp. Adresse du fabricant 6F, No. 88 Wenmao Rd., Guishan Dist, Taoyuan City 333001,Taiwan Cet appareil est conforme à la directive 2014/53/UE émise par la Commission de la Communauté...

  • Page 6: Safety Precautions

    Safety Precautions CAUTION Do not install near flammable material or any heat sources. Do not defeat the safety purpose of the grounding-type plug. Do not disassemble the display to avoid electrical shock or burn. Normal operating condition considers installation at an altitude below 2000m; some abnormalities may be experienced when installed at an altitude above 2000m.

  • Page 7: Précautions Relatives À La Sécurité

    Précautions relatives à la sécurité PRÉ CAUTIONS N'installez pas installer à proximité de matériaux inflammables ou de sources de chaleur. Ne pas compromettre la sécurité de la fiche de mise à la terre. Pour éviter tout choc électrique ou la brûlure, ne démontez pas l'écran. Le produit peut normalement être utilisé...

  • Page 8: Important Safety Information

    Handle the LCD with care. Save the packaging materials for transport later.  Clean the LCD backside at least once a month for dust and other particles. Unplug the LCD immediately and contact a DynaScan certified service professional as soon as possible when any of the following situations occurs: ...
  • Page 9 Nettoyez l’arrière de l’écran LCD au moins une fois par mois afin d’éliminer la poussière et autres particules. Débranchez immédiatement l'écran LCD et contactez un réparateur professionnel certifié DynaScan dès que possible lorsque l'une des situations suivantes se produit :  Cordon d'alimentation ou fiche d'alimentation endommagé.

  • Page 10: Getting Started

    Confirm that the accessories below are shipped along with the display. If any item is missing, please contact your dealer. The color and shape of the accessories may vary with the products.   DS653LT5-1 Professional LCD. Power cable x1 pc.  ...

  • Page 11: Bien Débuter

    Vérifiez que les accessoires ci-dessous sont fournis avec l’écran. Si l'un d'eux est manquant, veuillez contacter immédiatement votre revendeur. La couleur et la forme des accessoires peuvent varier selon les produits.   É cran LCD DS653LT5-1 Professional. Câble d'alimentation x 1   Télécommande x 1 Guide de démarrage rapide x 1...

  • Page 12: Installation

    The LCD must be properly installed using a wall mount. Incorrect installation may cause injury or damage the equipment. Product warranty does not cover the damage caused by improper installation and DynaScan shall not be held responsible in such incident. Refer to the mount manufacturer’s instructions for proper installation.
  • Page 13 Orientation  When used in the portrait orientation, the LCD should be rotated clockwise when looking at the front of the display such that the left edge becomes the top edge. <Front> Portrait mode: Rotate the set clockwise 90° (mandatory) <Rear>...

  • Page 14: Connecting To A Power Source

    Installation Location  Do not install in a location with strong vibrations or dusty.  Do not install near the building’s main electric panel.  Ensure the LCD is secured in such a manner that it cannot be easily removed by the general public.

  • Page 15: Connecting An External Video Source

    Connecting an External Video Source Turn OFF the power of both LCD and external video device. Take off the cover from the back of display. Using the DP cable (or HDMI cable) provided, insert one end into the DP-IN (or HDMI 1-IN, HDMI 2-IN) which shown in the diagram below.

  • Page 16: Input/Output Terminals

    Input / Output Terminals Audio (OUT): Connect the audio signal output from Audio IN jack to an external AV device. RJ-45 (IN): RJ45 network input connection. HDMI 1 (IN): Connect the HDMI output of a PC or an AV device via a HDMI cable. HDMI 2 (IN): Connect the HDMI output of a PC or an AV device via a HDMI cable.

  • Page 17: Powering On/Off The Display

    Operating Instructions Powering On/Off the Display To turn on/off the display, press the power switch on the back of the display as shown in the diagram below.

  • Page 18: Using The Remote Control

    Using the Remote Control Connection using an External Sensor Kit (ESK302) Connect the ESK302 cable (optional kit) to the mini USB port, and aim the remote at the IR receiver as shown below. Meanwhile, the IR receiver on the display will be disabled. NOTE: Ambient light may affect the performance of the remote control.
  • Page 19         *Color and shape may vary by model. ITEM DESCRIPTION  POWER Power On / Off  MENU OSD On / Off  Move the cursor up or change the setting of selected item. ...

  • Page 20: Using The Built-In Keypad

    Using the built-in keypad ITEM DESCRIPTION MENU OSD On / Off, Power On / Off. Move the cursor up or change the setting of selected item. DOWN Move the cursor down or change the setting of selected item. LEFT Exit the current selection. RIGHT Select the highlighted item.

  • Page 21: Navigating The On Screen Display (Osd) Menu

    Navigating the On Screen Display (OSD) Menu Press the MENU button on the built-in keypad or remote control to show the OSD. Use the navigation arrows to select and adjust the menu items. *The change of each setting can only enable when you press “LEFT” (refer to p.18) to back to the last menu layer.
  • Page 22 2. Picture ITEM 1 ITEM 2 DEFAULT DESCRIPTION Adjusts the color temperature to preset or Color USER user determined values. (User, D55, D65, Temperature D93, Balanced) Adjust the contrast level. Range 0 – 100. Contrast Adjusts the Gamma value. (Native, 2.2, 2.4 Gamma Native and sGamma)
  • Page 23 3. Brightness ITEM 1 ITEM 2 DEFAULT DESCRIPTION Brightness Setting :Fixed:screen brightness remains at one level. Timer:Screen brightness is determined by the time of day. Auto:Screen brightness is determined by an extension sensor kit (ESK). Mix:Mix Timer & Auto Auto Brightness Fixed Mode,Autosensor time screen brightness determined by an extension sensor kit...
  • Page 24 4. Time ITEM 1 ITEM 2 DEFAULT DESCRIPTION Region Time Zone Set the Time Zone. Set Date & Set the mode. Time Set the clock. Time Note: The internal clock will continue to Current Time function when the power is turned off.
  • Page 25 Menu. Note: When disabled, the remote control IR Control function can be enabled again from the control panel on the display or through the DynaScan “Display Manager” application. Power Restore Power On Choose to use the Power Restore Behavior Behavior function.
  • Page 26 Turn Off: Enter Password > Password Protection Off Export & Import Export or Import OSD Setting by USB. Settings Restore all settings to default. Reset Default Note: It does not modify CURRENT TIME, Settings POWER ON TIME and POWER OFF TIME.

  • Page 27: Specifications

    Specifications MODEL DS653LT5-1 LCD Panel Size 65 inches Native Resolution 1920 x 1080 Brightness 4000 cd/m² (Typ.) Contrast Ratio 4,000:1 PANEL Response Time 8 ms (Typ.) Viewing Angle 178°/ 178° Life Time 100,000 hrs (Typ.) Panel Surface AR , 2H...

  • Page 28: Input Mode

    Input Mode Active Resolution Refresh Rate H Pixels V Lines 60 Hz 60 Hz 60 Hz 60 Hz 1024 60 Hz 1280 60 Hz 1280 60 Hz 1280 60 Hz 1280 1024 60 Hz 1366 60 Hz 1400 1050 60 Hz 1440 60 Hz 1600...

  • Page 29: Pin Assignments

    Pin Assignments RS-232 Input PIN No. NAME Connected to 7&8 Connected to 6 Connected to 4 Connected to 1&8 Connected to 1&7...

  • Page 30: Troubleshooting

    Cannot control the display  Check whether the RS-232 cable is connected properly. remotely via RS-232. If you are still having trouble with your DynaScan DS² Professional LCD, contact your dealer or DynaScan directly for more assistance.
  • Page 31 About DSM365 DSM365 is an internal operating system as Android, which can install the applications via USB flash drive storage, SD card or Internet. How to Switch to DSM365  Press the MENU button on either the rear panel control or remote control to show the OSD. ...
  • Page 32 Copyright © DynaScan Technology, Inc. All Rights Reserved.
