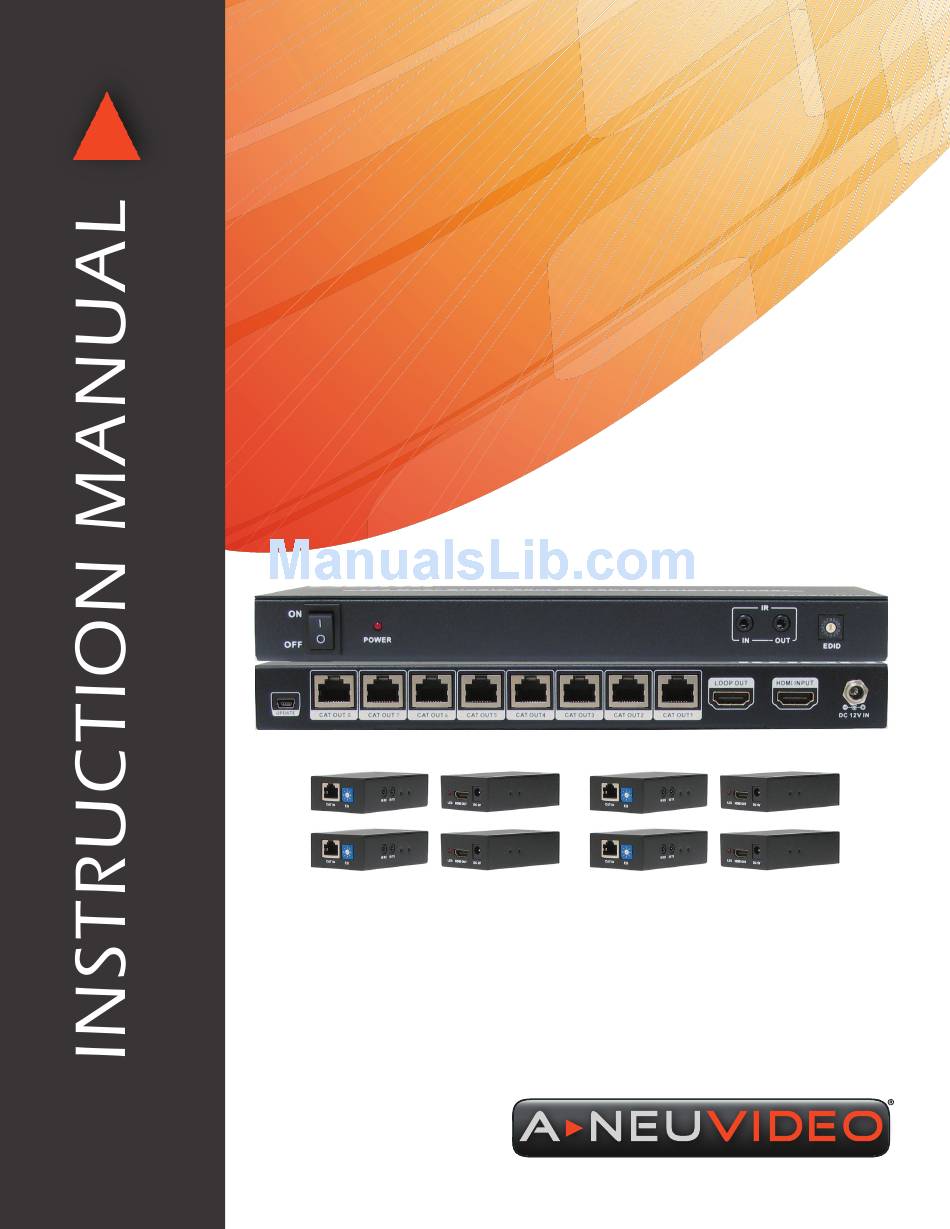

- Page 1 ANI-0108HBC HDMI 1x8 Splitter Over CAT5e/6 Extender A-NeuVideo.com Frisco, Texas 75034 (317) 456-2461 V2.0 AUDIO / VIDEO MANUFACTURER...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
• To protect the unit from overheating, do not block any vents or openings in the unit housing that provide ventilation and allow for The ANI-0108HBC Splitter is a product for splitting and extending sufficient space for air to circulate around the unit. -
Page 4: Features
NEUVIDEO FEATURES & SPECIFICATIONS FEATURES • Compliant with HDMI1.3, HDCP 1.2 and DVI 1.0 • Full HD support: 1080p@60Hz@24 bit/pixels • HDMI local loop out for HDMI input • Supports LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio • Operates for TMDS clock frequencies up to 165MHz •... -
Page 5: Operation Controls & Functions
NEUVIDEO OPERATION CONTROLS AND FUNCTIONS Splitter POWER SWITCH: Power ON\OFF Switch. POWER LED: This red LED illuminate when the device is connected with power supply. IR IN: IR Control System over CAT5e/6 Cable IR Receiver. Source to SINK, plug Wideband IR Rx into this unit. IR OUT: IR Control System over CAT5e/6 Cable IR Transmitter. -
Page 6: Edid Description
NEUVIDEO EDID Description TX EDID Description Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/display. -
Page 7: Connect & Operate
NEUVIDEO CONNECT AND OPERATE Application Example 1. Connect a source such as a Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input on the Transmitting unit. 2. Connect a display such as an HDTV or HD Projector to the HDMI output on every receiving unit. 3. - Page 8 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
