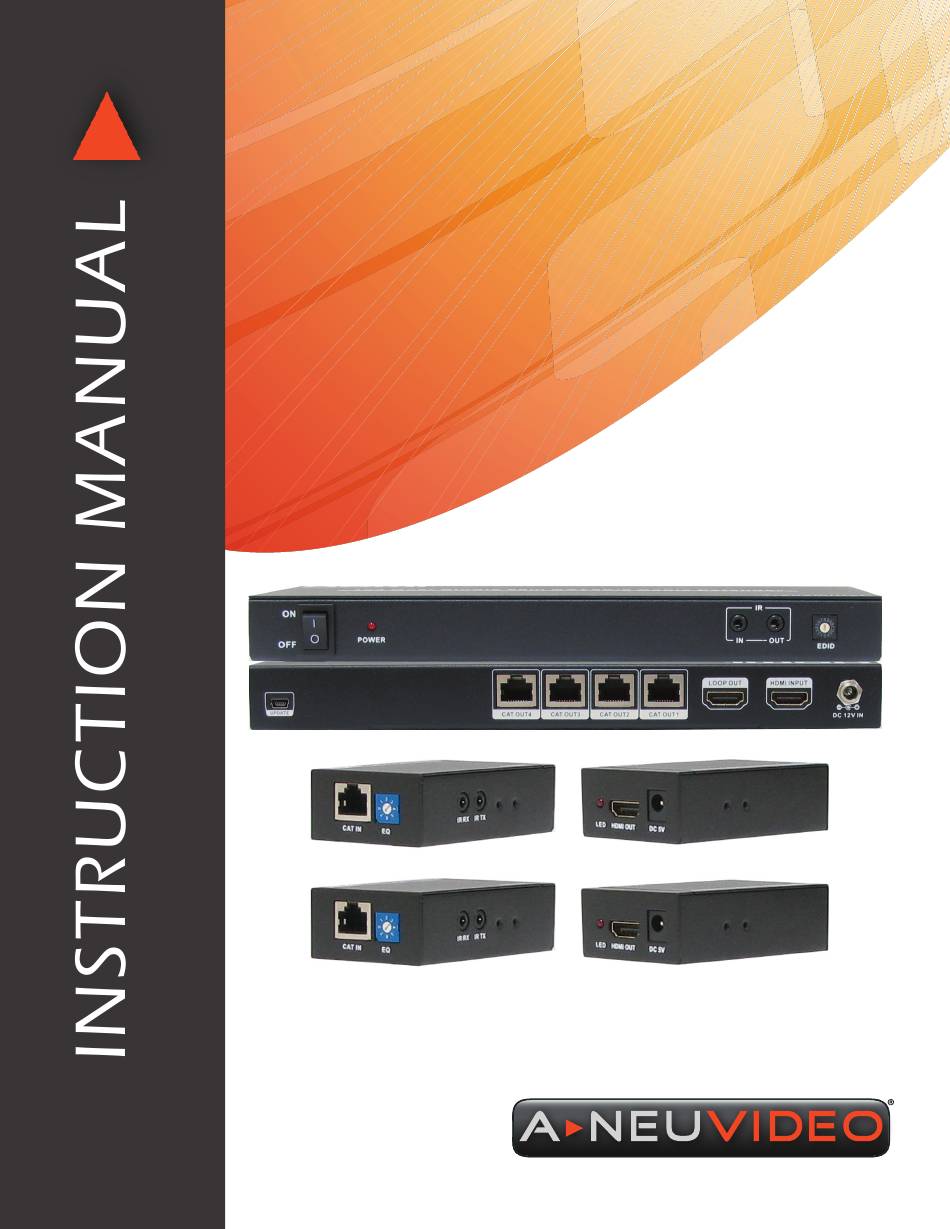

- Page 1 ANI-0104HBC HDMI 1x4 Splitter Over CAT5e/6 Extender A-NeuVideo.com Frisco, Texas 75034 (317) 456-2461 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
INTRODUCTION sufficient space for air to circulate around the unit. The ANI-0104HBC Splitter is a product for splitting and extending your HDMI signal over long distances to a compatible display. It is designed to convert the HDMI signal and transmit by a CAT5E/6 DISCLAIMERS cable. -
Page 4: Features
• Supports EDID control via EDID selector • Transfer bi-directional infrared control signal together with the HDMI signal • ~13 ft IR signal distance to the Remote Control • The ANI-0104HBC is NOT compatible with EZ-45 connectors SPECIFICATIONS • HDMI Splitter Input/Output Ports: •... -
Page 5: Operation Controls & Functions
NEUVIDEO OPERATION CONTROLS & FUNCTIONS Splitter POWER SWITCH: Power ON\OFF Switch. POWER LED: This red LED illuminates when the device is connected with the power supply. IR IN: IR controls the system over a CAT5e/6 cable IR Receiver. Source to SINK, plug Wideband IR Rx into this unit. IR OUT: IR controls the system over a CAT5e/6 cable IR Transmitter. -
Page 6: Receiver
NEUVIDEO OPERATION CONTROLS & FUNCTIONS receiver CAT6: Connects the CAT input of the receiver with the CAT output of the transmitter with a CAT5e/6 cable. EQ SELECTOR: Equalizer selector. See the EQ description. LOCK LED: This red LED will illuminate when the Splitter and Receivers are connected with a CAT5e/6 cable. HDMI OUT: HDMI Output port. -
Page 7: Edid Description
NEUVIDEO EDID Description TX EDID Description Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/display. -
Page 8: Connect & Operate
NEUVIDEO CONNECT & OPERATE Application Example 1. Connect a source such as a Blu-Ray player, game console, A/V Receiver, Cable or Satellite Receiver, etc. to the HDMI input on the Transmitting unit. 2. Connect a display such as a HDTV or HD Projector to the HDMI output on the receiving units. 3. - Page 9 NEUVIDEO CONNECT & OPERATE IR CONTROL DISPLA Y TO SOURCE...
- Page 10 NEUVIDEO CONNECT & OPERATE IR CONTROL SOURCE to DISPLA Y...
- Page 11 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 12 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
