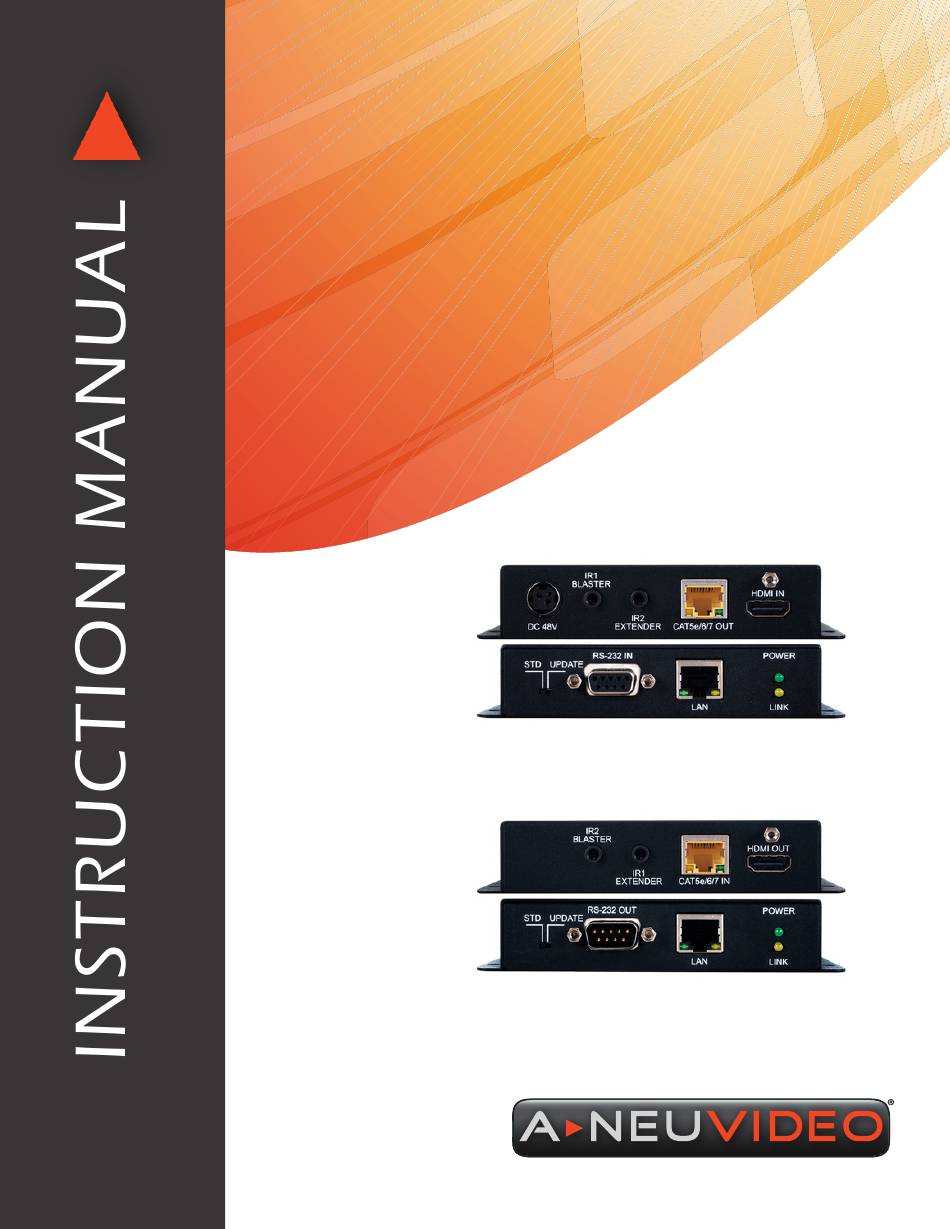

- Page 1 ANI-7251TX/RX HDMI over CAT5e/6/7 Extender w/ LAN/IR/RS-232/PoE Transmitter & Receiver TRANSMITTER RECEIVER A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
We assume no responsibility for any inaccuracies that may be make sure the following items are contained in the shipping carton: contained in this document. We make no commitment to update or • ANI-7251TX HDMI to CAT5e/6/7 (w/ LAN/IR/RS-232) to keep current the information contained in this document. Transmitter... -
Page 4: Features
NEUVIDEO FEATURES FEATURES • HDMI with 3D, 4K2K support, HDMI & DVI Compliant • Supports CEC bypass • Simultaneous transmission of uncompressed data over a single ~328ft / 100M CAT5e/6/7 cable • 5Play™ convergence: HDMI, LAN, PoE & Control (IR & RS-2232) •... -
Page 5: Specifications
NEUVIDEO SPECIFICATIONS Specifications • Video Bandwidth: 340MHz / 10.2Gbps • TRANSMITTER • Inputs: • HDMI • IR Extender • RS-232 • LAN • Outputs: • CAT5e/6/7 • IR Blaster • RECEIVER • Inputs: • CAT5e/6/7 • IR Extender • Outputs: •... - Page 6 NEUVIDEO SPECIFICATIONS CAT5e/6/7 Cable Specification CABLE TYPE RANGE PIXEL CLOCK RATE VIDEO DATA RATE SUPPORTED VIDEO CAT5e/6/7 ~328 ft/100M <=225 MHz <=5.3 Gbps (HD Video) Up to 1080p, 60Hz, 36 bits, 3D (data rates lower than 5.3Gbps or below 225MHz TMDS clock). ~230 ft/70M/ CAT5e/6 >225 MHz >...
-
Page 7: Operation Controls & Functions
NEUVIDEO Operation controls & Functions Transmitter front back DC 48V: Plug the 48V DC power supply into the unit and connect the adaptor to an AC outlet. IR1 BLASTER: Connect to the supplied IR Blaster cable for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled. - Page 8 NEUVIDEO Operation controls & Functions Receiver front back DC 48V: IR2 BLASTER: Connect to the supplied IR Blaster cable for IR signal transmission. Place the IR Blaster in direct line-of-sight of the equipment to be controlled. IR1 EXTENDER: Connect to the supplied IR Extender cables for IR signal reception. Ensure that remote being used is within the direct line-of-sight of the IR Extender.
-
Page 9: Rs-232 Pin Definition / Ir Cable Pin Assignment
NEUVIDEO RS-232 Pin Definition / IR Cable Pin Assignment D-Sub 9 Pin Definitions DEFINE TX / RX TxD / RxD RxD / TxD IR Cable Pin Assignment... -
Page 10: Connection Diagram
NEUVIDEO CONNECTION DIAGRAM CONNECTION DIAGRAM... - Page 11 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 12 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
