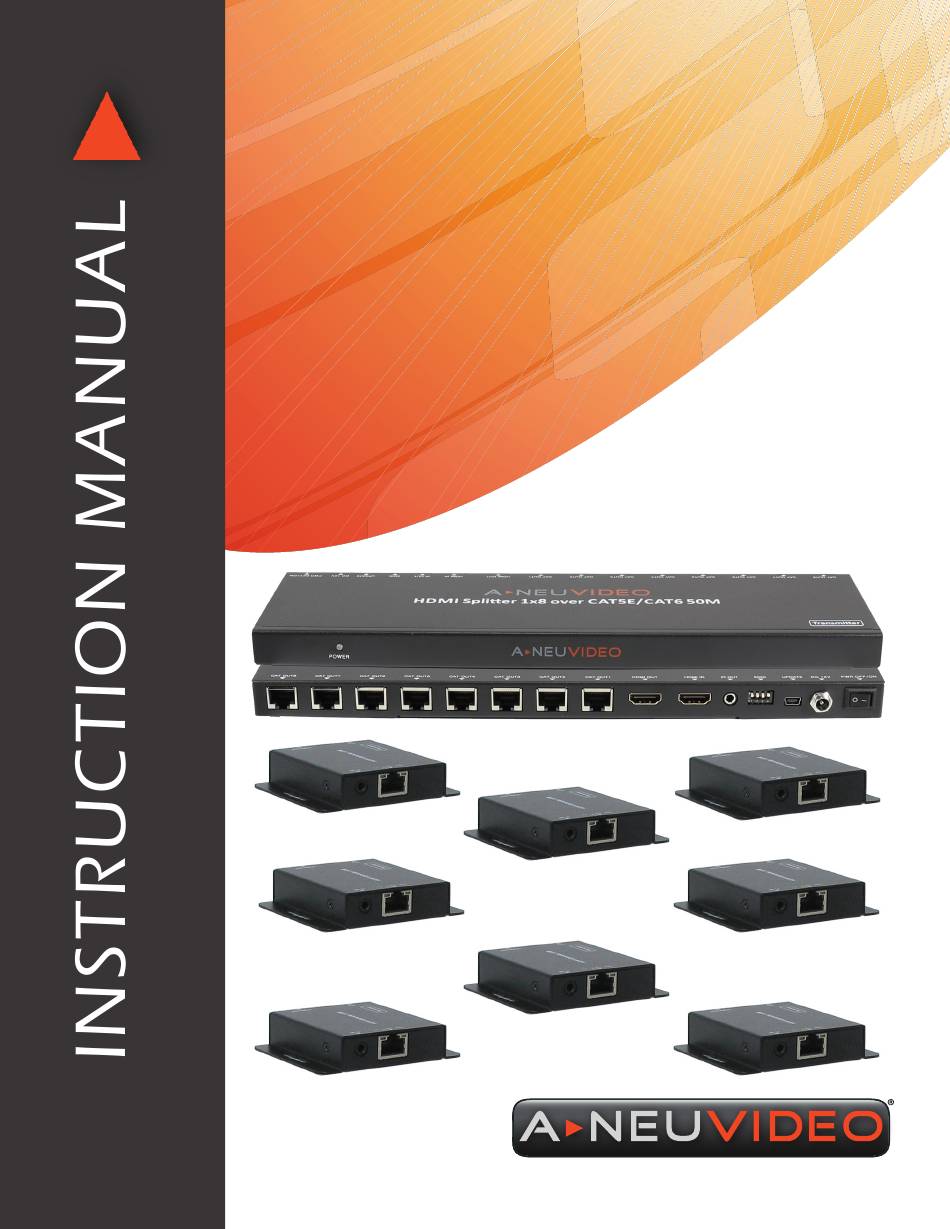

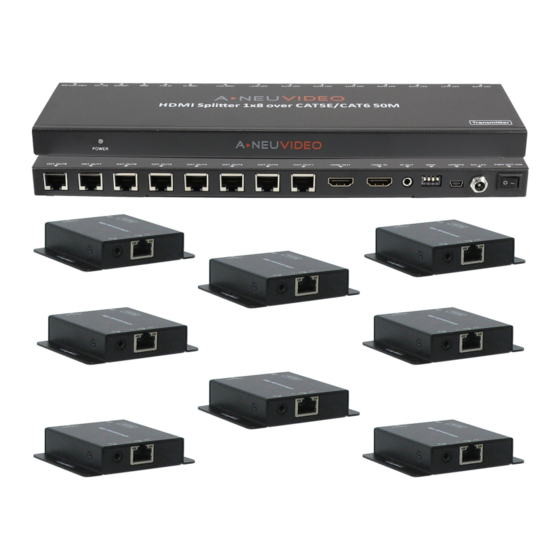

- Page 1 ANI-0108POE HDMI POE 1x8 Splitter Over CAT5e/6 Extender A-NeuVideo.com Frisco, Texas 75036 AUDIO / VIDEO MANUFACTURER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
(not included). Finally, each remote receiver is connected to a RJ- 45 port on the ANI-0108POE using a single CAT5e/6 cable. For maximum distance performance, always use 24 AWG Solid Wire COPYRIGHT NOTICE CAT5e/6 cable. -
Page 4: Features
• Uses a single UTP LAN cable (CAT5E/6) as a substitute for a HDMI cable to achieve long distance transmission • UTP cable termination follows IEEE-568B standards • Supports EDID control via EDID selector • The ANI-0108POE is NOT compatible with EZ-45 connectors SPECIFICATIONS • HDMI Splitter Input Ports: •... -
Page 5: Operation Controls & Functions
NEUVIDEO OPERATION CONTROLS & FUNCTIONS Splitter POWER LED: Illuminates when the device is connected to the power supply. CAT OUT1-8: (8) RJ45 jacks provided for signal output. HDMI OUT: Local HDMI loop output port. HDMI IN: HDMI Input port. Connects the source with a HDMI cable. IR OUT: Connects with the IR Blaster cable, included in the package, for IR signal transmission. - Page 6 NEUVIDEO OPERATION CONTROLS & FUNCTIONS receiver EQ SWITCHER: HDMI Receiver equalizer switch. See the EQ description. HDMI OUT: Connects with the HDMI input port of your display such as an HDTV. IR IN: Connects to the IR Receiver for IR signal reception. Ensure that the remote being used is within the direct line-of-sight of the IR receiver.
-
Page 7: Edid Description
NEUVIDEO EDID Description EDID Control Under normal circumstances, a source device (digital and analog) will require information about a connected device/display to assess what resolutions and features are available. The source can then cater its output to send only resolutions and features that are compatible with the attached device/display. -
Page 8: Rx Equalizer
NEUVIDEO RX EQUALIZER RX Equalizer distance adjust If you see a flickering or blinking image on the display, adjust the EQ switch to improve the cable skew. MAX stands for the strongest HDMI signal level for the longest possible transmission length. MIN stands for the weakest HDMI signal level for short transmission length. Adjust the signal level from MIN to MAX until the desired video quality is displayed. -
Page 9: Connect & Operate
NEUVIDEO CONNECT & OPERATE Wideband IR (30KHz---60KHz) introduction Control a local device (Blu-ray player or DVD player, etc) from a remote: Connect the IR Receiver to the receiver IR input port. The CAT output connector on the HDMI Splitter is connected via a CAT6 cable to a HDMI receiver. The IR Transmitter is connected to the HDMI Splitter IR output. -
Page 10: Application Example
NEUVIDEO Application Example Application Example 1. Connect a source (Blu-Ray Player, game console, A/V Receiver, Cable or Satellite Receiver, etc.) to the HDMI input on the Transmitting base unit. 2. Connect a display (HDTV, HD Projector, etc.) to the HDMI output on the Receiving unit. 3. - Page 11 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 12 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
