- Page 1 ANI-5PLAY HDMI + LAN Extender PoH CAT5e/CAT6 HDBaseT™ INSTRUCTION MANUAL A-NeuVideo.com | Frisco, Texas 75034 (317) 456-2461...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents

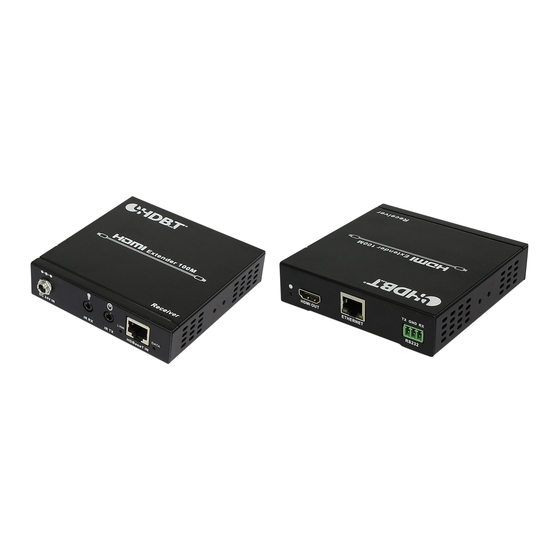

INTRODUCTION • Use only the supplied power supply unit (PSU). Do not use the The ANI-5PLAY™ is an HDMI extender tool which can extend your PSU if it is damaged. HDMI signal to 328 ft (100 meters) to a compatible display. It is •... -
Page 4: Features
FEATURES & SPECIFICATIONS FEATURES • POE (Power Over Ethernet) function support, either TX or RX powered 12V@2.5A,a nother don’t need power form the DC jack • POE Power Consumption less than 10W (See the description 1) • Use single UTP LAN cable (CAT5E/6) to substitute HDMI cable to achieve long distances transmission •... -
Page 5: Operation Controls And Functions
OPERATION CONTROLS AND FUNCTIONS TRANSMITTER RS-232: Phoenix jack provide Serial port control signal from receiver or to receiver. IR IN: Chanel 1 IR Receiver. Connect with Wideband IR Rx. IR OUT: Chanel 2 IR Transmitter. Connect with Wideband IR Tx. HDBaseT OUT: Standard HDBaseT... -
Page 6: Receiver
OPERATION CONTROLS AND FUNCTIONS RECEIVER RS-232: Phoenix jack provide serial port control signal from transmitter or to transmitter. IR IN: Chanel 2 IR Receiver. Connect with Wideband IR Rx. IR OUT: Chanel 1 IR Transmitter. Connect with Wideband IR Tx. HDBaseT Standard HDBaseT signal input port. -
Page 7: Descriptions
DESCRIPTION DESCRIPTION 1 POE (Power Over Ethernet) Application Example. DESCRIPTION 2 Bidirectional Infrared control Application Example. - Page 8 DESCRIPTION DESCRIPTION 3 Bidirectional RS-232 control Application Example. DESCRIPTION 4 Bidirectional Ethernet signal Application Example.
-
Page 9: Application Example
APPLICATION EXAMPLE APPLICATION ExAMPLE IR DESCRIPTION... - Page 10 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
