Instruction Manual
HOBBIRAN.COM

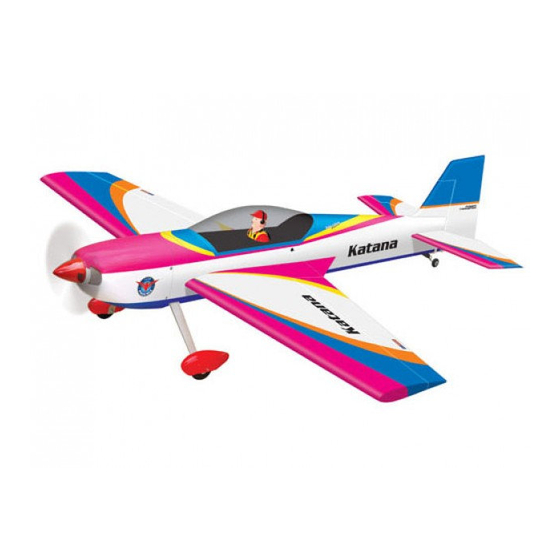

KATANA-61
Wingspan : 1420 mm (56 in)
Length
g
Weight
Radio
Engine
: 1420 mm (56 in)
: 2700g - 3200g
: 6-9 channel/ 6 digital servo
: 61 two stroke

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KATANA-61 and is the answer not in the manual?

Questions and answers

Related Manuals for Phoenix Model KATANA-61

Summary of Contents for Phoenix Model KATANA-61

  • Page 1 Instruction Manual HOBBIRAN.COM KATANA-61 Wingspan : 1420 mm (56 in) Length : 1420 mm (56 in) Weight : 2700g - 3200g Radio : 6-9 channel/ 6 digital servo Engine : 61 two stroke...

  • Page 2: Instruction Manual

    Instruction Manual KATANA 61 KIT CONTENTS: We have organized the parts as they come out of the box for better identification during assembly. We recommend that you regroup the parts in the same manner. This will ensure you have all of parts required before you begin assembly MAIN GEAR ASSEMBLY AILERON CONTROL SYSTEM .

  • Page 3: Installing The Aileron Servo

    Instruction Manual KATANA 61 Installing the aileron servo: Remove the covering. Install and secure the aileron servo. Mark the holes from the control horn onto the bottom of Drill a hole for control horn. the aileron and INLINE with the servo arm. Secure the control horn.
  • Page 4 Instruction Manual KATANA 61 Install the nylon control to the end of the pushrod. Adjust the length of the pushrod. Attach the metal clevis to the nylon control horn. Attach the nylon control to the servo arm and secure it. Installing the horizontal and the vertical: Center line Make the center line onto the stabilizer.
  • Page 5 Instruction Manual KATANA 61 A=A-1 A=A-1 Insert the horizontal into the fuselage. Check the horizontal and the wing. Mark the shape of the fuselage onto the top of the horizontal. And mark the shape of the fuselage onto the bottom of the horizontal.
  • Page 6 Instruction Manual KATANA 61 Remove the covering. Insert the fin to the fuselage. Insert the hinge into the slot. Mark the shape of the fuselage onto the vertical. Remove the covering. Insert the vertical into the fuselage. a1 = a2 Check the vertical.
  • Page 7 Instruction Manual KATANA 61 Installing the servo of the elevator: Remove the covering. Secure the elevator servo. Install the control horn. Install the nylon horn. 22mm 22mm 150mm The elevator metal pushrod. Install the metal clevis to the end of the pushrod. Install the nylon control to the end of the pushrod.

  • Page 8: Installing The Rudder Servo

    Instruction Manual KATANA 61 Adjust the length of the pushrod. Install the nylon control to the servo arm and secure it. 22mm 22mm 150mm The second elevator metal pushrod. Make the same way of the second elevator pushrod. Completed the elevator pushrod. Installing the rudder servo: Remove the covering.
  • Page 9 Instruction Manual KATANA 61 Install the control horn. Secure the control horn. 22mm 22mm 70mm Install the nylon horn. The rudder metal pushrod. Install the metal clevis to the end of the pushrod. Install the nylon control to the end of the pushrod. Attach the clevis to the nylon control horn.

  • Page 10: Installing The Landing Gear

    Instruction Manual KATANA 61 Install the nylon control to the servo arm and secure it. Installing the landing gear: The tail gear set. Install the wheel. Install the nylon keeper. Secure the tail gear. Secure the nylon keeper. Remove the covering.
  • Page 11 Instruction Manual KATANA 61 The main gear set. Install the wheel pant. Secure the main gear. Installing the fuel tank and the engine: Install the engine mount to the fuselage. Prepare the stopper as picture above. Install the stopper to the tank. Insert the throttle rod into the fuselage.
  • Page 12 Instruction Manual KATANA 61 Insert the rod to the engine. Install the engine. Install the throttle servo. Insert the rod into the connector. Cut away the throttle rod. Installing the switch, battery and receiver: Install the switch. And receiver, battery.

  • Page 13: Finishing The Model

    Instruction Manual KATANA 61 Finishing the model: Make the hole for the engine, the muffler. Secure the cowl. Install the spinner. Remove the covering. Screw Glue the wing fillets by C.A glue. Secure the canopy to the fuselage.

  • Page 14: Control Throws

    Instruction Manual KATANA 61 BALANCING CONTROL THROWS 1. It is critical that your airplane be balanced correctly. 1. We highly recommend setting up a plane using the Improper balance will cause your plane to lose control throws listed. control and crash. 2.
  • Page 15 Instruction Manual KATANA 61 I/C FLIGHT GUIDELINES Operate the control sticks on the When ready to fly, first extend the transmitter and check that the control transmitter aerial. surfaces move freely and in the ALWAYS land the model INTO the CORRECT directions.
