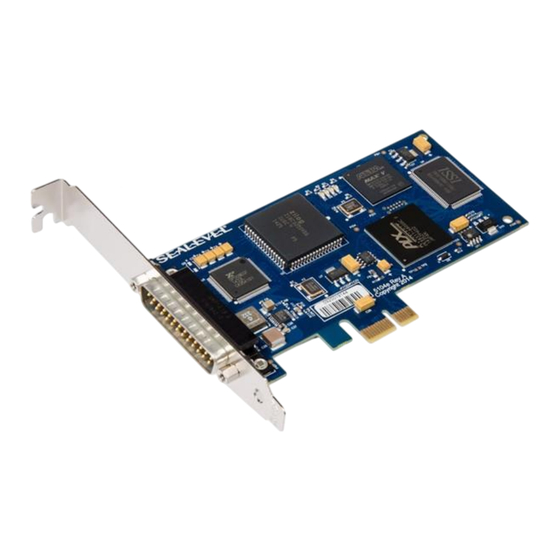

- Page 1 ACB-ULTRA.LPCIe Synchronous Serial Interface User Manual | 5104e © Sealevel Systems, Inc. 5104e & 5104es Manual | SL9273 8/2021...
-
Page 2: Table Of Contents
APPENDIX B – TROUBLESHOOTING ........................ 14 APPENDIX C – ELECTRICAL INTERFACE ......................15 APPENDIX D – MECHANICAL DRAWING ......................17 ACCESSORIES ..............................18 APPENDIX E – COMPLIANCE NOTICES ......................19 WARRANTY ................................ 20 © Sealevel Systems, Inc. 5104e & 5104es Manual | SL9273 8/2021... -
Page 3: Introduction
By utilizing the Z16C32's 32 byte FIFO buffer coupled with 256KB of on board memory, higher data rates are achieved. The ACB-ULTRA.LPCIe ships with a Low Profile PCIe bracket that will only work in a Low Profile PCIe slot. If you need a standard size PCIe bracket, please order Item# 5104eS. -
Page 4: Before You Get Started
Before You Get Started What’s Included The ACB-ULTRA.LPCIe is shipped with the following items. If any of these items are missing or damaged, please contact Sealevel for replacement. • ACB-ULTRA.LPCIe Adapter (Item# 5104e) 5104e includes low profile PCIe bracket 5104eS includes standard size PCIe bracket... -
Page 5: Installation & Configuration
Windows operating systems. Where to Get Sealevel Software The current versions of Sealevel software packages can be obtained from the Sealevel website (see following instructions). If you already have the Sealevel software, proceed to the installation section. - Page 6 7. The software is now installed, and you can proceed with the hardware installation. Upgrading to the current SeaMAC driver 1. Download the current driver using the instructions from the Where to Get Sealevel Software section above. Please take note of the destination directory for download.
-
Page 7: Technical Description
In all modes, Pin 1 has a 1K ohm resistor to GND and pin 25 has a 1K ohm resistor to +5V connection. This is useful for RS-485 biasing. If this presents a problem in your implementation, please contact Sealevel for aid in removing these or to inquire about an alternate factory configuration. - Page 8 Input Local Loopback Output DTRA DTR– Data Terminal Ready Negative Output Remote Loopback Output DTRB DTR+ Data Terminal Ready Positive Output TSETA TSET– Transmit Signal Element Timing – Output © Sealevel Systems, Inc. 5104e & 5104es Manual | SL9273 8/2021...
- Page 9 Input DTRB DTR+ Data Terminal Ready Positive Output TSETA TSET– Transmit Signal Element Timing – Output When in External Sync mode, the external sync signal is fed into DCD. © Sealevel Systems, Inc. 5104e & 5104es Manual | SL9273 8/2021...
- Page 10 Data Terminal Ready Negative Output Remote Loopback Output TSETA TSET– Transmit Signal Element Timing – Output When in External Sync mode, the external sync signal is fed into DCD. © Sealevel Systems, Inc. 5104e & 5104es Manual | SL9273 8/2021...
- Page 11 RTS to CTS and RI. Also, connect DCD to DTR and DSR. When in External Sync mode, the external sync signal is fed into DCD. Terminating these pins, if not used, will help insure you get the best performance from your adapter. © Sealevel Systems, Inc. 5104e & 5104es Manual | SL9273 8/2021...
-
Page 12: Technical Specifications
2.54 inches (6.45 cm) Manufacturing All Sealevel Systems Printed Circuit boards are built to UL 94V0 rating and are 100% electrically tested. These printed circuit boards are solder mask over bare copper or solder mask over tin nickel. © Sealevel Systems, Inc. -
Page 13: Appendix A - Handling Instructions
Keep work area free of non-conductive materials such as ordinary plastic assembly aids and Styrofoam. • Use field service tools such as cutters, screwdrivers, and vacuum cleaners, which are conductive. © Sealevel Systems, Inc. 5104e & 5104es Manual | SL9273 8/2021... -
Page 14: Appendix B - Troubleshooting
If these steps do not solve your problem, please call Sealevel Technical Support at +1864-843-4343. Our technical support is free and available Monday through Friday from 8:00 AM – 5:00 PM EST. For email support, contact support@sealevel.com. -
Page 15: Appendix C - Electrical Interface
0 (space) and -12 volts (-3 to -10 volts) denotes a binary 1 (mark). The RS-232 and the EIA/TIA-574 specification defines two type of interface circuits, Data Terminal Equipment (DTE) and Data Circuit- Terminating Equipment (DCE). The Sealevel Systems adapter is a DTE interface. RS-422 The RS 422 specification defines the electrical characteristics of balanced voltage digital interface circuits. - Page 16 In RS-530 the signals all of the modem control signals are differential, in RS-530A some of these signals are single ended. The RS 530 specification defines two types of interface circuits, Data Terminal Equipment (DTE) and Data Circuit-Terminating Equipment (DCE). The Sealevel Systems adapter is a DTE interface.
-
Page 17: Appendix D - Mechanical Drawing
Appendix D – Mechanical Drawing © Sealevel Systems, Inc. 5104e & 5104es Manual | SL9273 8/2021... -
Page 18: Accessories
Accessories Depending upon your application, you are likely to find one or more of the following items useful for interfacing the ACB-ULTRA.LPCIe to real-world signals. All items can be purchased from our website (www.sealevel.com) or by calling 864-843-4343. DB25 Female to DB25 Male Extension Cable, 72-inch Length (Item# CA104) The CA104 is a standard DB25F to DB25M serial extension cable. -
Page 19: Appendix E - Compliance Notices
Always use cabling provided with this product if possible. If no cable is provided or if an alternate cable is required, use high quality shielded cabling to maintain compliance with FCC/EMC directives. © Sealevel Systems, Inc. 5104e & 5104es Manual | SL9273 8/2021... -
Page 20: Warranty
Sealevel's commitment to providing the best I/O solutions is reflected in the Lifetime Warranty that is standard on all Sealevel manufactured I/O products. We are able to offer this warranty due to our control of manufacturing quality and the historically high reliability of our products in the field. Sealevel products are designed and manufactured at its Liberty, South Carolina facility, allowing direct control over product development, production, burn-in and testing.
