Ariesys ARP945 User's Reference Manual

Ariesys rugged portable computer user reference manual
Hide thumbs

Advertisement

Quick Links

Download this manual
ARP 945 User Reference Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the ARP945 and is the answer not in the manual?

Questions and answers

Related Manuals for Ariesys ARP945

Summary of Contents for Ariesys ARP945

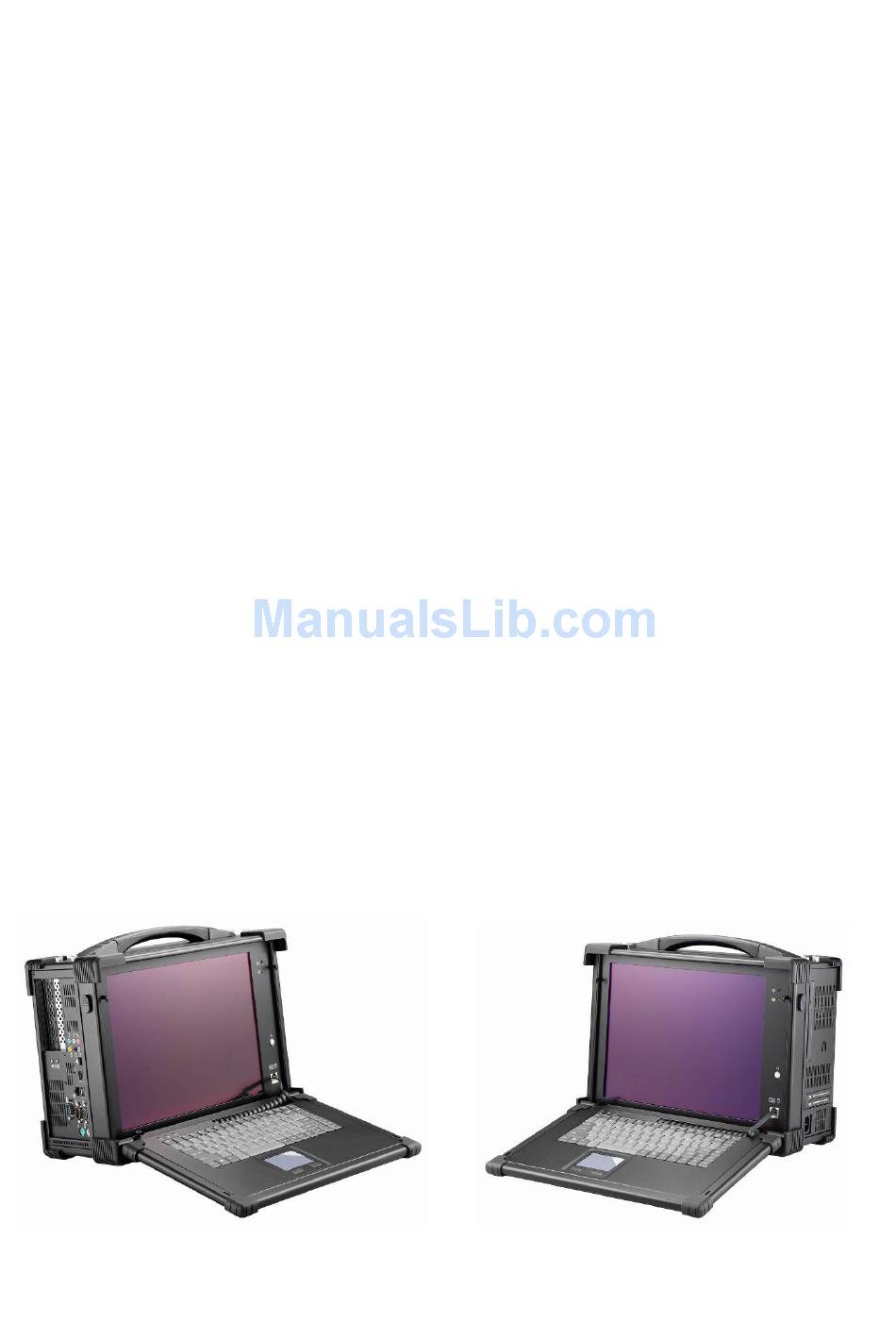

  • Page 1 ARP 945 User Reference Manual...

  • Page 2: Specifications

    Approval Options Power Supply ARP945: 250W, 100~240 VAC, Auto switch ARP945-B: 2x 95W Li-ION battery Packs (Hot-Swappable) Processor ● Intel Core 2 Duo T7500 (4M Cache, 2.20 GHz, 800 MHz FSB) Processors Intel Core 2 Duo T9400 (6M Cache, 2.53 GHz, 1066 MHz FSB) Processors Expansion slot ●...
  • Page 3 Standard Accessory Kits ARP 945 Model Accessory Kit SKD ARP945 Portable Computer system ARP 945 Carrying Case with wheels Driver CD User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels ３...
  • Page 4 ARP945 is designed for harsh environment operations; the LCD screen of the ARP945 is guarded with a specially treated anti-glare tempered glass for added protection. Every ARP945 is constructed with easy access to its expansion ports for immediate system upgrade or maintenance.
  • Page 5 2.0 Getting Started 2.0 Operation 1. Releasing Keyboard from main unit by pushing up the 2 taps located on both side of the computer to release the locking mechanism, and then pull out the keyboard. Lift up Lift up Press to release 2.
  • Page 6 4. You can flip the 2 feet located underneath the computer outward to help create an angle for the computer for viewing comfort. Power LED light 2 feet 5. Connect the power cable outlet into the power supply unit Insert Power Cord 6.
  • Page 7 7. Access the available expansion slots on the left side of the computer. 8. ARP945 provides the system I/O port, include: Audio, 4x USB, 2x COM, 2x Gigabit LAN, VGA, PS2 KB/MS (Keyboard, mouse and Audio have connection internally pre-connected)
  • Page 8 3.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Unscrew the top 4 thumb screws to release the top computer cover. Unscrew Unscrew Unscrew Unscrew 2. Remove the top cover, and 2x card stabilizer bars, install add-in card into the slot.
  • Page 9 4.0 Battery Pack (ARP945-B) 1. Battery Pack The lithium ion battery pack is on the right side of the computer. 2. AC Operation / Battery Charging Insert the adapter cord into the Power DC jack for recharging Power DC jack 3.
  • Page 10 4. Replacing the battery 4.1 Release the thumb screw of the battery cover Thumb screw 4.2 Pull out the battery connector from the slot １０...

  • Page 11: Software Installation

    5.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system. Available medium from USB or download can also be possible. DOS Boot up: DOS boot up requires you to have a version of the DOS installed on hard disk drive or floppy.

  • Page 12: Troubleshooting

    6.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARP. 3. Are all the items seated properly? 4.

This manual is also suitable for:

Arp945-b
