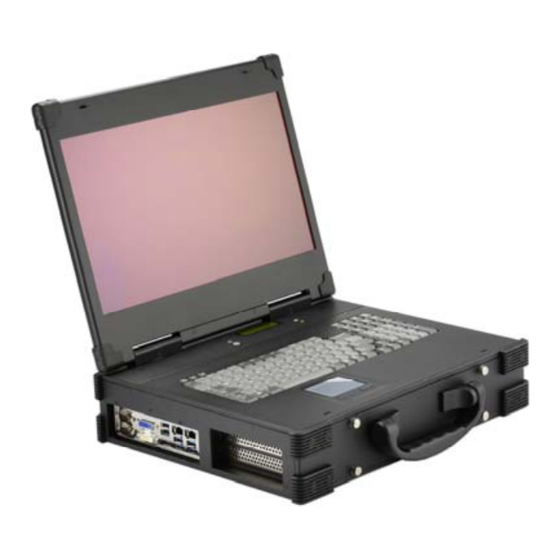

Ariesys ARL 980 User's Reference Manual
  1. Manuals
  2. Brands
  3. Ariesys Manuals
  4. Laptop
  5. ARL 980
  6. User's reference manual

Ariesys ARL 980 User's Reference Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ARL 980/ ARL980-B User Reference Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARL 980 and is the answer not in the manual?

Questions and answers

Related Manuals for Ariesys ARL 980

Summary of Contents for Ariesys ARL 980

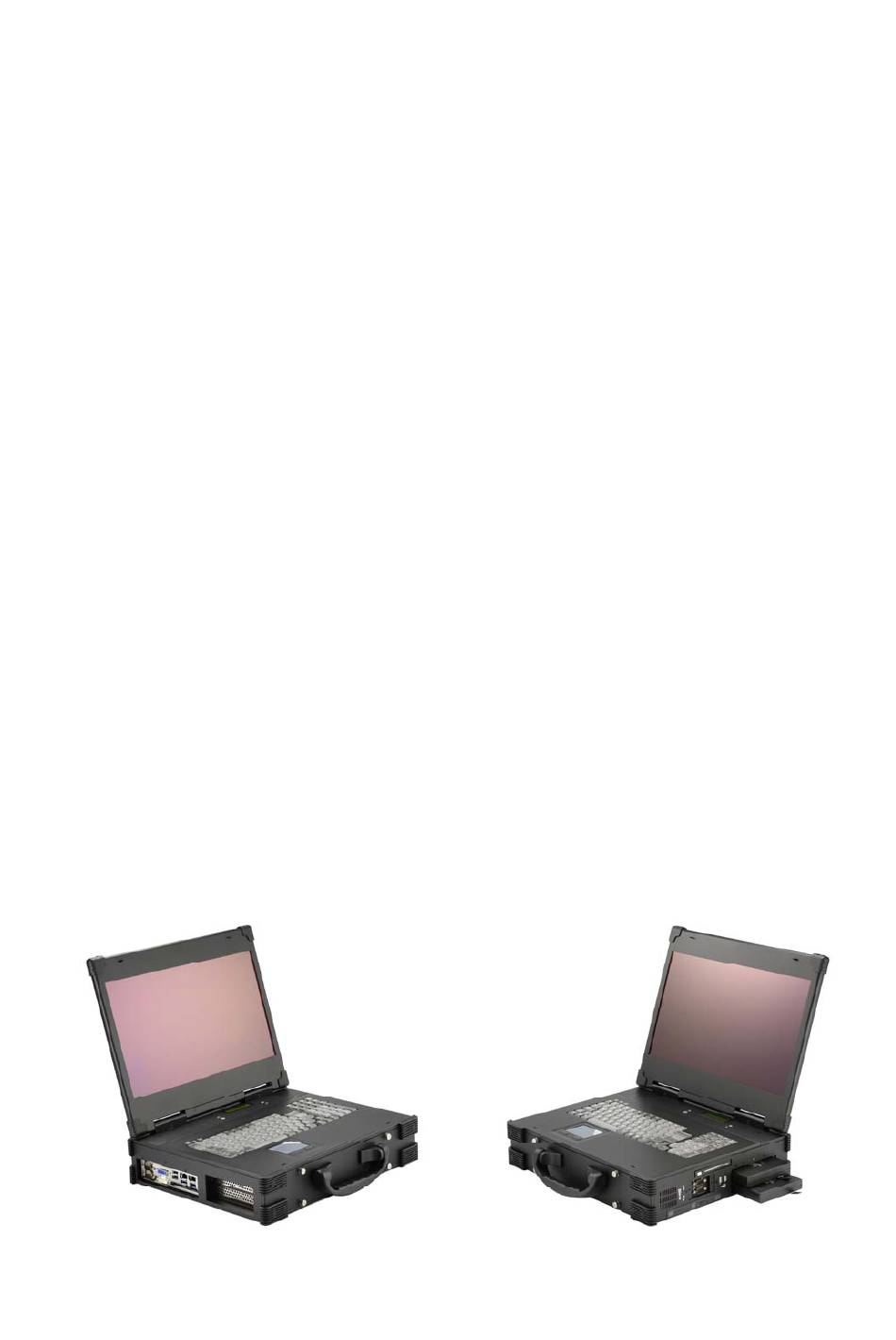

  • Page 1 ARL 980/ ARL980-B User Reference Manual...
  • Page 2 Specifications Model No ARL980 ARL980-B Intel Core i5-4400E, 2.70GHz Processors (Option: Intel Core i7-4700EQ, 2.4 GHz) Intel QM87 PCH Mobile Platform Controller Hub Chipset 1 PCI-E (x16), 1 PCI-E (x1) Full-length expansion slots Slot Option: 2 PCI full-length expansion slots 17.3”...
  • Page 3 Standard Accessory Kits ARL980 / ARL980-B Model Accessory Kit ARL980 Portable Computer system ARL980 Carrying Case with wheels Driver CD User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels ３...
  • Page 4 1.0 Introduction Version: 2016.09 ARL980/ ARL980-B features: ● All-in-one design rugged laptop ● Rugged Aluminum Construction with shock absorbing rubber corners ● Compact Size Lightweight Design ● Built-in 17.3" TFT LCD display, 1920x 1080 with anti-reflection tempered glass ● Intel QM87 (Gen4) chipset, supports Intel core i7/ i5/ i3 Processors. ●...
  • Page 5 2.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Unscrew the 4 thumb screws to remove the cover. Unscrew Unscrew Unscrew Unscrew 2. Install user’s add-in cards. A: 1PCI-E (x16), 1PCI-E (x1) full-length expansion slot B: 2 PCI full-length expansion slots ５...
  • Page 6 3.0 Battery Pack (ARL980-B) 1. Battery Pack The lithium ion battery pack is on the right side of the computer. 2. AC Operation / Battery Charging Insert the adapter cord into the Power DC jack for recharging Power DC jack 3.
  • Page 7 4. Replacing the battery 4.1 Release the thumb screw of the battery cover Thumb screw 4.2 Pull out the battery connector from the slot 4.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system.
  • Page 8 5.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARL. 3. Are all the items seated properly? 4.

This manual is also suitable for:

Arl980-b
