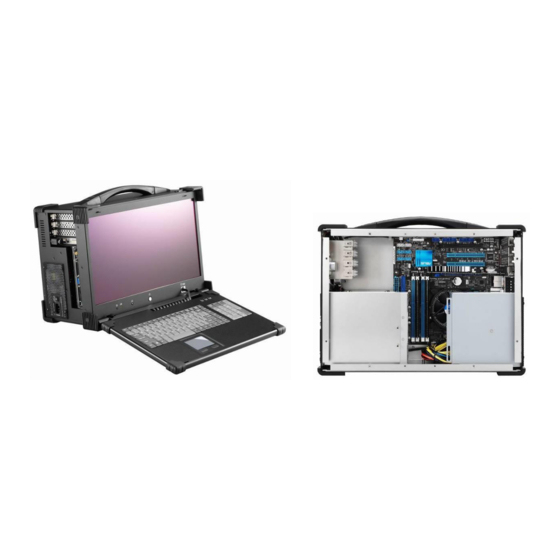

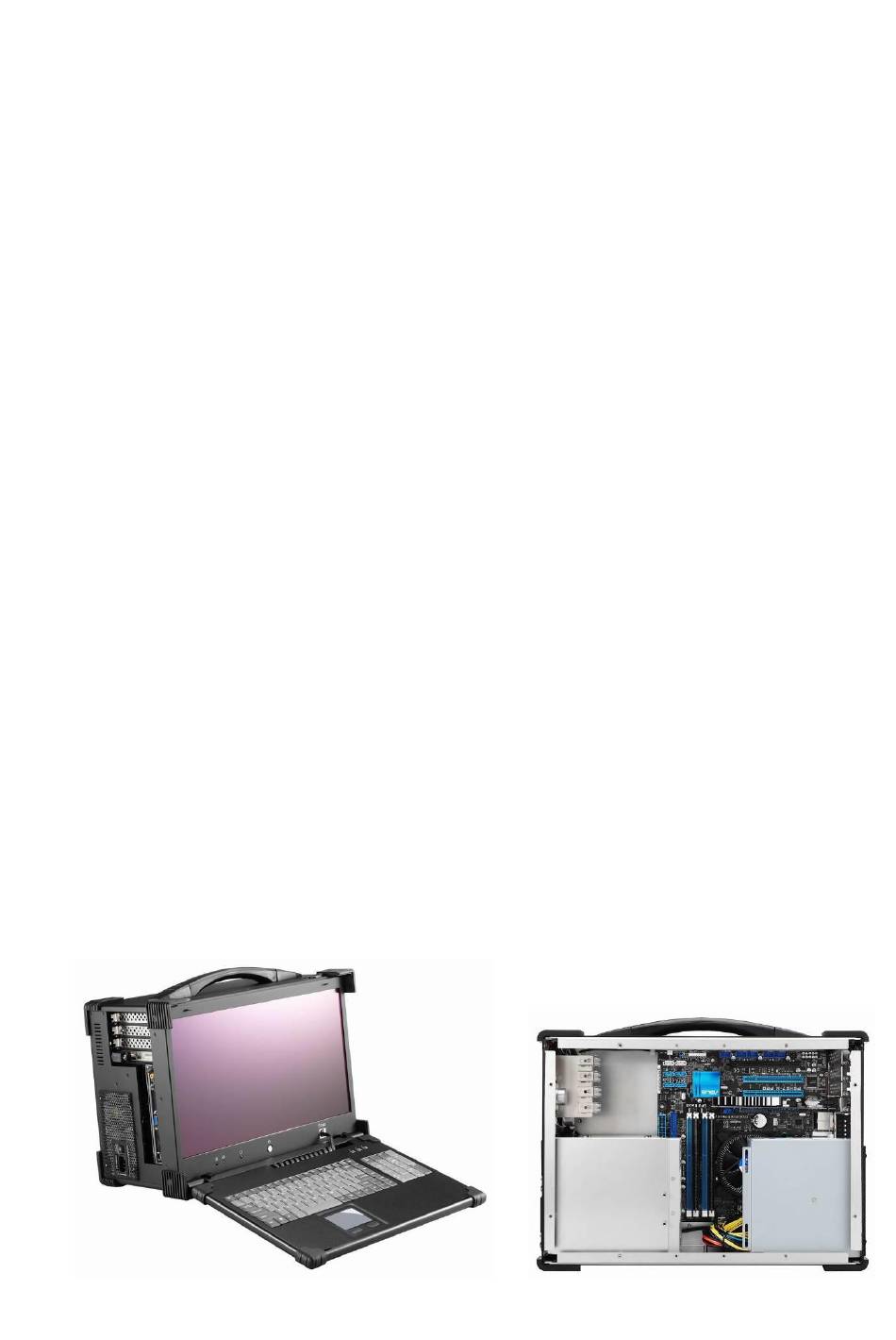

Specifications Model No ARP640-P Motherboard Support Micro ATX Motherboard Slots Offer 4 full length expansion slots (338.5mm) Support 2x 5.25”, slim, 1x 3.5” Drive bay Display 17.3" FHD LCD display, 1920x 1080, LED backlight Anti-reflection tempered strengthen glass AD conversion board, DVI interface (Option VGA) KB/MS 104-key industrial multi-languages Keyboard/ touchpad Operating Life of Keys: 8 million cycles...
Page 3
Standard Accessory Kits ARP 640-P Model Accessory Kit SKD ARP640-P Portable Computer Chassis ARP640-P Carrying Case with wheels User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels 3...
Page 4
1.0 Introduction ARP 640-P features: ● Rugged Construction with shock absorbing rubber corners ● Built-in 17.3” FHD LCD display, 1920x 1080, LED backlight, 300 nits, 262K colors, Anti-reflection tempered glass ● Designed for Micro ATX Motherboard ● Offer 4 full length slots expansion capability ●...
Page 5
2.0 Getting Started 2.0 Operation 1. Releasing Keyboard from main unit by pushing the 2 taps located on top side of the chassis to release the locking mechanism, and then pull out the keyboard. Press to release 2. You have the option of leaving the keyboard attached to the chassis or they can be release independently from the chassis by pushing the two levers inward to release the lock.
Page 6
4. You can flip the 2 feet located underneath the chassis outward to help create an angle for the chassis for viewing comfort. Power LED light 2 feet 5. Connect the power cable outlet into the power supply unit Insert Power Cord 6.
Page 7
7. Access the 4 full-length expansion slots on the left side of the chassis. 8. ARP640-P provides 2x 5.25”, 1x slim, 1x 3.5” drive bays 9. Full function keyboard and touchpad surface act as input for the system. Keyboard LED Touchpad + Button 7...
Page 8
3.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Open Back Cover Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 2. Remove the Card stabilizer bar Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 8...
Page 9
3. Remove the drive bay 3.1 Remove the right-side cover Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 3.2 Remove the drive bay Unscrew Unscrew 3.3 Slide and move out the drive bay slowly Slide & Move out 9...
4. Remove the Power Supply 4.1 Remove the left side cover Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 4.2 Remove the fan filter Unscrew Unscrew Unscrew Unscrew 4.3 Slide and move out the PSU slowly Unscrew Unscrew Slide & Move out Unscrew Unscrew 10...
Page 11
5. Install the proper stand-off matching the standard ATX Motherboard into the chassis and correct I/O plate supplied by board manufacturer and secure it the motherboard onto chassis. 6. Install your add-in card into the appropriate slot 11...
Page 12
7. Install the 3.5” device and slim DVD-RW into drive bay housing 3.5” HDD DVD-RW 8. Install the drive bay and power supply into chassis Drive bay Power Supply 9. Remount the card stabilizer bar and put the rear cover back Screw Screw Screw...
4.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system. Available medium from USB or download can also be possible. DOS Boot up: DOS boot up requires you to have a version of the DOS installed on hard disk drive or floppy.
5.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARP. 3. Are all the items seated properly? 4.
