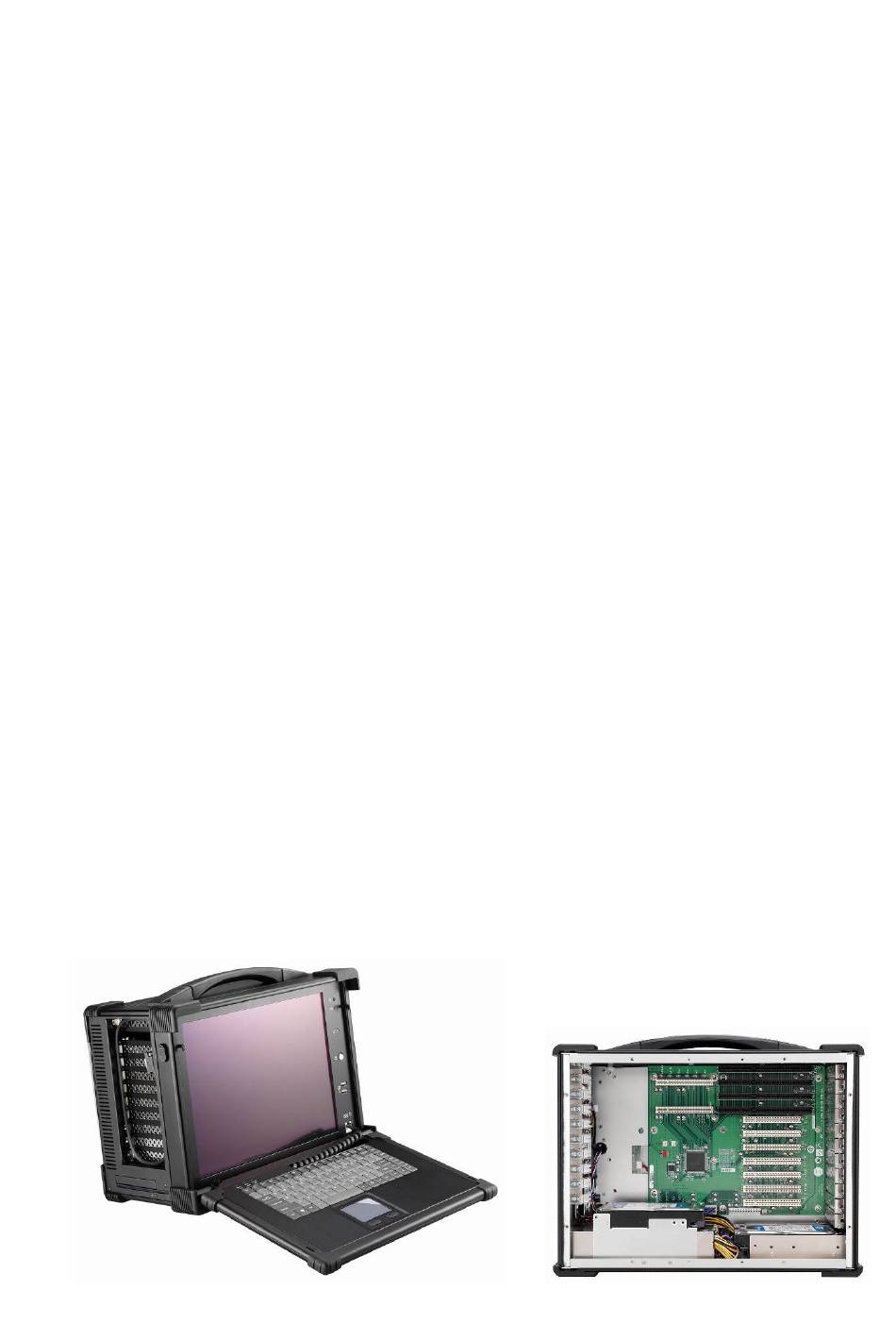

- Page 1 ARP 650 User Reference Manual...
-
Page 2: Specifications
Specifications Model No ARP650 Motherboard Support SBC with Backplane Slots Offer 11 expansion slots Drive bay 1x slim DVD-RW, 2x 3.5” drive bay Display 15" TFT LCD Monitor, 1024x 768 Anti-reflection tempered strengthen glass ST GM5621 AD conversion board, VGA interface (Option DVI) KB/MS Industrial multi-languages Keyboard/ touchpad Operating Life of Keys: 8 million cycles... - Page 3 Standard Accessory Kits ARP 650 Model Accessory Kit SKD ARP650 Portable Computer Chassis ARP 650 Carrying Case with wheels User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels ３...

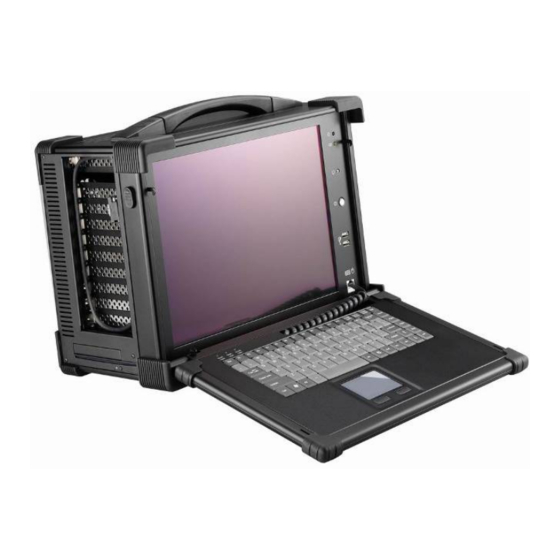

- Page 4 1.0 Introduction Version: 2010.12 ARP 650 features: ● Rugged Aluminum Construction with shock absorbing rubber corners ● Built-in 15” LCD display with tempered glass, 1024x 768 ● Designed for SBC with Backplane ● Offer 11 full length slots expansion capability ●...
- Page 5 2.0 Getting Started 2.0 Operation 1. Releasing Keyboard from main unit by pushing up the 2 taps located on both side of the chassis to release the locking mechanism, and then pull out the keyboard. Lift up Press to release Lift up 2.
- Page 6 4. You can flip the 2 feet located underneath the chassis outward to help create an angle for the chassis for viewing comfort. 2 feet 5. Connect the power cable outlet into the power supply unit Insert Power Cord 6. Press the power switch located on the front panel of the chassis to power up the unit. There have indicator LED lights for Power and HDD activity, 2x USB in the front Power LED light HDD LED light...
- Page 7 7. Access the available expansion slots on the left side of the chassis. ARP650 provides 1x slim DVD-RW, 1x 3.5” and 1x internal 3.5” drive bay Internal 3.5” HDD 3.5” Drive Bay 3.5” Drive Bay Slim DVD-RW 8. Keyboard and touchpad surface act as input for the system. Keyboard LED Touchpad + Button ７...
- Page 8 3.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Open Back Cover Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 2. Remove the 2x Card stabilizer bars Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew ８...
- Page 9 3. Install the mounting stand-off mount according to backplane and then insert and secure the backplane onto the chassis. 4. Install your CPU card into the passive backplane slot and secure it. Connect all the power cable to the backplane and CPU card. 5.
- Page 10 6. Remove the drive bay 6.1 Unscrew the 4x bottom screws Unscrew Unscrew Unscrew Unscrew 6.2 Slide and move out the drive bay slowly Slide and Move out 6.3 Install the 3.5” device and slim DVD-RW into drive bay housing, and then install into chassis １０...
- Page 11 7. Install the internal 3.5” HDD 7.1 The internal 3.5” HDD can be installed by using the detachable drive tray. Install the corner shock absorbing rubber holder onto the tray. Rubber Rubber Rubber Rubber Rubber Rubber 7.2 Fix the round screws onto 1 side (3 screws) of the HDD Round screw Round screw Round screw...
- Page 12 7.4 Push the HDD down and install the round screw into the outer side. Screw Screw Screw 8. Remount the card stabilizer bars and put the rear cover back Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw...
-
Page 13: Software Installation
4.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system. Available medium from USB or download can also be possible. DOS Boot up: DOS boot up requires you to have a version of the DOS installed on hard disk drive or floppy. -
Page 14: Troubleshooting
5.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARP. 3. Are all the items seated properly? 4.
