- Page 1 ARP980/ ARP980-B User Reference Manual...
-
Page 2: Specifications
10-500Hz (1.12 Grms) Vibration CE, FCC, RoHS Approval Options Power Supply ARP980: 400W, 100~240 VAC, Auto switch ARP980-B: 2x 95W Li-ION battery Packs (Hot-Swappable) Processor ● Intel Core i5-4400E, 2.70 GHz Processors Intel Core i7-4700EQ, 2.40 GHz Processors Expansion slot ●... - Page 3 Standard Accessory Kits ARP 980 Model Accessory Kit SKD ARP980 Portable Computer system ARP 980 Carrying Case with wheels Driver CD User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels ３...

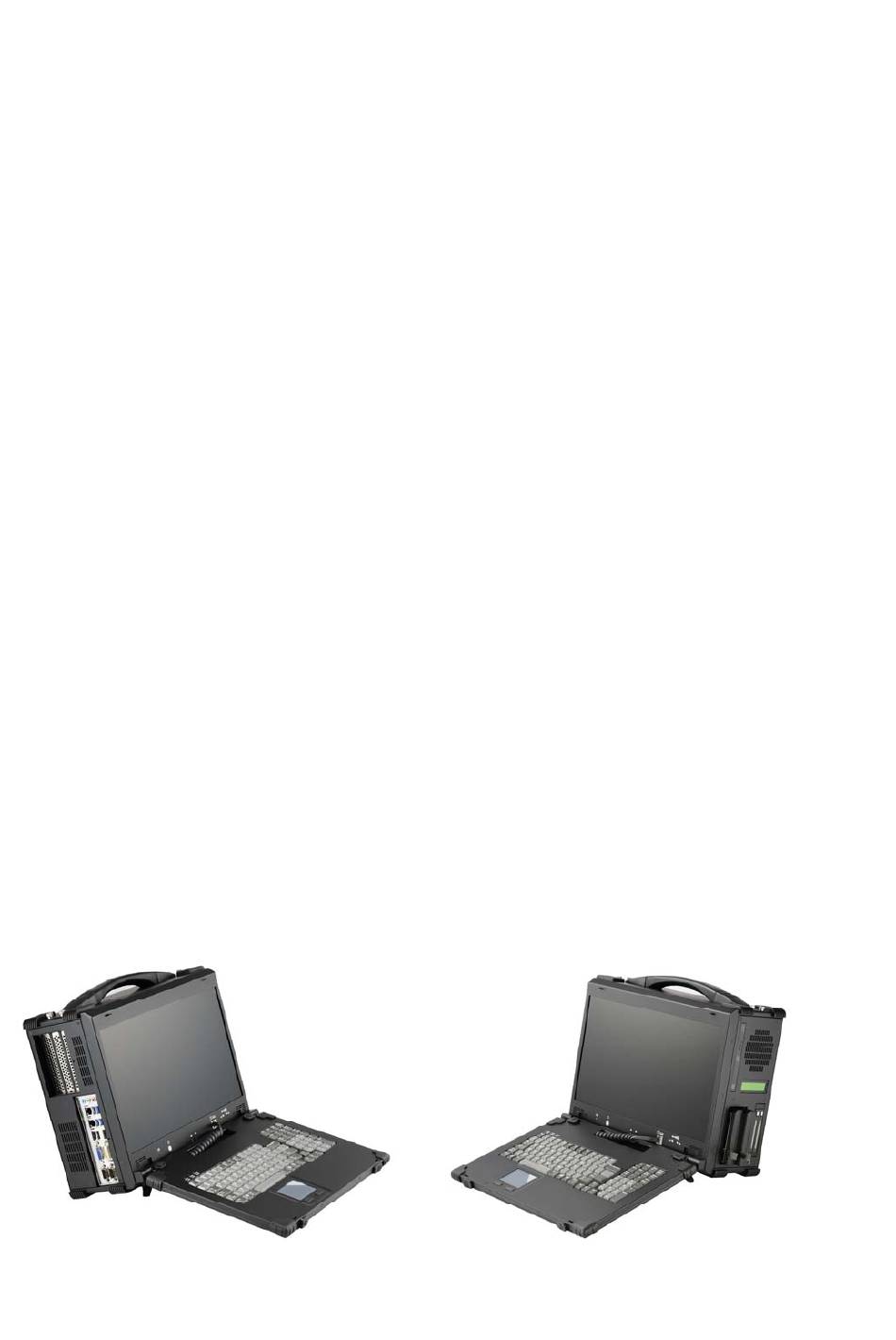

- Page 4 ● Carrying case to manage portable PC with ease The ARP980 is a light weights portable systems, ARP980-B with integrated battery packs, are robust field portable with 2x PCI, 1PCI-E (x16) or option: 3x PCI-E (x16, x1, x1) or option: 3x PCI-E (x8, x8, x1) slots platform built using heavy duty metal to provide tough, go-anywhere unit ideally suitable for harsh/severe environments and mission critical applications.
-
Page 5: Getting Started
2.0 Getting Started 2.0 Operation 1. Releasing Keyboard by pushing the 2 taps located on top side of the chassis to release the locking mechanism, and then pull out the keyboard. Press to release Press to release 2. You have the option of leaving the keyboard attached to the chassis or they can be release independently from the chassis by pushing the two levers inward to release the lock. - Page 6 4. You can flip the 2 feet located underneath the computer outward to help create an angle for the computer for viewing comfort. 2 feet 5. Connect the power cable outlet into the AC power supply unit or insert the adapter cord into power DC jack for recharging Insert adapter cord Insert Power Cord...
- Page 7 7. Access the available expansion slots on the left side of the computer. ARP980 provides the system I/O port, include: 2x DB9 for COM1, COM2, DVI-D + DVI-I connector, 4x USB 3.0 connector, 2x USB 2.0 connector, DP connector, 2x Gbit LAN RJ-45, RCA Jack 3x1...
- Page 8 3.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Unscrew the top 4 thumb screws to release the top computer cover. Unscrew Unscrew Unscrew Unscrew 2. Remove the top cover, and 2x card stabilizer bars, install add-in card into the slot.
- Page 9 4.0 Battery Pack (ARP980-B) 1. Battery Pack The lithium ion battery pack is on the right side of the computer. 2. AC Operation / Battery Charging Insert the adapter cord into the Power DC jack for recharging Power DC jack 3.
- Page 10 4. Replacing the battery 4.1 Release the thumb screw of the battery cover Thumb screw 4.2 Pull out the battery connector from the slot and replacing new batteries into slots １０...
-
Page 11: Software Installation
5.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system. Available medium from USB or download can also be possible. DOS Boot up: DOS boot up requires you to have a version of the DOS installed on hard disk drive or floppy. -
Page 12: Troubleshooting
6.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARP. 3. Are all the items seated properly? 4.
