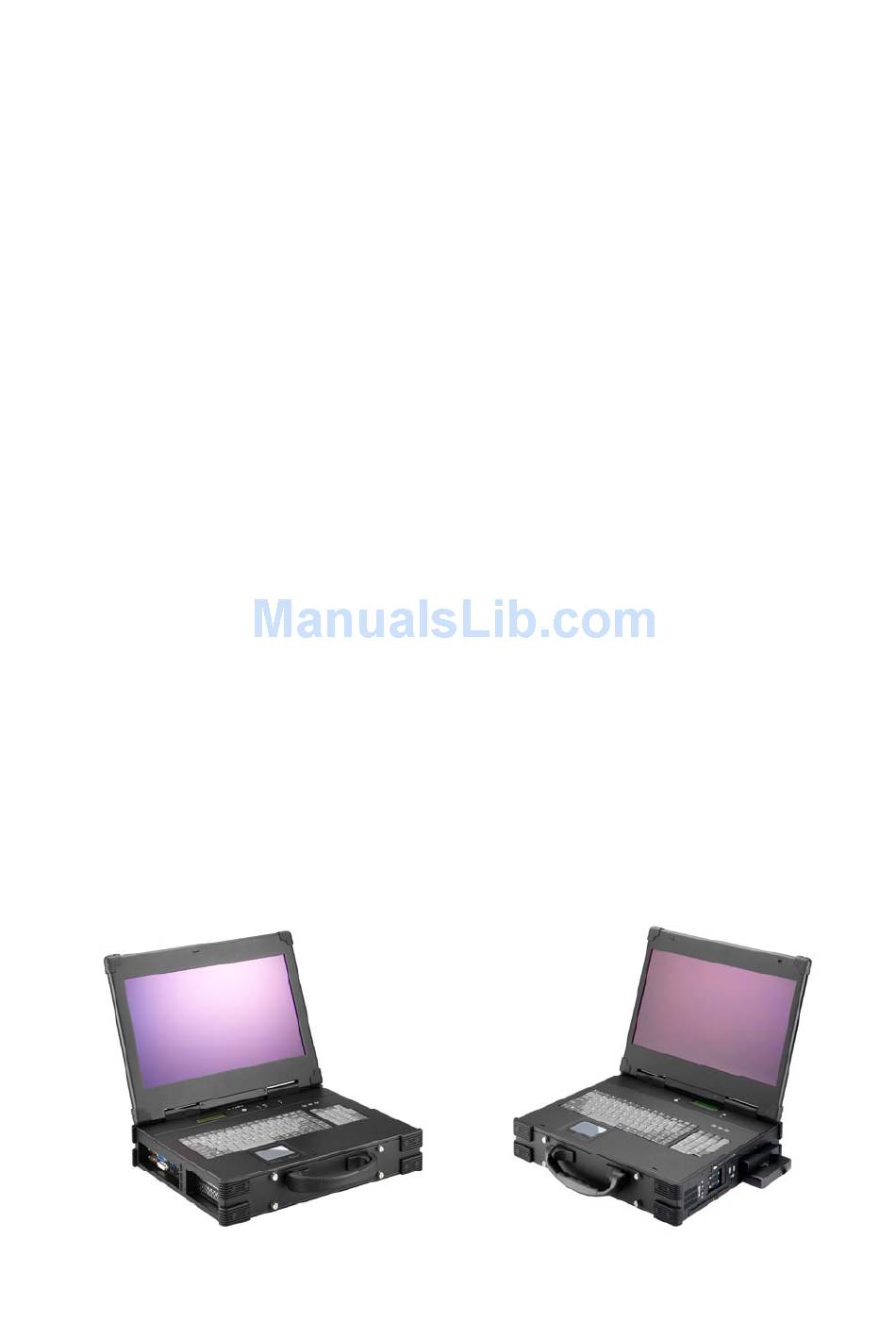

  • Page 1 ARL 970/ ARL970-B User Reference Manual...

  • Page 2: Environmental Factors

    CE, FCC, RoHS Approval Options Power Supply ARL970: 250W, 100~240 VAC, Auto switch ARL970-B: 2x 95W Li-ION battery Packs (Hot-Swappable) Processor ● Intel Core i5-2510E (3M Cache, 2.50 GHz) Processors Intel Core i7-2710QE (6M Cache, 2.10 GHz) Processors Expansion slot ●...
  • Page 3 Standard Accessory Kits ARL970 / ARL970-B Model Accessory Kit SKD ARL970 Portable Computer system ARL970 Carrying Case with wheels Driver CD User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels ３...
  • Page 4 Gigabit Ethernet, USB 3.0, Serial ports and output feature both Display Port and DVI. Dual high capacity Li-ion hot-swappable battery totaling 190WHr makes the ARL970-B ideal for critical application. It also can operate with 100W AC adapter for AC operation and recharging, and the LCD panel for battery capacity shows battery array fuel gauge, power, current, charge/ discharge state, time to fully charged and time to empty.
  • Page 5 2.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Unscrew the 4 thumb screws to remove the cover. Unscrew Unscrew Unscrew Unscrew 2. Install user’s add-in cards. A: 1PCI-E (x16), 1PCI-E (x1) full-length expansion slot B: 2 PCI full-length expansion slots ５...
  • Page 6 3.0 Battery Pack (ARL970-B) 1. Battery Pack The lithium ion battery pack is on the right side of the computer. 2. AC Operation / Battery Charging Insert the adapter cord into the Power DC jack for recharging Power DC jack 3.

  • Page 7: Software Installation

    4. Replacing the battery 4.1 Release the thumb screw of the battery cover Thumb screw 4.2 Pull out the battery connector from the slot 4.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system.

  • Page 8: Troubleshooting

    5.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARL. 3. Are all the items seated properly? 4.
