Ariesys ARL 945 User's Reference Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

ARL 945/ ARL945-B User Reference Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARL 945 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ariesys ARL 945

Summary of Contents for Ariesys ARL 945

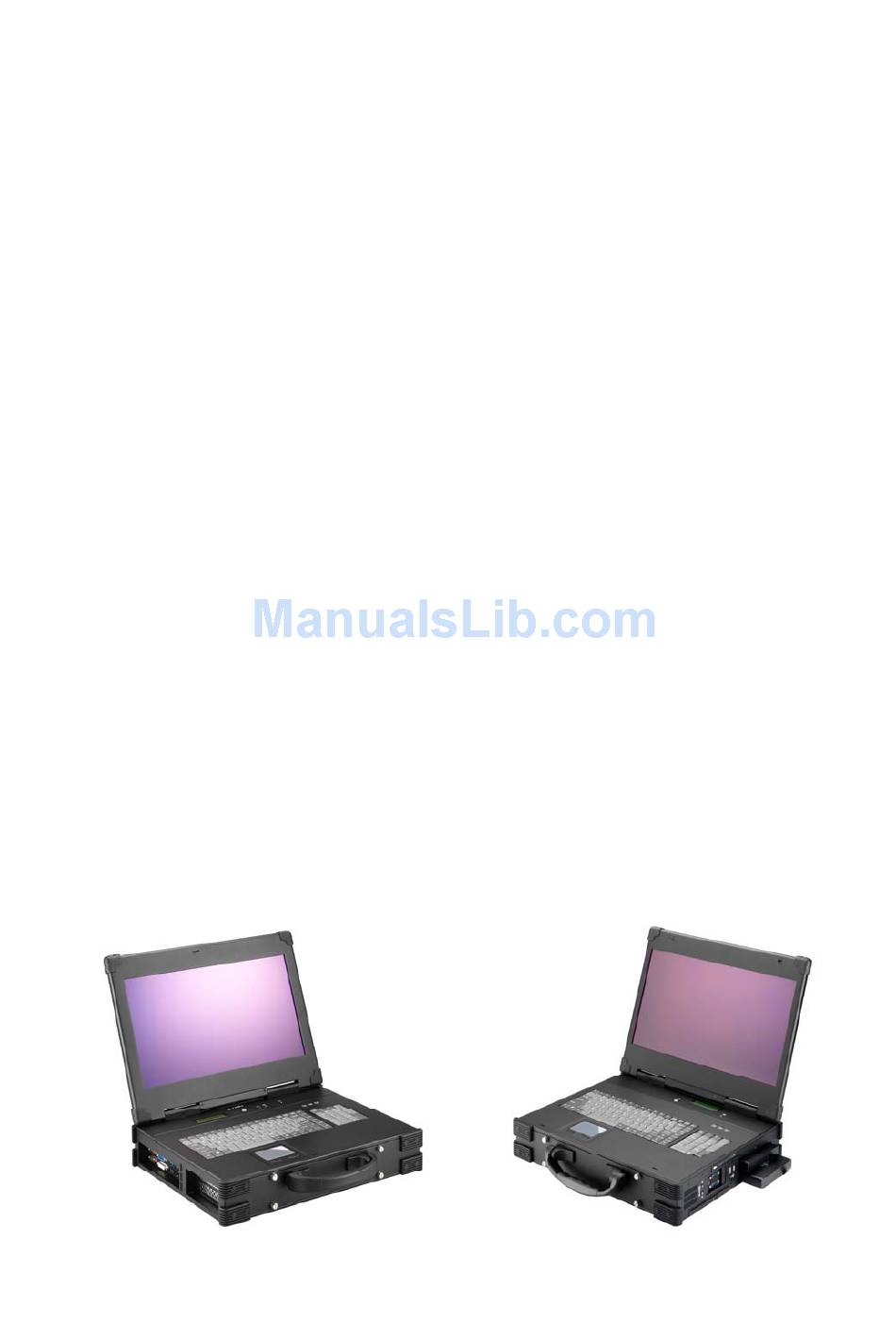

  • Page 1 ARL 945/ ARL945-B User Reference Manual...

  • Page 2: Specifications

    Specifications Model No ARL945 ARL945-B Intel Core 2 Duo T7500, 2.2GHz Processors (Option: Intel Core 2 Duo T9400, 2.53 GHz) Intel Gm45 Chipset + ICH9M Chipset 2 PCI full-length expansion slots Slot 17.3” TFT LCD Monitor, 1920x 1080, 262K colors, Display Anti-reflection tempered strengthen glass LVDS, GM45 chipset built-in...
  • Page 3 Standard Accessory Kits ARL945 / ARL945-B Model Accessory Kit SKD ARL945 Portable Computer system ARL945 Carrying Case with wheels Driver CD User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels ３...
  • Page 4 1.0 Introduction Version: 2012.02 ARL945/ ARL945-B features: ● All-in-one design rugged laptop ● Rugged Aluminum Construction with shock absorbing rubber corners ● Compact Size Lightweight Design ● Built-in 17.3" TFT LCD display, 1920x 1080 with anti-reflection tempered glass ● 250W PSU or 2x 95W Li-ion battery packs, up to 4 hours battery life ●...
  • Page 5 2.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Unscrew the 4 thumb screws to remove the cover. Unscrew Unscrew Unscrew Unscrew 2. Remove the stabilizer bar Unscrew Unscrew Unscrew Unscrew 3. Install the add-in card. ５...
  • Page 6 3.0 Battery Pack (ARL945-B) 1. Battery Pack The lithium ion battery pack is on the right side of the computer. 2. AC Operation / Battery Charging Insert the adapter cord into the Power DC jack for recharging Power DC jack 3.

  • Page 7: Software Installation

    4. Replacing the battery 4.1 Release the thumb screw of the battery cover Thumb screw 4.2 Pull out the battery connector from the slot 4.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system.

  • Page 8: Troubleshooting

    5.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARL. 3. Are all the items seated properly? 4.

This manual is also suitable for:

Arl945-b
