- Page 1 ARP 890 User Reference Manual...
-
Page 2: Specifications
Specifications Model No ARP890 Support ATX, EATX Motherboard Motherboard Offer 7 full length expansion slots Slots 7x 5.25”, 1x 3.5” hidden, slim DVD-RW Drive bay 23.8" FHD LCD display, 1920x 1080, LED backlight Display Option: 23.8”, 3840x 2160 resolution AD conversion board, DVI interface (Option VGA) Industrial multi-languages Keyboard/ touchpad KB/MS Keyboard Layout: CH, FR, GR, KR, RU, UK, US... - Page 3 Standard Accessory Kits ARP 890 Model Accessory Kit SKD ARP890 Portable Computer Chassis ARP890 Carrying Case with wheels User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels ３...

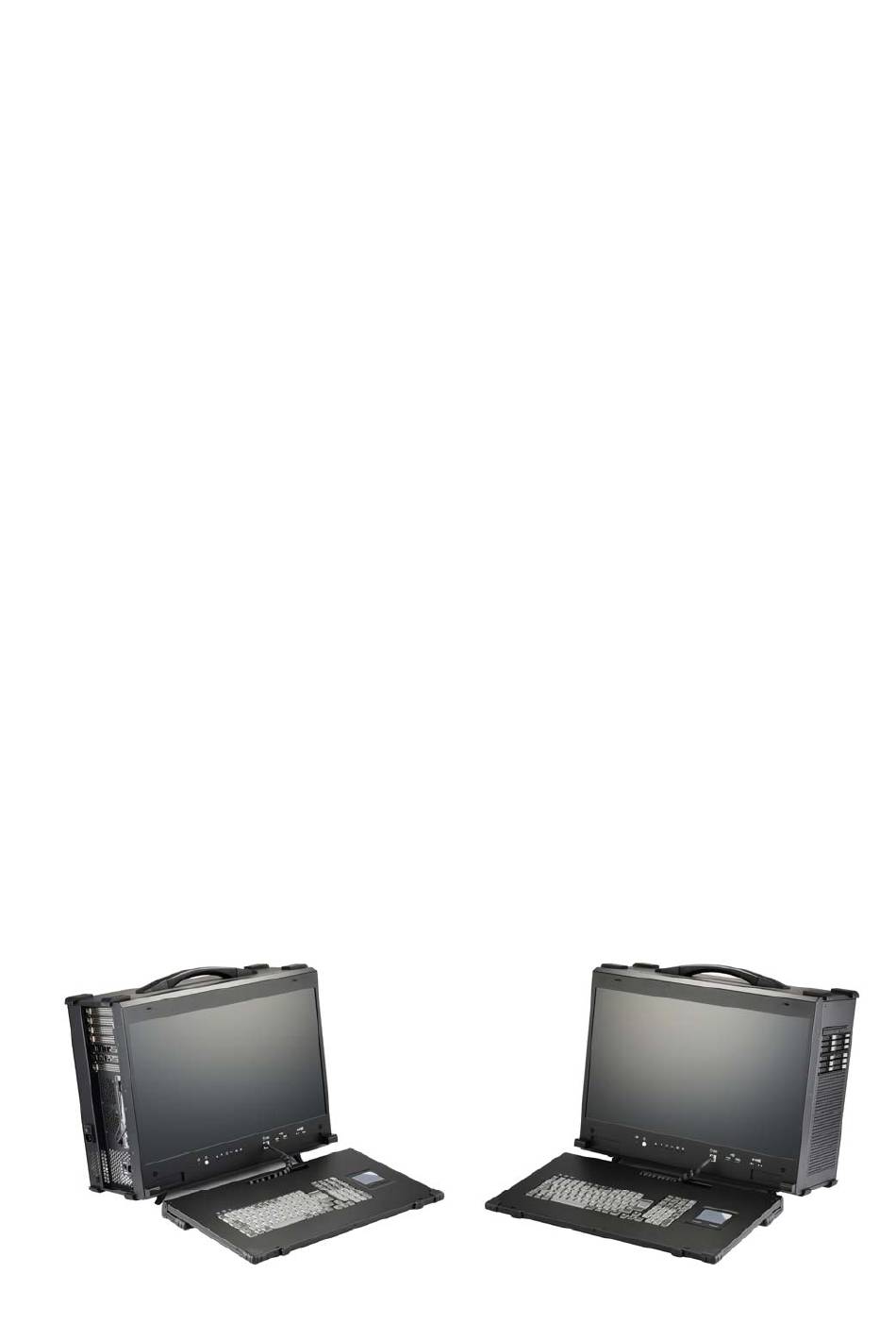

- Page 4 1.0 Introduction Version: 2017.7 ARP 890 features: ● Rugged Construction with shock absorbing rubber corners ● Built-in 23.8” FHD LCD display, 1920x 1080, LED backlight Option: 23.8”, 3840x 2160 resolution ● Designed for ATX, EATX Motherboard ● Offer 7 full length slots expansion capability ●...
-
Page 5: Getting Started
2.0 Getting Started 2.0 Operation 1. Releasing Keyboard by pushing the 2 taps located on top side of the chassis to release the locking mechanism, and then pull out the keyboard. Press to release Press to release 2. You have the option of leaving the keyboard attached to the chassis or they can be release independently from the chassis by pushing the two levers inward to release the lock. - Page 6 4. You can flip the 2 feet located underneath the chassis outward to help create an angle for the chassis for viewing comfort. 2 feet 5. Connect the power cable outlet into the power supply unit Insert Power Cord 6. Press the power switch located on the front panel of the chassis to power up the unit. There is an indicator LED light for HDD activity, and 2x USB ports in the front.
- Page 7 7. Access the 7 full-length expansion slots on the left side of the chassis. 8. ARP890 provides 7x 5.25”, 1x 3.5” hidden, and 1x slim DVD-RW drive bays 1x 3.5” hidden Slim DVD-RW 7x 5.25” drive bays 9. Full function keyboard and touchpad surface act as input for the system. Keyboard LED Touchpad + Button ７...
- Page 8 3.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Open Back Cover Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 2. Remove the Card stabilizer bar Unscrew Unscrew Unscrew Unscrew...
- Page 9 3. Install the proper stand-off matching the ATX/ EATX Motherboard into the chassis and correct I/O plate supplied by board manufacturer and secure it the motherboard onto chassis. ９...
- Page 10 4. Install your add-in card on the available connection interface, and inserted completely and tight. 5. Remove the drive bays 5.1 Remove the right side cover 5.2 Remove the drive bay Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew １０...
- Page 11 5.3 Slide and move out the drive bay slowly Slide & Move out 6. Install 5.25”, 3.5” devices and slim DVD-RW into drive bay housing 1x 3.5” hidden Slim DVD-RW 7x 5.25” drive bays 7. Install the drive bay and into chassis Drive bay １１...
-
Page 12: Software Installation
8. Remount the card stabilizer bar and put the rear cover back Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw Screw 4.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system. -
Page 13: Troubleshooting
5.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARP. 3. Are all the items seated properly? 4.
