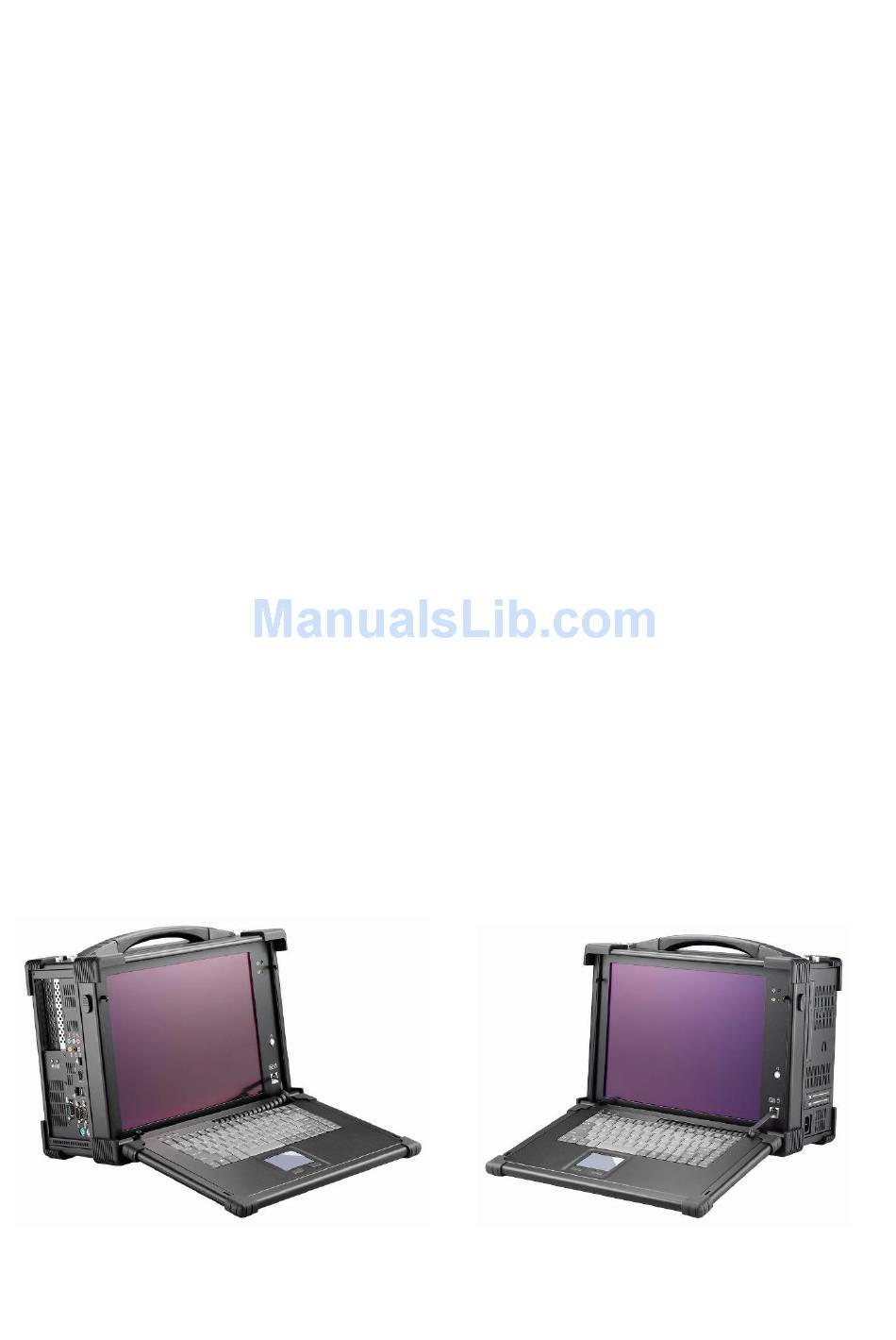

  • Page 1 ARP 970 User Reference Manual...

  • Page 2: Specifications

    Specifications Model No ARP970 ARP970-B Intel Core i5-2510E, 3M Cache, 2.50GHz Processors (Option: Intel Core i7-2710QE, 6M Cache, 2.10 GHz) Intel QM77 Express Chipset Chipset 3x Full-Size PCI-E (x8) slots Slot Option: 3x full-size PCI-X slots/ 2PCI, 1PCI-E (x16) slots 15"...
  • Page 3 Standard Accessory Kits ARP 970 Model Accessory Kit SKD ARP970 Portable Computer system ARP 970 Carrying Case with wheels Driver CD User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels ３...
  • Page 4 1.0 Introduction Version: 2012.09 ARP 970 features: ● All-in-one design rugged portable computer ● Rugged Aluminum Construction with shock absorbing rubber corners ● Compact Size Lightweight Design ● Built-in 15" TFT LCD display, 1024x 768 with tempered glass ● Intel QM77 (Gen3), support Sandy bridge (Gen2) and Ivy bridge (Gen3) core i7/ i5/ i3 Processors ●...
  • Page 5 2.0 Getting Started 2.0 Operation 1. Releasing Keyboard from main unit by pushing up the 2 taps located on both side of the computer to release the locking mechanism, and then pull out the keyboard. Lift up Lift up Press to release 2.
  • Page 6 4. You can flip the 2 feet located underneath the computer outward to help create an angle for the computer for viewing comfort. Power LED light 2 feet 5. Connect the power cable outlet into the power supply unit Insert Power Cord 6.
  • Page 7 7. Access the available expansion slots on the left side of the computer. ARP956 provides the system I/O port, include: 2x DB9 for COM1, COM2, DVI-D + DVI-I connector, 2x USB 3.0 connector, 4x USB 2.0 connector, DP connector, 2x Gbit LAN RJ-45, RCA Jack 3x1 for HD audio 8.
  • Page 8 3.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Unscrew the top 4 thumb screws to release the top computer cover. Unscrew Unscrew Unscrew Unscrew 2. Remove the top cover, and 2x card stabilizer bars, install add-in card into the slot.
  • Page 9 4.0 Battery Pack (ARP970-B) 1. Battery Pack The lithium ion battery pack is on the right side of the computer. 2. AC Operation / Battery Charging Insert the adapter cord into the Power DC jack for recharging Power DC jack 3.
  • Page 10 4. Replacing the battery 4.1 Release the thumb screw of the battery cover Thumb screw 4.2 Pull out the battery connector from the slot １０...

  • Page 11: Software Installation

    5.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system. Available medium from USB or download can also be possible. DOS Boot up: DOS boot up requires you to have a version of the DOS installed on hard disk drive or floppy.

  • Page 12: Troubleshooting

    6.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARP. 3. Are all the items seated properly? 4.

This manual is also suitable for:

Arp970-b
