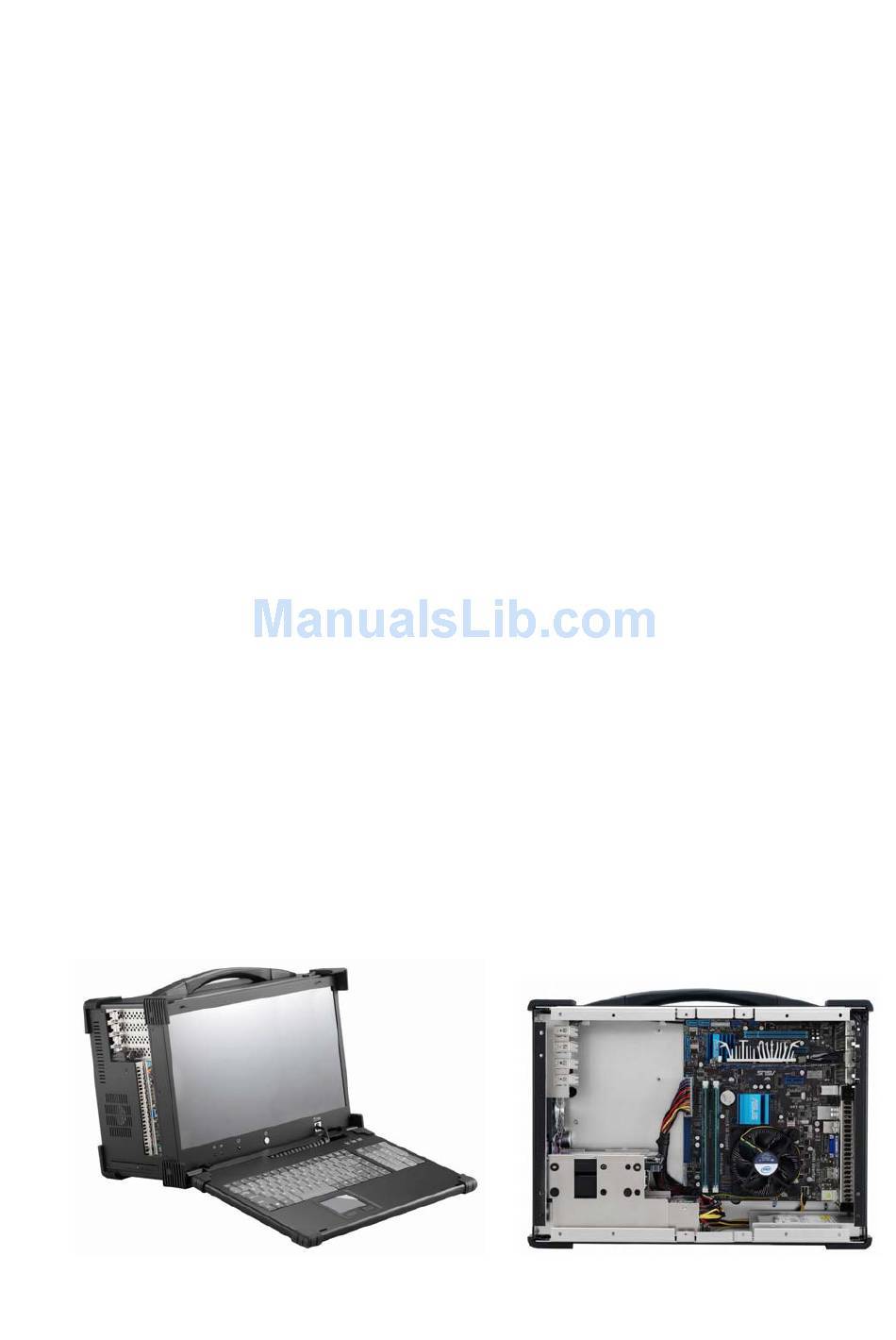

- Page 1 ARP 640 User Reference Manual...
- Page 2 Specifications Model No ARP640 Support Micro ATX Motherboard Motherboard Offer 4 full length expansion slots Slots Support 2x 3.5”, slim DVD-RW Drive bay 17.3" FHD LCD display, 1920x 1080, LED backlight, 262K colors Display Anti-reflection tempered strengthen glass AD conversion board, DVI interface (Option VGA) 104-key industrial multi-languages Keyboard/ touchpad KB/MS Operating Life of Keys: 8 million cycles...
- Page 3 Standard Accessory Kits ARP 640 Model Accessory Kit SKD ARP640 Portable Computer Chassis ARP 640 Carrying Case with wheels User’s Manual Power Cord Anti-Static Bag Screw Pack (stabilizer) Stabilizer Supports Pack Carrying Case with Wheels ３...
- Page 4 1.0 Introduction Version: 2012.10 ARP 640 features: ● Rugged Construction with shock absorbing rubber corners ● Built-in 17.3” FHD LCD display, 1920x 1080, LED backlight, 262K colors Anti-reflection tempered glass ● Designed for Micro ATX Motherboard ● Offer 4 full length slots expansion capability ●...
- Page 5 2.0 Getting Started 2.0 Operation 1. Releasing Keyboard from main unit by pushing the 2 taps located on top side of the chassis to release the locking mechanism, and then pull out the keyboard. Press to release 2. You have the option of leaving the keyboard attached to the chassis or they can be release independently from the chassis by pushing the two levers inward to release the lock.
- Page 6 4. You can flip the 2 feet located underneath the chassis outward to help create an angle for the chassis for viewing comfort. Power LED light 2 feet 5. Connect the power cable outlet into the power supply unit Insert Power Cord 6.
- Page 7 7. Access the 4 full-length expansion slots on the left side of the chassis. 8. ARP640 provides 2x 5.25”, 1x slim DVD-RW drive bays 2x 3.5” drive bay Slim DVD-RW 9. Full function keyboard and touchpad surface act as input for the system. Keyboard LED Touchpad + Button ７...
- Page 8 3.0 Internal Hardware Access Be sure power cable is not connected to the system before proceeding 1. Open Back Cover Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 2. Remove the Card stabilizer bar Unscrew Unscrew Unscrew Unscrew ８...
-
Page 9: Remove The Power Supply
3. Remove The Power Supply 3.1 Remove the right side cover Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew Unscrew 3.2 Release the right side screws Unscrew Unscrew 3.3 Release the screw and then Slide and move out the drive bay slowly Slide &... - Page 10 4. Remove The Drive Bay 4.1 Release the right side screws Unscrew Unscrew Unscrew Unscrew 4.2 Release the bottom screws Unscrew Unscrew Unscrew Unscrew 4.3 Slide and move out the drive bay Slide & Move out １０...
- Page 11 5. Install the proper stand-off matching the Micro ATX Motherboard into the chassis and correct I/O plate supplied by board manufacturer and secure it the motherboard onto chassis. 6. Install the drive bay into chassis Drive bay 7. Install the power supply into chassis Power Supply １１...
- Page 12 8. Install the 3.5” device into drive bay housing 8.1 The internal 3.5” HDD can be installed by using the detachable drive tray. Install the corner shock absorbing rubber holder onto the tray. Rubber Rubber Rubber Rubber Rubber Rubber 8.2 Fix the round screws onto 1 side (3 screws) of the HDD Round screw Round screw Round screw...
- Page 13 8.4 Push the HDD down and install the round screw into the outer side. Screw Screw Screw 9. Install your add-in card on the available connection interface, and inserted completely and tight. Remount the card stabilizer bar and put the rear cover back Screw Screw Screw...
-
Page 14: Software Installation
4.0 Software Installation You can use the built-in DVD-RW to load operating system and additional applications software into the system. Available medium from USB or download can also be possible. DOS Boot up: DOS boot up requires you to have a version of the DOS installed on hard disk drive or floppy. -
Page 15: Troubleshooting
5.0 Troubleshooting 1. Installation problem: 1. Normally problem with a fail start up is due to installation problem. 2. Double check all the peripheral cards or items you have added to the ARP. 3. Are all the items seated properly? 4. - Page 16 １６...
