Model 4520 & 4110 Series Getting Started Guide

B • Cabling

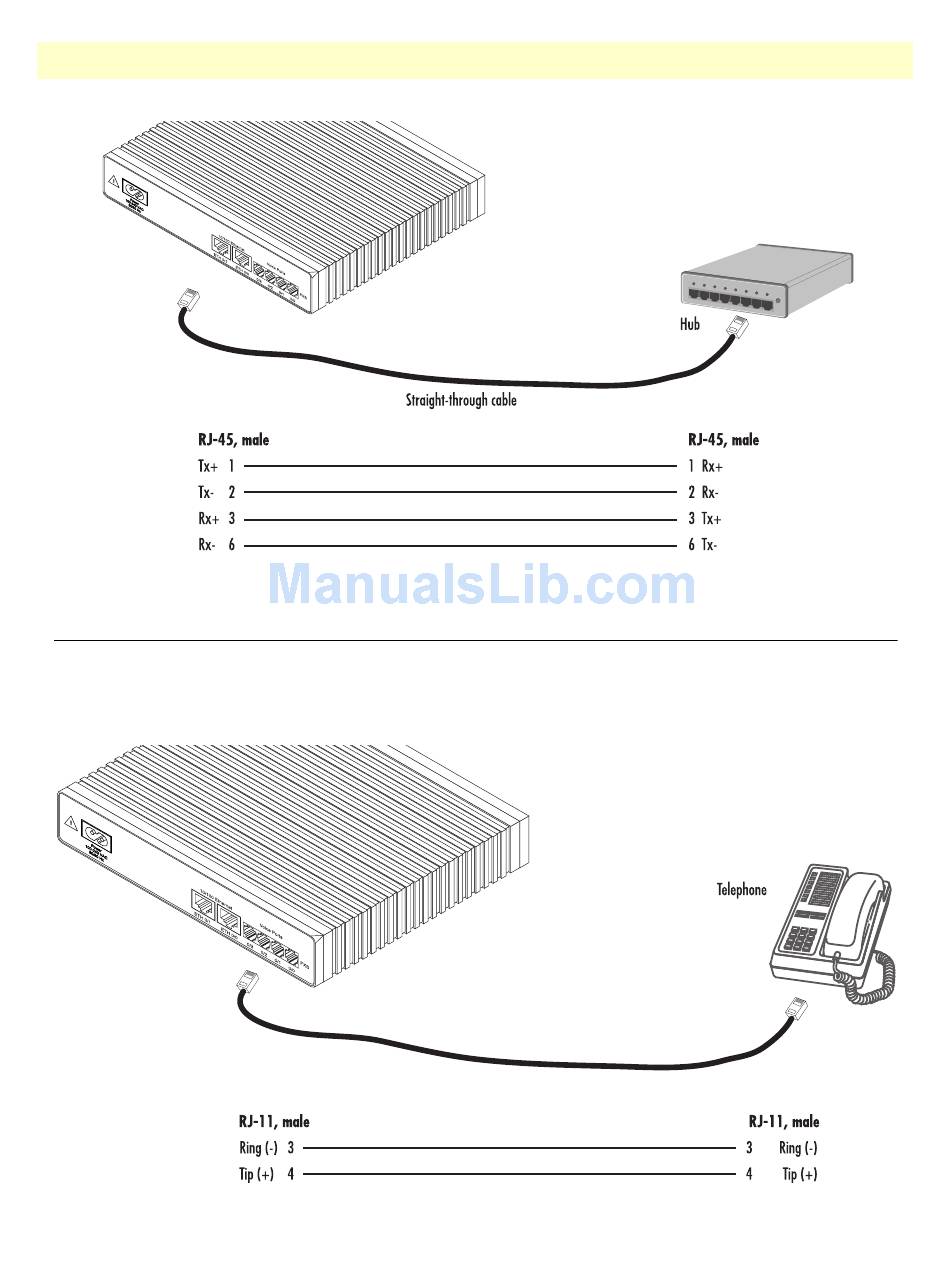

Figure 31. Ethernet straight-through

Analog FXS

Applicable to SmartNodes equipped with FXS ports. The FXS ports are connected to analog terminals

(phones, fax machines, answering machines) via cables terminated with RJ-11 connectors (see section

"FXS

port"

on page 77 for details on port pinouts).

Figure 32. Connecting an FXS device
