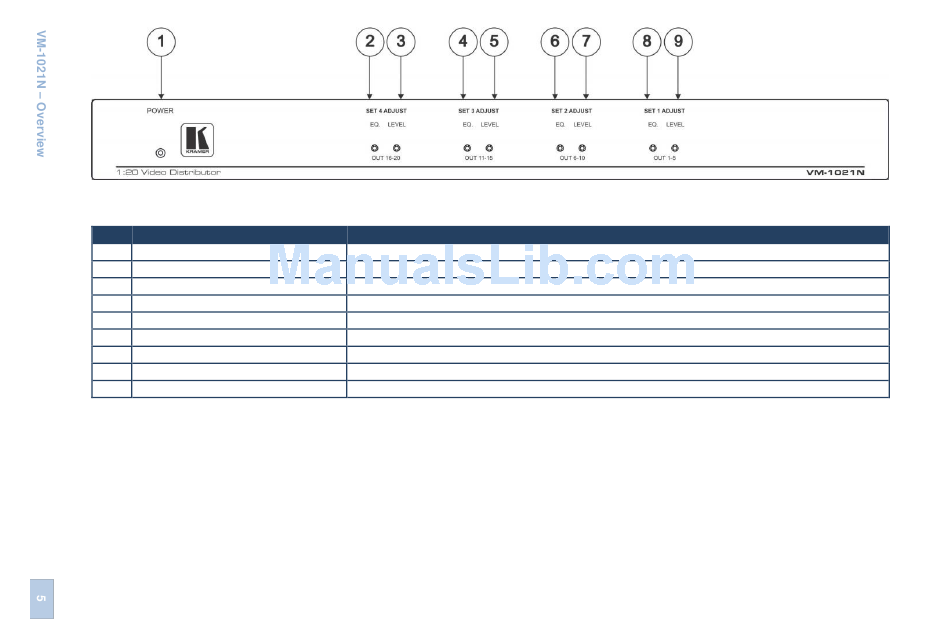

Figure 1: VM-1021N 1:20 Video Distributor Front Panel
#
Feature
1
POWER LED
2
SET 4 ADJUST EQ Trimmer
3
SET 4 ADJUST LEVEL Trimmer
4
SET 3 ADJUST EQ Trimmer
5
SET 3 ADJUST LEVEL Trimmer
6
SET 2 ADJUST EQ Trimmer
7
SET 2 ADJUST LEVEL Trimmer
8
SET 1 ADJUST EQ Trimmer
9
SET 1 ADJUST LEVEL Trimmer
VM-1021N - Overview
Function
Illuminates when the device is turned on
Controls cable equalization of SET 4 video outputs 16-20
Controls level of SET 4 video outputs 16-20
Controls cable equalization of SET 3 video outputs 11-15
Controls level of SET 3 video outputs 11-15
Controls cable equalization of the SET 2 video outputs 6-10
Controls level of SET 2 video outputs 6-10
Controls cable equalization of the SET 1 video outputs 1-5
Controls level of the SET 1 video outputs 1-5
5
