Page 1: User Manual
KRAMER ELECTRONICS, Ltd. USER MANUAL Distribution Amplifiers Models: VM-1010, VM-1015, VM-1021, VM-1042, VM-1044, VN-1055, VM-54 IMPORTANT: Before proceeding, please read paragraph entitled "Unpacking and Contents" KRAMER ELECTRONICS LTD. -
Page 2: Table Of Contents
VM-1015 Front Panel Features VM-1015 Rear Panel Features VM-1021 Front Panel Features VM-1021 Rear Panel Features VM-1042 Front/Rear Panel Features VM-1044 Front/Rear Panel Features VM-1055 Front/Rear Panel Features VM-54 Front Panel Features VM-54 Rear Panel Features Signals Supported By Model KRAMER ELECTRONICS LTD. -
Page 3: Introduction
In addition to the Kramer line of high quality amplifiers, such as the one you have just purchased, Kramer also offers a full line of high quality industrial and broadcast switchers, processors, interfaces, controllers and computer-related products. Kramer welcomes your inquiries for Kramer equipment or custom-manufactured products, engineering, private labeling and OEM manufacturing per your specifications. -
Page 4: Factors Affecting Quality Of Results
Interference from neighboring electrical appliances - These can have an adverse effect on signal quality. Balanced audio lines are less prone to interference, but unbalanced audio should be installed far from any mains power cables, electric motors, transmitters, etc. even when the cables are shielded. KRAMER ELECTRONICS LTD. -
Page 5: Specifications
(5.91Lbs) (5.55Lbs.) (5.64Lb) (5.91Lbs) (8.84Lbs) Approx. Approx. Approx. Approx. Approx. Approx. Approx. Power 10.3VA 4.6VA 6.7VA 3.2VA 4.6VA 5.3VA 21.39VA consumption Power Source 230V/115VAC 230V/115VAC 230V/115VAC 230V/115VAC 230V/115VAC 230V/115VAC 230V/115VAC 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz KRAMER ELECTRONICS LTD. -
Page 6: How Do I Get Started
UNPACKING AND CONTENTS The items contained in your Kramer VM Amplifier packaging are listed below. Please save the original box and packaging materials for possible future transportation and shipment of the Amplifier. - Page 7 (up to 12 MHz) signals up to 100 meters. At shorter distances, as in a studio, bandwidth of 30 MHz is easily achieved. By using the KRAMER TP-1 together with the TP-2 (Video Line Receiver) coax wiring (in a studio for example) can be completely eliminated.
-
Page 8: Vm Series Amplifiers
Getting To Know Your VM-1010 Amplifier The KRAMER VM-1010 is full broadcast, state-of-the-art, Programmable Video Distribution Amplifier designed for studio and other demanding applications. The VM-1010 has two looping video inputs, each splitting to 5 outputs. The user may select 2x1:5 or 1:10 operation via front panel control switches. -
Page 9: Getting To Know Your Vm-1015 Amplifier
Getting To Know Your VM-1015 Amplifier The KRAMER VM-1015 is a full broadcast, state-of-the-art 1:5 Video Distribution Amplifier designed for studio and other demanding applications. The VM-1015 splits a single input source into five identical outputs with no discernible signal degradation. Output signals can either be AC or DC coupled, black level or sync tip (signal bottom) clamped, thus allowing the machine to function in all video environments. -
Page 10: Getting To Know Your Vm-1021 Amplifier
Getting To Know Your VM-1021 Amplifier The KRAMER VM-1021 is a full broadcast, state-of-the-art, 1:20 Video Distribution Amplifier designed for studio and other demanding applications. The VM-1021 splits a single input source into twenty identical outputs with no discernible signal degradation. Output signals can either be AC or DC coupled, black level or sync tip clamped, thus allowing the machine to function in all video environments. -
Page 11: Vm-1021 Front Panel Features
(SET 4) SET 4 of 5 amplified buffered and clamped video outputs. Power Connector A 3-prong AC connector allows power to be supplied to the unit. Directly underneath this connector, a fuse holder houses the appropriate fuse. KRAMER ELECTRONICS LTD. -
Page 12: Getting To Know Your Vm-1042 Amplifier
Getting To Know Your VM-1042 Amplifier The KRAMER VM-1042 is a full broadcast, looping Video Component Distributor designed for studio and other demanding applications. VM-1042 splits each input of a four-component source into two identical outputs with no discernible signal degradation. Input and output DC coupling and state-of- the-art video amplifying circuitry make the KRAMER VM-1042 the first choice Video Component Distributor. -
Page 13: Vm-1042 Front/Rear Panel Features
OUT 1, 2 BNC connectors Channel D amplified and buffered video outputs. (CHANNEL D) Power Connector A 3-prong AC connector allows power to be supplied to the unit. Directly underneath this connector, a fuse holder houses the appropriate fuse. KRAMER ELECTRONICS LTD. -
Page 14: Getting To Know Your Vm-1044 Amplifier
Getting To Know Your VM-1044 Amplifier The KRAMER VM-1044 is a full broadcast, Video Component Distributor designed for studio and other demanding applications. The VM-1044 splits a four-component input source into four identical outputs, with no discernible signal degradation. Input and output DC coupling and state-of-the-art video amplifying circuitry make the KRAMER VM-1044 the first choice Video Component Distributor. -

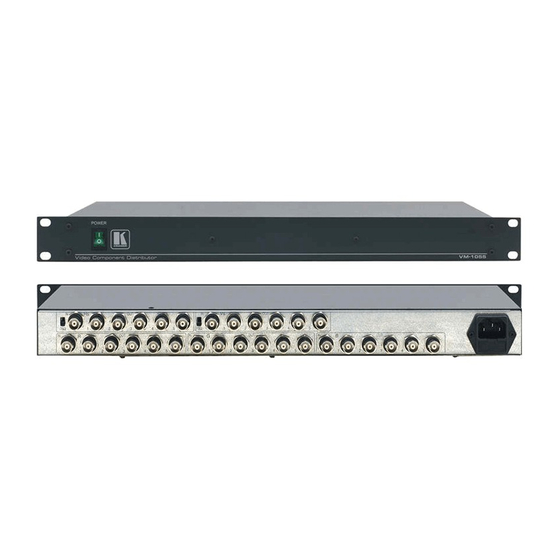

Page 15: Getting To Know Your Vm-1055 Amplifier
DC coupled inputs and outputs and state-of-the-art video amplifying circuitry make the KRAMER VM- 1055 the first choice Video Component Distributor. Signal bandwidth of over 300 MHz and the option to adjust the termination of two "sync"... -
Page 16: Getting To Know Your Vm-54 Amplifier
Getting To Know Your VM-54 Amplifier The KRAMER VM-54 is a high quality, state-of-the-art, Video/Component Distribution Amplifier designed for studio and other demanding applications. The VM-54 has three looping input channels each with 18 outputs. With this configuration a 1:18 RGB distributor can be formed. Each channel is subdivided into 4 groups of 5 or 3 outputs, which may be tuned separately for gain and cable EQ. -
Page 17: Front/Rear Panel Features
Controls video levels of outputs 1-5 in Channels 1-3. Channels 1-3) AC/DC switches (Channels 1-3) Selects AC/DC coupling for Channels 1-3 (DC coupling when pressed). Hi-Z/75ohm switches(Channels 1-3) Selects “Hi-Z/75ohm” impedance for Channels 1-3 (75 ohm termination is applied when pressed). KRAMER ELECTRONICS LTD. -
Page 18: Installation
Table 1 : Signals Supported By Model Model Supported signal VM-1010 Composite/component/YC/analog sync video VM-1015 Composite/component/ analog sync video VM-1021 Composite/component/ analog sync video VM-1042 Composite/RGBs/component VM-1044 Composite/RGBs/component VM-1055 Composite/RGBHsVs/ analog or TTL sync component VM-54 Composite/component RGBs video KRAMER ELECTRONICS LTD. -
Page 19: Using The Video Amplifiers
Be aware that the amplifier was pre-calibrated for transparent operation at the factory and re-tuning it will upset signal transparency. Do not attempt to adjust the LEVEL trimmers without using accompanying standard calibrated oscilloscope or waveform monitor! KRAMER ELECTRONICS LTD. -
Page 20: Equalization Control
AC coupling, thus removing the original DC components of the incoming signal. The black level is clamped to "zero", thus converting the input signal to a standard video signal. Whenever the picture is distorted, too dark or too bright the DC offset is probably KRAMER ELECTRONICS LTD. -
Page 21: Sync Tip Clamping
If not, turn the power switch off and on again to reset the machine. 2. If the recommended actions still do not result in satisfactory operation, please consult your KRAMER Dealer. Power and Indicators Problem Remedy No Power Confirm that rocker switch is in “... -
Page 22: Video Signal
Disconnect all cables and reconnect them one at a time until ground loop reappears. Disconnect the affected cable and replace, or insert an isolation device (opto isolator or transformer) in the signal path. KRAMER ELECTRONICS LTD. -
Page 23: Limited Waaranty
1) Any product which is not distributed by Kramer or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site www.kramerelectronics.com. - Page 24 EXCLUSION OF DAMAGES Kramer’s liability for any defective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 10) Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 25 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com. Updates to this user manual may be found at http://www.kramerelectronics.com/manuals.html. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com...
