Page 1: User Manual
KRAMER ELECTRONICS, Ltd. USER MANUAL Video/Audio Distribution Amplifiers Models: VM-80V VM-10AN IMPORTANT: Before proceeding, please read paragraph entitled "Unpacking and Contents"... -
Page 2: Table Of Contents
HOW DO I GET STARTED UNPACKING AND CONTENTS Optional Accessories VM SERIES AMPLIFIERS Getting to know your VM-80V Getting to know your VM-10AN Amplifier INSTALLATION CONNECTING TO VIDEO DEVICES CONNECTING TO AUDIO DEVICES USING THE VM VIDEO/AUDIO AMPLIFIERS Turning on the Amplifier... -
Page 3: Introduction
In addition to the Kramer line of high quality amplifiers, such as the one you have just purchased, Kramer also offers a full line of high quality switchers, processors, interfaces, controllers and computer-related products. This manual includes configuration, operation and option information for the VM-80V and VM-10AN distribution amplifiers. -
Page 4: Specifications
Max video Output Differential Gain Differential Phase Audio THD+N K-Factor Dimensions (W, D, H) Weight Power Source KRAMER ELECTRONICS LTD. VM-80V 1:8 Video Distribution Amplifier 2 Composite/single component video 1Vpp/75ohm on BNCs with termination switches 2x4 Composite/single component video 1Vpp/75ohm on BNCs... -
Page 5: How Do I Get Started
UNPACKING AND CONTENTS The items contained in your Kramer VM amplifier package are listed below. Please save the original box and packaging materials for possible future shipment of the amplifier. - Page 6 (up to 12 MHz) signals up to 100 meters. At shorter distances, as in a studio, bandwidth of 30MHz is easily achieved. By using the KRAMER TP-1 together with the TP-2 (video Line Receiver) coax wiring (in a studio, for example) can be completely eliminated. The TP-1 can also be used for simplification of security and CCTV installations, and for teleconferencing in offices and hospitals using existing unused intercom or telephone wiring.
-
Page 7: Vm Series Amplifiers

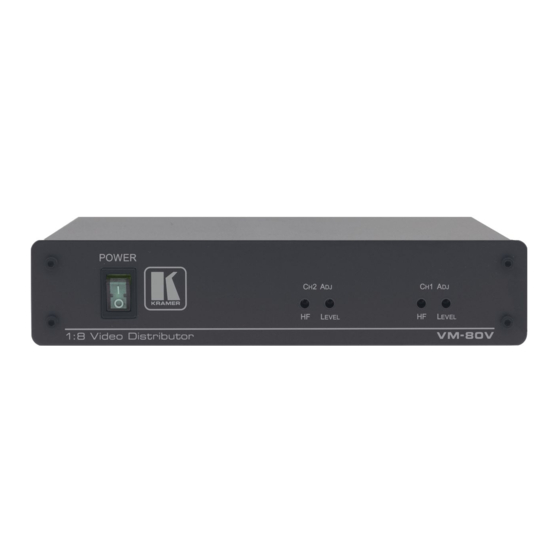

Getting To Know Your VM-80V The Kramer VM-80V is a broadcast quality distribution amplifier designed primarily for composite video signals on BNC connectors. Using a simple rear panel switch, it can be configured either as a single 1:8 DA, or as two separate 1:4s. -
Page 8: Vm-80V Front/Rear Panel Features
1:8 Selector Switch Channel 2 INPUT Channel 1 OUT Channel 2 OUT Power connector KRAMER ELECTRONICS LTD. Figure : VM-80V Front/Rear Panel Features Table 1 : VM-80V Front/Rear Panel Features Function Supplies power to the unit. Cable compensation adjustment for output set 2. -
Page 9: Getting To Know Your Vm-10An Amplifier
Looping inputs make it easy to expand to larger distribution systems. The VM-10AN can also be mounted in a standard 19” rack using the RK-10 kit, which holds one unit in two vertical spaces. Front/Rear panel features of the VM-10AN are described in Figure 2 and Table 2. -
Page 10: Connecting To Video Devices
For these cases AC coupling should be selected. Coupling Selection The VM-80V and the VM-10AN come from the factory with DC coupling. Selecting AC Coupling is performed by removing the internal jumper. To remove jumper, perform the following steps: 1) Disconnect the machine from the mains supply by removing the power cord from the wall outlet. -
Page 11: Operating The Vm-80V
Operate source, acceptors and the VM-80V machine. Operating the VM-10AN Connect a video cable from the video source to the video input socket of the VM-10AN and an audio-stereo cable from the source to the Right and Left Audio inputs sockets. -
Page 12: Power And Indicators
If the wire is broken, replace the fuse with another, with the same rating. For model VM-10AN perform the following: Remove the power cord from the AC outlet and then using a philips screwdriver, carefully remove the cover of the machine. -
Page 13: Video Signal
Video Signal 11.3 (VM-80V, VM-10AN) Problem Remedy No video at the output device, regardless of input selected Video level is too high or too low Noise bars "roll" up or Hum bars (ground loop) are caused by a difference in the ground potential of any down in the output two or more devices connected to your signal path. -
Page 14: Limited Warranty
1) Any product which is not distributed by Kramer or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site www.kramerelectronics.com. - Page 15 EXCLUSION OF DAMAGES Kramer’ s liability for any defective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1) Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 16 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
