Scan for full manual
Step 1: Check what's in the box
VM-1021N 1:20 Video Distributor
1 Power cord

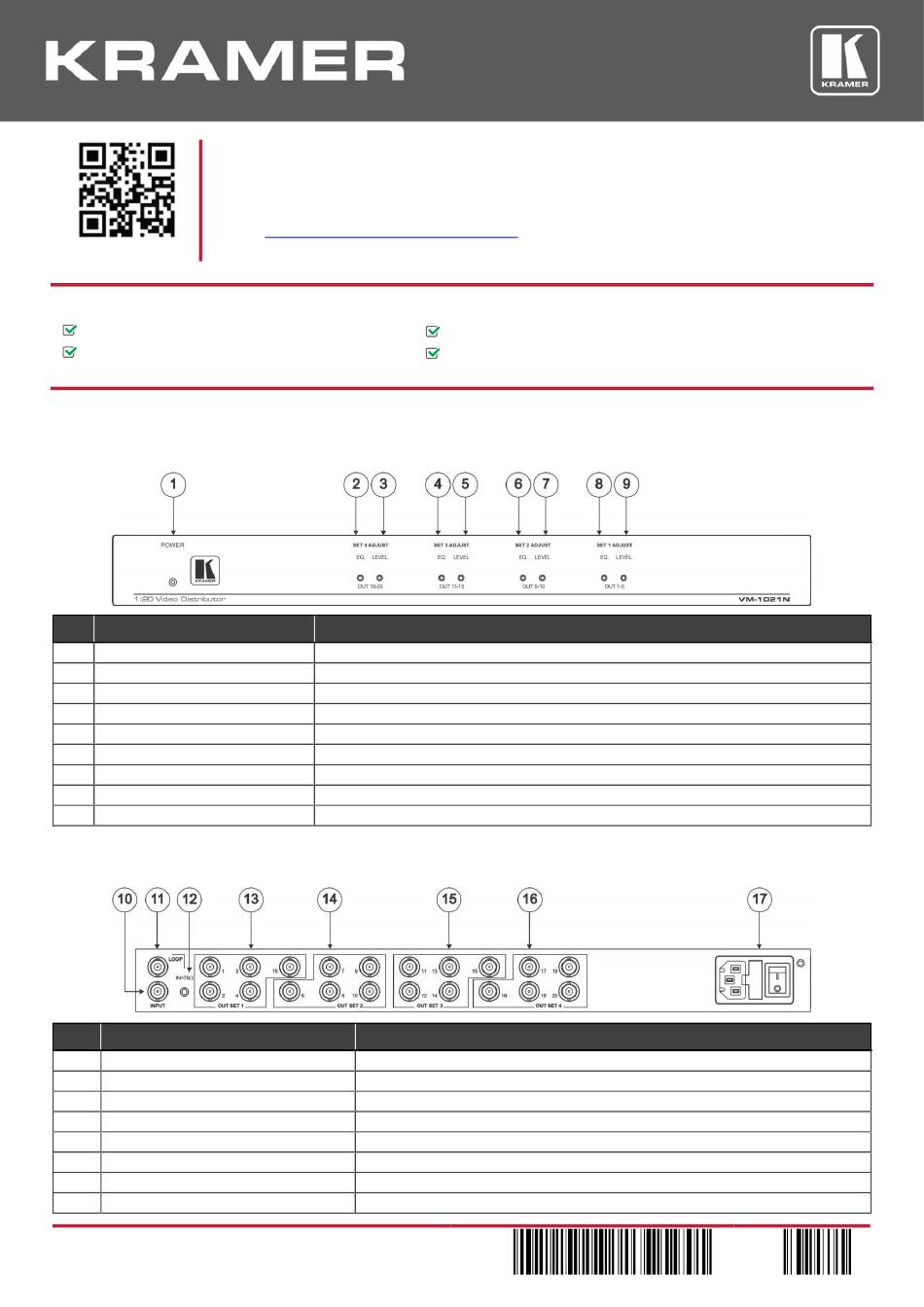

Step 2: Get to know your VM-1021N
Front Panel
#
Feature
1
POWER LED
2
SET 4 ADJUST EQ Trimmer
3
SET 4 ADJUST LEVEL Trimmer
4
SET 3 ADJUST EQ Trimmer
5
SET 3 ADJUST LEVEL Trimmer
6
SET 2 ADJUST EQ Trimmer
7
SET 2 ADJUST LEVEL Trimmer
8
SET 1 ADJUST EQ Trimmer
9
SET 1 ADJUST LEVEL Trimmer
Back Panel
#
Feature
10
INPUT BNC Connector
11
LOOP BNC Connector
IN=75Ω Button
12
13
OUT SET 1 BNC Connectors (1-5)
14
OUT SET 2 BNC Connectors (6-10)
15
OUT SET 3 BNC Connectors (11-15)
16
OUT SET 4 BNC Connectors (16-20)
17
Power Connector
VM-1021N Quick Start
VM-1021N Quick Start Guide
This guide helps you install and use your
Go to
www.kramerav.com/downloads/VM-1021N
upgrades are available.
Function
Illuminates when the device is turned on
Controls cable equalization of SET 4 video outputs 16-20
Controls level of SET 4 video outputs 16-20
Controls cable equalization of SET 3 video outputs 11-15
Controls level of SET 3 video outputs 11-15
Controls cable equalization of the SET 2 video outputs 6-10
Controls level of SET 2 video outputs 6-10
Controls cable equalization of the SET 1 video outputs 1-5
Controls level of the SET 1 video outputs 1-5
Function
Connects to a composite/component/ analog sync video source
Selects "75Ω" or "HI-z" impedance when pressed (for looping select "Hi-z")
Provides video looping capability to increase number of outputs
SET 1 of 5 amplified buffered and clamped video outputs 1-5
SET 2 of 5 amplified buffered and clamped video outputs 6-10
SET 3 of 5 amplified buffered and clamped video outputs 11-15
SET 4 of 5 amplified buffered and clamped video outputs 16-20
AC connector, fuse and power switch enabling power supply to the unit
VM-1021N
for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Quick start guide
P/N: 2 9 0 0 - 3 0 1 2 7 0 QS
Rev: 3
Advertisement
Table of Contents
Related Manuals for Kramer VM-1021N
Summary of Contents for Kramer VM-1021N
- Page 1 Step 1: Check what’s in the box VM-1021N 1:20 Video Distributor 4 Rubber feet 1 Power cord 1 Quick start guide Step 2: Get to know your VM-1021N Front Panel Feature Function POWER LED Illuminates when the device is turned on...
- Page 2 • Reliable earthing of rack-mounted equipment should be maintained. Step 4: Connect inputs and outputs Always switch OFF the power on each device before connecting it to your VM-1021N. To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VM-1021N.
