Summary of Contents for SoundMax SM-CDM1039

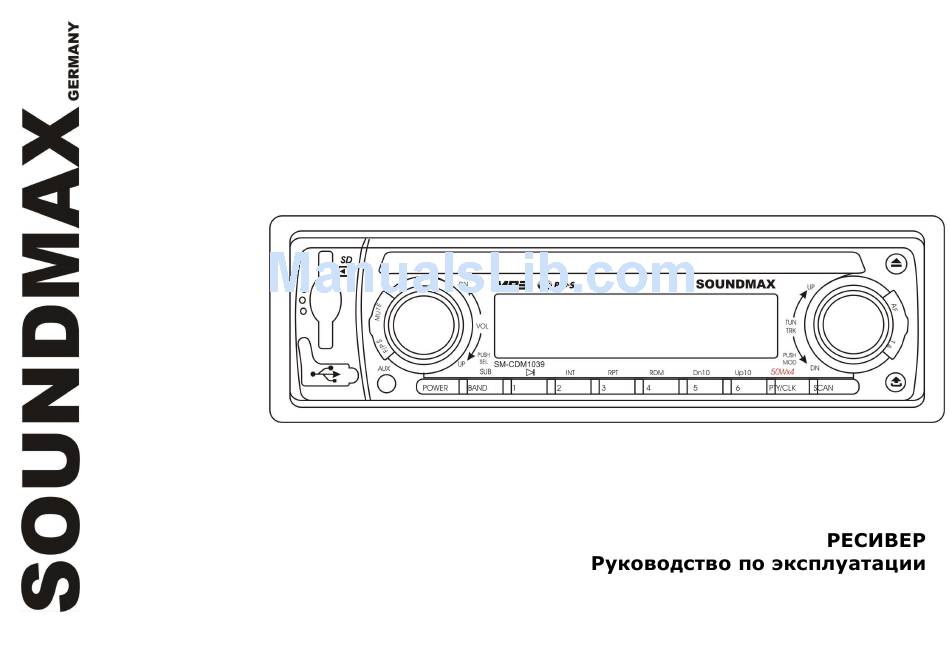

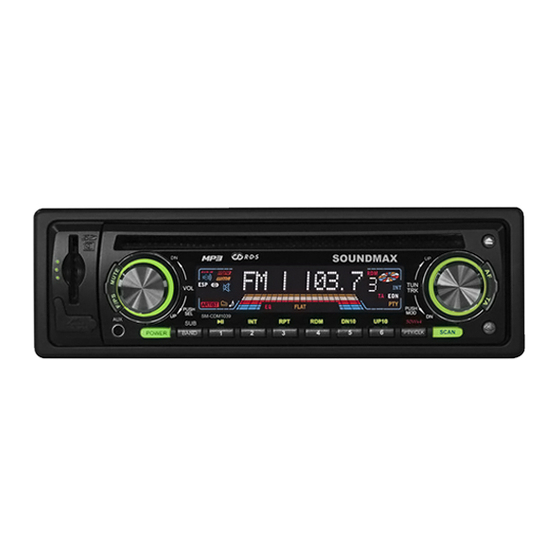

- Page 1 SM-CDM1039 CD/MP3-RECEIVER CD/MP3- Instruction manual...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ..........................2 Important safeguards...........................3 Installation/ Connections ........................4 Panel controls............................7... -
Page 3: Important Safeguards
Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit. -
Page 4: Installation/ Connections
Installation/ Connections First complete the electrical connections, and then check them for correctness. Installation way It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram. - Page 5 Din rear-mount (method 2) Installation using the screw holes at both sides of the unit. 1. Select a position where the screw holes of the main unit are fitted for aligned, and tighten the screws at 2 positions at each sides. Use either truss screws (5 x 8mm) or flush surface screws (4 x 8mm), depending on the shape of the screw holes in the bracket.
-
Page 6: Connection Scheme
Connection scheme Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other. -
Page 7: Panel Controls
Panel controls Front panel OPEN BUTTON Press it to remove the front panel. TA BUTTON Press it to active the TA function. SCAN BUTTON PTY / CLK BUTTON Press it to active the PTY function. Press and hold it to set the time. PRESET STATION [1-6] BUTTONS No 1/ PLAY/PAUSE (4;) button No 2/ INT BUTTON... - Page 8 9. No 4/ RDM Press to start the random playback. 10. No 5/ DN 10 Press it to start playing on 10 tracks back. 11. No 6/ UP 10 Press it to start playing on 10 tracks forward. 12. BAND / SUB BUTTON In radio mode press it to select desired band.
-
Page 9: Inner Panel
Inner panel Press the OPEN button on the front panel to flip it down. 1. LED INDICATOR 2. RESET BUTTON 3. DISK SLOT... -
Page 10: Functions Of Controls
Functions of controls General operations Power button Press any button to switch the unit on. The display will show a message WELCOME . Press and hold the POWER button to switch the unit off. The display will show a message GOOD-BYE . Note: After the unit is off, volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status you set. - Page 11 Mute function Press the MUTE button to cancel the sound. Press it again or VOL +/ - to resume. Subwoofer control Press and hold the BAND/ SUB button to turn the Subwoofer output ON. An external amplifier is required to operate a subwoofer.
-
Page 12: Radio Operations
Radio operations BAND selection Press the BAND / SUB button repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, AM1, AM2. Each band can store 6 preset stations, for a total of 30 preset memory stations. Tuning In Radio mode turn the TUNE button to manually adjust the radio frequency. -
Page 13: Rds Function
RDS function During listening to radio or CD if there are any travel announcements from a nearly local station the radio will always know the frequency of that radio station. Then it will receive the station, turn up the volume or interrupt the playback of the music for the duration of the announcement. - Page 14 Function Mask DPI- Mask all · Press the sound select button for 2 seconds. · Press the SEL button to cycle through to Mask DPI . · Rotate the encoder volume to toggle between MASK DPI and MASK ALL mode. ·...
- Page 15 CD/ / MP3/ WMA/ USB/ SD card operations Discs for playback This unit can play disc types: CD/CD-R/-RW. Compatible with formats: MP3/WMA. USB/ SD/ MMC notes USB functions (flash memory type) MP3 music play. SD/ MMC card support, 2in1 (SD/ MMC) support. USB flash memory.
- Page 16 Multi-session CD reading The multi-session reading will be activated automatically if the player detects a file that is written in multi- session format. Inserting the USB/ SD device Remove the cover from the USB port, then insert the USB device into the USB slot on the front panel. Then the playing mode will be changed into USB mode automatically.
- Page 17 Random playback During disc playback, press the No 4 / RDM button to start random playback of the tracks. The display will show RDM / RDM ON (in USB/ SD mode). Press again to cancel. Intro playback You can play the beginning of every track for 10 seconds in sequence. Press the No 2 / INT button to start intro play.
- Page 18 After playing all the files sequentially in the first folder, the unit will play sequentially all of the files in the next folder. The unit will continue playing through all of the folders on the USB drive in this manner. In the USB drive has loose files and folders containing files, it will play the loose sequentially, then it will play the files in the folders sequentially.
-
Page 19: Mp3 Overview
MP3 overview Notes on MP3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write. -
Page 20: Anti-Theft System
Anti-theft system This unit is equipped with a slide-down detachable and mask panel. Panel can be detached and taken with you, helping to deter theft. Detaching the front panel Press the PWR button to turn the power off. Press the OPEN button on the front panel. Push the panel to the right and then pull it towards you. -
Page 21: Handling Compact Discs
Handling compact discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust. -
Page 22: Troubleshooting Guide
Troubleshooting guide Symptom Cause Solution General The car ignition is not on. If the power supply is properly connected to the No power car accessory switch the ignition key to " ACC ". The fuse is blown. Replace the fuse. Disc Presence of CD disc inside the Remove the disc in the player then put a new... -
Page 23: Specification
Specification General 12 V DC Power supply Current consumption max. 15 A Maximum power output 50Wx4 channels Fuse Dimensions (L x W x H) 178 x 50 x 150 mm FM stereo radio Frequency range 87.5 - 108.0 MHz Usable sensitivity 3 uV I.F. - Page 24 .............................24 ........................24 ........................25 ........................26 ..........................29 ......................31 3............................41 .........................43 ......................44 ...........................44 ..................44 ..................45 ......................46...
- Page 29 OPEN EJECT SCAN ( PTY / CLK PTY. (1-6) PLAY/PAUSE ( INT ( RPT (...
- Page 30 RDM ( DN 10 ( UP 10 ( BAND / SUB BAND ( POWER 14. AUX F / PS MUTE MUTE, SEL, : VOL => BAS => TRE => BAL => FAD. / TRK EJECT...
- Page 31 OPEN, 1. LED RESET...
- Page 32 «WELCOME». POWER, «GOOD-BYE». SEL ( : BAS 0 ( ) => TRE 0 ) => BAL R-L ( ) => FAD ( - BASS/TREBLE: -7, -6, -5,.., 0, +1, +2,..+5, +6, +7 - BALANCE: 7L, 11L,.., L=R, 1R,..,7R , L - FADER: 7R, 11R,.., R=F, 1F,.., 7F BASS TREBLE...
- Page 33 Volume/ SEL «LOUD OFF». OFF. MUTE, VOL+/ -, BAND/ SUB, Volume Beep On . Volume : CLASS => POP => ROCK => FLAT. PTY / CLK PTY / CLK CLK,...
- Page 34 B ND / SUB, : FM1, FM2, FM3, AM1, TUNE, ( FM VOLUME / SEL «ST ON» «ST OFF» « », F / PS · F/ PS (18 FM, 12 AM) 3/4. (1-6) Preset (1-6),...
- Page 35 RDS function AF ( «AF» TA ( TA SEEK. TA SEEK ALARM, TA SEEK TA ALARM «TA/ TP» SEL, PTY / CLK, 1-6,...
- Page 36 Mask DPI- Mask all · · SEL, «Mask DPI». · MASK DPI MASK ALL. · MASK DPI, (AF), MASK ALL, RDS. Retune S/L Short/ Long · «TA SEEK». · SEL, «RETUNE_S». · VOL+/- «RETUNE_S» «RETUNE_L». · «RETUNE_S».
- Page 37 / SD / USB : CD/CD-R/-RW. : MP3/WMA. USB/ SD/ MMC SD/ MMC, 2 1 (SD/MMC). FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( , 500 FAT 32 ( , 500 : 32 : 32 (id3tag ver 2.0) USB 2.0.
- Page 38 Multi-session CD USB/ SD USB. MODE, USB. No 1 / PLAY / PAUSE, TUNING / TRK, TUNING / TRK UP 10/ DN 10 ( MP3, WMA No 6 / UP 10, No 5 / DN 10, No 3 / R «RPT».
- Page 39 No 4 / RDM, «RDM»/ «RDM ON» ( USB/ SD). Intro No 2 / INT, «INT». ID3 Tag ( MP3/ WMA ID3 Tag, Search ( MP3/ WMA Search MP3/ WMA CD MP3/ WMA Intro · F / PS, · SEL, ·...
- Page 40 USB: MP3/ WMA AUX IN · AUX IN · MODE, AUX. · AUX IN · BND / SUB,...
- Page 41 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. .mp3 . .mp3 , 256. VBR, . VBR:...
- Page 42 CD-R CD-RW, 44,1 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW 1. ID3TAG.
- Page 43 PWR, OPEN . 1).
- Page 45 « ». RESET.
- Page 46 12 , . 15 87.5 - 108.0 10.7 522-1620 MP3/ CD-R/ CD-RW 20-100 10-20 . 2000...
