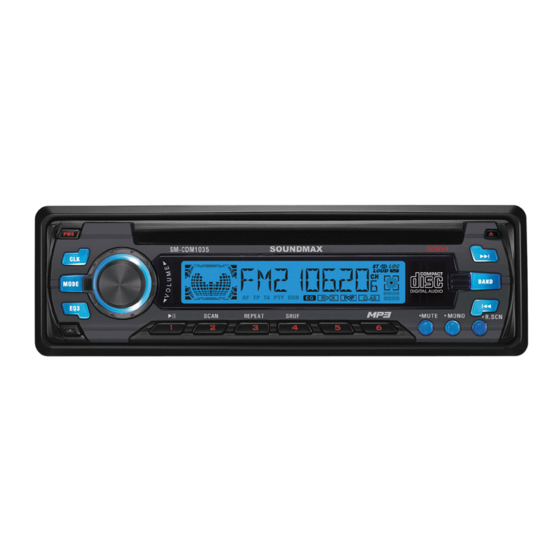

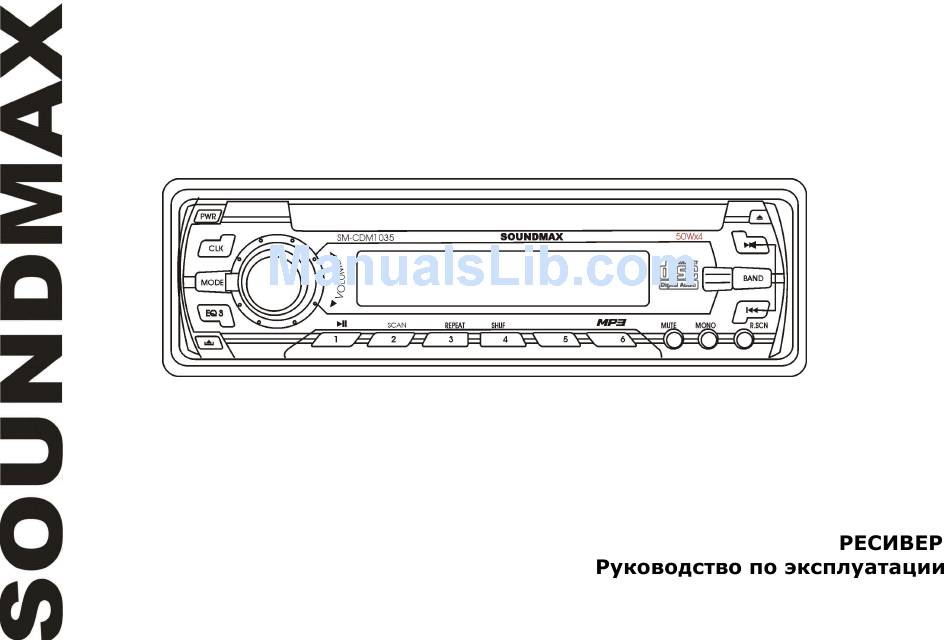

- Page 1 SM-CDM1035 CD/MP3 RECEIVER CD/MP3- Instruction manual...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents Table of contents ..........................2 Important safeguards.......................... -
Page 3: Important Safeguards
Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit. -
Page 4: Installation/ Connections
Installation/ Connections First complete the electrical connections, and then check them for correctness. Installation way It is an anti-theft installation way. The chassis wear a metal sliding housing. Please have the wiring connection of the power supply, speakers and antenna as for the requirement of the manual, and then install the metal sliding housing into the car according to the diagram. - Page 6 Attaching the panel 1 Attach the front panel by fixing the left side of it into the unit 2 Push the right side of the panel towards into the connecting plug as shown Caution: The panel can easily be damaged by shocks. After removing it, place it in a protective case and be careful not to drop it or subject it to strong shocks.
-
Page 7: Connection Scheme
Connection scheme Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other. -
Page 8: Panel Controls
Panel controls Front panel 1. POWER button Press it to turn the power on. Press again to turn the power off. 2. CLK BUTTON Press it to set or display the time. 3. VOL KNOB/ SEL BUTTON Rotate VOL knob clockwise to increase the volume level; rotate anticlockwise to decrease the volume level. - Page 9 8. RELEASE button Press it to release the faceplate 9. EQ3 BUTTON Use the EQ3 button to set the equalizer. 10 NUMBERED BUTTONS Use these buttons as PRESET MEMORY buttons to store radio stations. -MANUAL PRESET: keep pressing any of 1-6 buttons to store any radio station. -AUTOMATIC PRESET: use LEFT/RIGHT buttons to store radio stations automatically.
-
Page 10: Functions Of Controls
Functions of controls General operations Reset the unit Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press RELEASE button, then press the RESET button to restore the unit to the original factory settings. Power button Press the PWR button to switch the unit on. -
Page 11: Radio Operations
Radio operations BAND selection Press the BAND button repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3. Auto/ Manual tuning Manual tuning: Press the buttons shortly to select a station downward or upward step by step. Automatic tuning: Press the buttons and hold for 2 seconds, the automatic search downwards or upwards will start. -
Page 12: Discs Operations
Discs operations Discs for playback This unit can play disc types: CD/CD-R/-RW. Compatible with formats: MP3 Loading/ eject a disc Insert the disk into the slot with the printed side facing upwards. Press EJECT button on the front panel to eject the disc. Playing/ pausing playback Press the PLAY/PAUSE button to start playback. -
Page 13: Mp3 Overview
MP3 overview Notes on MP3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write. -
Page 14: Anti-Theft System
Note that the unit may not play Tracks in the order that you wrote them to the disc. Anti-theft system This unit is equipped with a mask panel which can be detached and taken with you, helping to deter theft. Detaching the front panel 1. -
Page 15: Handling Compact Discs
Handling compact discs Dirty, scratched or warped discs may cause skip ping or noise. Handle the disc only by the edges. To keep clean do not touch its surface. Discs should be stored in their cases after use to avoid scratches. Do not expose discs to direct sunlight, high humidity, high temperature or dust. -
Page 16: Troubleshooting Guide
Troubleshooting guide Symptom Cause Solution General The car ignition is not on. If the power supply is properly connected to the No power car accessory switch the ignition key to " ACC ". The fuse is blown. Replace the fuse. Disc Presence of CD disc inside the Remove the disc in the player then put a new... -
Page 17: Specification
Specification General 12 V DC Power supply Current consumption max. 15 A Maximum power output 50Wx4 channels Fuse 40sec CD, 120 sec MP3 Dimensions (L x W x H) 178 x 50 x 150 mm FM stereo radio Frequency range 87.5 - 108.0 MHz Preset memory 18 stations... - Page 18 ............................ 18 ........................18 ........................19 ........................20 ......................... 24 ......................26 3............................29 ........................ 30 ......................31 ..........................31 ..................31 ..................32 ......................33...
- Page 24 EJECT...
- Page 25 MODE /CD. RELEASE 9. EQ3/ PLAY/PAUSE ( SCN ( REPEAT ( SHUF ( MUTE, MONO MONO/STEREO. BAND BAND ( P-SCAN...
- Page 26 RESET ( RELEASE. RESET, PWR, SEL ( : VOL ( ) => BAS ( ) => TRE ( ) => BAL ( ) => FAD ( BASS TREBLE MOD , : BAND ( ) => CD ( MUTE,...
- Page 27 CLK 3 B ND, : FM1, FM2, FM3. 3 FM 1~6, 1~6.
- Page 28 – : CD/CD-R/-RW. : MP3. EJECT PLAY/ PAUSE, PLAY/PAUSE, PLAY/PAUSE SHF,...
- Page 29 MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, PC “ ” “ ” 256. VBR, . VBR: CD-R CD-RW, 44,1 ISO 9660, CD-R MP3 CD-R CD-RW...
- Page 30 CD-R CD-RW CD-R CD-RW ID3TAG. PWR, RELEASE . 1).
- Page 32 « ». RESET.
- Page 33 . 15 87.5 - 108.0 10.7 MP3/ CD-R/ CD-RW 20-100 10-20 . 2000...
