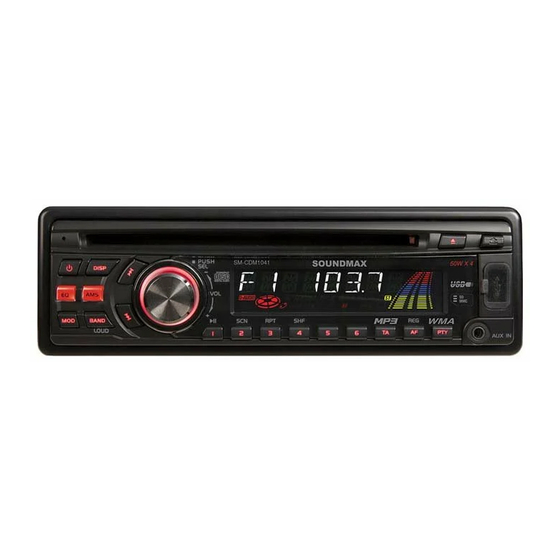

SoundMax SM-CDM1041 Instruction Manual

Cd/mp3/wma-receiver
Hide thumbs Also See for SM-CDM1041:
Table of Contents

Advertisement

Quick Links

Download this manual
SM-CDM1041
CD/MP3/WMA-RECEIVER
CD/MP3/WMA-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CDM1041 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SoundMax SM-CDM1041

Summary of Contents for SoundMax SM-CDM1041

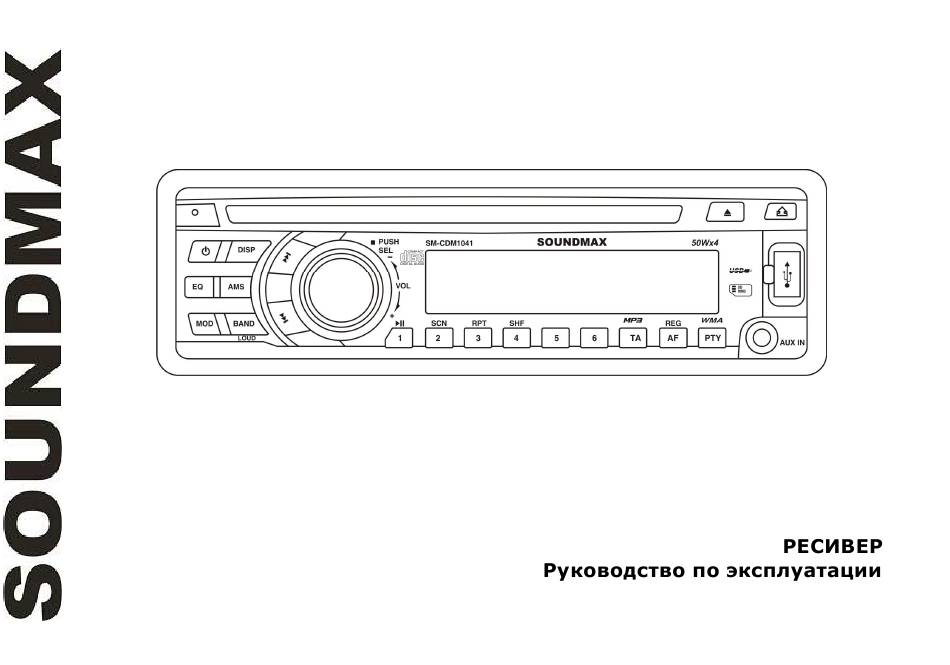

  • Page 1 SM-CDM1041 CD/MP3/WMA-RECEIVER CD/MP3/WMA- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS ....................2 IMPORTANT SAFEGUARDS ...................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature. Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result an outage.

  • Page 4: Accessories

    Accessories Receiver 1 pc Front panel 1 pc Carrying case 1 pc ISO connector 1 pc Mounting parts: Hexagon nut M5 T 1 pc Mounting box 1 pc Release keys 2 pcs Metal bar 1 pc Plain washer 1 pc Outer trim ring 1 pc Spring washer...

  • Page 5: Installation/Connections

    Installation/Connections Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place. 3. Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture.
  • Page 7 2. DIN REAR-MOUNT (Method B) For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets. 1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
  • Page 8 Connection diagram Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other.
  • Page 9 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.

  • Page 10: Panel Controls

    Panel controls Front panel 1. DISP button 2. NEXT button 3. VOL knob/SEL button 4. Disc slot 5. LCD display 6. EJECT button 7. OPEN button 8. POWER button 9. AMS button 10. EQ button 11. MOD button 12. BAND/LOUD button 13.
  • Page 11 Inner panel Press OPEN button on the front panel to detach it. 25. SD/MMC card slot 26. Panel status indicator 27. RESET button (hole) Pressing RESET hole will erase the clock setting and stored stations. Panel status indicator lights up when you slide the panel down, flashes when you remove the panel.

  • Page 12: General Operations

    General operations Power button Press any button (except OPEN and EJECT) or insert disc to switch the unit on. Press POWER button to switch the unit off. Volume control Rotate VOL knob on the front panel to adjust volume level. Audio settings adjustment Press SEL button shortly and repeatedly to select a mode: VOL (volume) =>...
  • Page 13 Each displaying time is several seconds, and come back to 1'st position after several seconds. Notes: CT = clock time; FREQ = frequency. Equalizer setting Press EQ button to choose between an EQ sound effects: FLAT => CLASSICS => POP M => ROCK M => DSP OFF. BEEP function Press and hold SEL button;...

  • Page 14: Radio Operations

    Radio operations BAND selection Press repeatedly BAND/LOUD button to select your desired radio band in radio mode: FM1, FM2, FM3, MW. Each band can store 6 preset stations, for a total of 24 preset memory stations. Tuning Press PREV or NEXT button; the unit will automatically search a nearest statoin with a strongl signal. To search next station repeat this procedure.

  • Page 15: Radio Data System

    Radio Data System Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. AF (Alternative Frequencies) function Press AF/REG button to turn the AF function on or off. When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength, so that you do not have to retune the stations when driving between different transmitter coverage...
  • Page 16 previous mode and volume level. To interrupt traffic announcement press TA button shortly; it will not switch off the TA mode. PTY (Program Type) This radio will allow you to select the type of program required, and will search for a station broadcasting that type of program.
  • Page 17 Other parameter setting To choose the corresponding parameter, press and hold SEL button, then press it repeatedly until the display shows the needed parameter. Turn VOL knob to choose the needed value. After choosing, please leave the unit idle to activate. TA SEEK/TA ALARM When newly tuned station does not receive TP information for 5 seconds, the radio retunes to next station which has not the same station (PI –...

  • Page 18: Disc Operations

    Disc operations Loading/Eject a disc Insert the disc with the printed side facing upward into the slot. The CD will play automatically. Press EJECT button to eject the disc. If the disc is not removed from the slot within 10 seconds, it will automatically be loaded into the slot again.
  • Page 19 Searching file and directory Press button AMS button once to enter “Searching by track number” mode. The track number will blink on the display. Rotate VOL knob to select the track number. Press BAND/LOUD button to confirm the selection and play the selected song Mixed-CD Operations The unit can play the mixed-CD disc (when disc contains both CD audio tracks and MP3/WMA files).

  • Page 20: Sd/Mmc Memory Card/Usb Operations

    SD/MMC memory card/USB operations USB/SD/MMC notes USB functions (flash memory type) MP3 music play. SD/ MMC card support, 2in1 (SD/ MMC) support. USB flash memory. FAT 12/ FAT 16/ FAT 32 is possible FAT 12/16 (dir: 200 support, file: 500 support), FAT 32 (dir: 200 support, file: 500 support).
  • Page 21 If unit can't read the card, please check if the card is in good condition, or take out the card then insert it into the card slot once more. USB device loading When you insert a USB flash memory in the slot, the unit will search the MP3 files and start to play them automatically.

  • Page 22: Mp3/Wma Overview

    MP3/WMA overview Notes on MP3 and WMA MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 23 Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc. You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.

  • Page 24: Handling Compact Discs

    Handling compact discs Do not insert anything other than a CD into the CD loading slot. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.

  • Page 25: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 26: Specification

    Specification General Power supply 12 V DC Current consumption max. 15 A Maximum power output 50 Wx4 channels Fuse 15 A Dimensions (L x W x H) 178 x 50 x 160 mm Supported storages: CD/CD-R/CD-RW/USB/SD/MMC Supported formats: CDDA/MP3/WMA ESP: 40 sec.
  • Page 27 ......................27 ..................28 ....................29 ..................30 ................... 36 ..................... 38 ....................41 (RDS)................42 ....................46 SD/MMC /USB ........48 3/WMA ....................... 50 ................52 ......................52 ..........53 ................55...
  • Page 29 4. ISO M5 T (5X25 M5 (5X29,3...
  • Page 30 30°, « » « » « » ( « » ( DIN,...
  • Page 31 « » (...
  • Page 32 – – – « » (...
  • Page 33 OPEN;...
  • Page 35 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- (+)--- (-)---...
  • Page 36 DISP NEXT VOL/ EJECT OPEN POWER BAND/LOUD PREV 1/PLAY/PAUSE 2/SCN 3/RPT 4/SHF AF/REG AUX in...
  • Page 37 OPEN, SD/MMC- ) RESET RESET...
  • Page 38 (POWER) OPEN EJECT) POWER, : VOL ( ) => BAS ( ) => TRB ( ) => BAL ( ) => FAD ( VOL, MOD, : AUX => => CDP ( ) => => USB. BAND/LOUD; LOUD ON, DISP; -> PTY ->...
  • Page 39 -> ID3- -> -> PTY -> PTY- “NO CLOCK” “NO PTY” : FLAT => CLASSICS => POP M => ROCK M => DSP OFF ( BEEP ( SEL; BEEP OFF (BEEP ALL/BEEP 2ND). BEEP OFF – BEEP ALL – BEEP 2ND – «TEL CALL», «TEL CALL»...
  • Page 40 MP3-...
  • Page 41 BAND/LOUD, : FM1, FM2, FM3, MW. PREV NEXT; PREV NEXT. PREV NEXT, PREV/NEXT, MANUAL). AMS; AMS,...
  • Page 42 (RDS) RDS ( AF ( AF/REG, RDS. «ALARM»; REGIONAL AF/REG, REGIONAL. REG. REG ON ( , PI- REG OFF ( ): PI-...
  • Page 43 TA ( PTY ( RDS, PTY, 1-6, 1-6, Pop, Rock News, Affairs, Info Easy, Light Sport, Educate, Drama Classics Culture, Science, Varied Jazz, Weather, Finance, Country Children Nation, Social, Religion, Oldies Phone IN Folk Travel, Leis ure, Document...
  • Page 44 EON TA LO EON TA DX. EON TA LOCAL ( EON TA DISTANCE ( (EON TA), VOL, TA SEEK/TA ALARM TP (Traffic Program – (RETUNE), PI ( TA SEEK TA ALARM: PI SOUND/PI MUTE PI SOUND:...
  • Page 45 PI MUTE: RETUNE S/L (SHORT/LONG) «RETUNE» . «S» ; «L» Retune TA SEEK. MASK DPI/MASK ALL AF ( MASK DPI. MASK DPI MASK ALL RDS.
  • Page 46 EJECT, 1/PLAY/PAUSE, NEXT PREV, NEXT PREV, 2/SCN,...
  • Page 47 4/SHF, AMS, VOL, BAND/LOUD. MP3/WMA MP3/WMA (ESP). : 40 : 120 : 300...
  • Page 48 SD/MMC /USB USB/SD/MMC SD/ MMC, 2 1 (SD/MMC). FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( , 500 FAT 32 ( , 500 : 32 : 32 (id3tag 2.0) USB 2.0. USB: USB 2.0. : Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, MMC: : Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems,...
  • Page 49 USB- USB- USB- MOD. « ». USB- USB- USB-...
  • Page 50 3/WMA MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, PC “ ” “ ” 256. VBR, . VBR: WMA (Windows Media Audio) – Microsoft Corporation. , 64 CD-R CD-RW MP3: 44,1...
  • Page 51 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW...
  • Page 53 “ ”. POWER...
  • Page 54 RESET. (ERROR 1 – 11) (ERROR 1 – 11)
  • Page 55 . 15 D/CD-R/CD-RW/USB/SD/MMC CDDA/MP3/WMA CD, 120 MP3, 300 87,5 – 108,0 10,7 522 – 1620 – 18 RCA-...
