SoundMax SM-CDM1053 Instruction Manual

Cd/mp3/wma-receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SM-CDM1053
CD/MP3/WMA-RECEIVER
CD/MP3/WMA-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CDM1053 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SoundMax SM-CDM1053

Summary of Contents for SoundMax SM-CDM1053

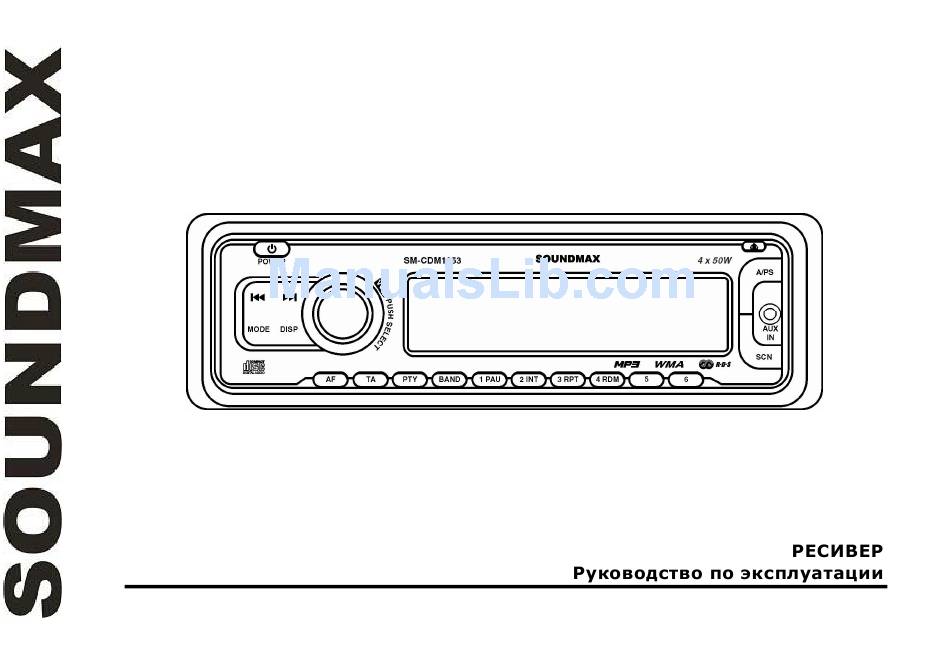

  • Page 1 SM-CDM1053 CD/MP3/WMA-RECEIVER CD/MP3/WMA- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS ....................2 IMPORTANT SAFEGUARDS ...................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature. Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result an outage.

  • Page 4: Accessories

    Accessories 1. Receiver 1 pc 2. Front panel 1 pc 3. Front panel case 1 pc 4. ISO adapter set 1 pc 5. Mounting parts: Rear support strap 1 pc Release key 2 pcs Screw 1 pc 1 pc Plain washer 3 pcs Spring washer 2 pc...

  • Page 5: Installation/Connection

    Installation/Connection Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle.
  • Page 6 1. Unit 2. Sleeve 3. Dash board 4. Hex nut 5. Lock washer 6. Plain washer 7. Car body 8. Metal strap 9. Tapping screw 10. M5X15 hex bolt Use the metal strap to fix the rear side of the unit. Determine a place for fixing and install the strap as shown in the picture.
  • Page 7 Trim frame installation To install the trim frame, press it to the unit body and push it to fix it in place. This should be done before installing the front panel; otherwise you are not able to install the trim frame. When the trim frame being installed, the side with the groove should face down and fixed first.

  • Page 8: Electrical Connection

    Electrical connection Connector A 1. - 2. - 3. - 4. Memory +12V 5. Auto antenna output 6. - 7. +12V (to ignition key) 8. Ground Connector B 1. Rear right speaker (+) 2. Rear right speaker (-) 3. Front right speaker (+) 4.

  • Page 9: Control Elements

    Control elements Front panel 1. PREVIOUS/NEXT buttons 2. POWER button 3. VOL knob/SELECT button 4. Display 5. OPEN button 6. A/PS button 7. AUX in jack 8. SCN button 9. 6 button 10. 5 button 11. 4/RDM button 12. 3/RPT button 13.

  • Page 10: Lcd Layout

    LCD layout 1. Track playback 2. Intro playback indicator 3. Repeat playback indicator 4. Random playback indicator 5. CD/MP3 playback indicator 6. Digit display 7. Track info on 8. Mute function indicator (not active) 9. Album info on 10. Music playback indicator 11.

  • Page 11: General Operations

    General operations Power button Press any button (except OPEN button) to switch the unit on. The display will show a message “WELCOME”. Press and hold POWER button to switch the unit off. Note: After the unit is off, volume level and radio current settings will be memorized, and when you turn the unit on it will resume the stored status you set.
  • Page 12 Loudness Press and hold SELECT button then press it repeatedly to select LOUD OFF (LOUD ON). If LOUD ON is displayed, it means that Loudness function is activated. This function is useful if you need to decrease the volume without loss of sound quality. To disable the function, select LOUD OFF with VOL knob. Equalizer (DSP) mode Press and hold SELECT button then press it repeatedly to select DSP OFF.

  • Page 13: Radio Operations

    Radio operations BAND selection Press repeatedly BAND button to select your desired radio band in radio mode: FM1, FM2, FM3, FM (OIRT), AM1 (MW1), AM2 (MW2). Each band can store 6 preset stations, for a total of 36 preset memory stations. Tuning Press PREVIOUS or NEXT button to manually adjust the radio frequency.
  • Page 14 and STEREO by rotating VOL knob. RDS function RDS (Radio Data System) service availability varies with areas. Please understand that if RDS service is not available in you area, the following service is not available either. AF (Alternative Frequencies) function Press AF button to turn the AF function on or off.
  • Page 15 programs available. Press PTY button twice to show the speech type program. Then press 1 - 6 number buttons to choose different speech programs. Each number button will show 3 different speech programs for you to choose (see table below). Button Music type programs Speech time programs...
  • Page 16 SEEK MODE SEEK 1: When SEEK 1 mode is activated, auto seek scan is stopped when station is detected even if user still presses PREVIOUS or NEXT button. SEEK 2: Auto seek scan is not stopped even station is detected if user presses PREVIOUS or NEXT button. When user releases the button, then seek stops when station is detected.

  • Page 17: Disc Operations

    Disc operations Loading/Eject a disc Open the front panel. Insert the disc with the printed side facing upward into the slot. Close the panel. The CD will play automatically. Open the front panel and press EJECT button to eject the disc. If the disc is not removed from the slot within several seconds, it will automatically be loaded into the slot again.
  • Page 18 ID3 Tag function If a MP3 file has ID3 Tag information in the supported ID3 format, such information will be displayed on the LCD while playback. Search function (for MP3, WMA) Cancel Random, Repeat and Intro functions before searching. Track search: Press A/PS button.

  • Page 19: Mp3/Wma Overview

    MP3/WMA overview Notes on MP3 and WMA MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.
  • Page 20 Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc. You should not write non-MP3 files or unneeded folders along with MP3 files on the disc otherwise it takes a long time until the unit starts to play MP3 files.

  • Page 21: Handling Compact Discs

    Handling compact discs Do not insert anything other than a CD into the CD loading slot. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use.

  • Page 22: Troubleshooting Guide

    Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution...

  • Page 23: Specification

    Specification General Power supply 12 V DC Current consumption max. 10 Maximum power output 50Wx4 channels Fuse Dimensions (L x W x H) 178 x 50 x 178 mm Temperature range - +60 Installation angle – +/-30 FM stereo radio Frequency range 65.0 –...
  • Page 24 ......................24 ..................25 ....................26 ..................27 ..............30 ................... 31 .................... 32 ..................... 33 ....................35 ....................39 3/WMA ....................... 42 ................44 ......................44 ..........45 ................47...
  • Page 26 ISO-...
  • Page 27 30°,...
  • Page 28 M5x15 – – –...
  • Page 29 OPEN.
  • Page 30 1. - 2. - 3. - +12 ) 6. -...
  • Page 31 PREVIOUS/NEXT POWER VOL/ SELECT OPEN A/PS 4/RDM 3/RPT 2/INT 1/PAU BAND DISP MODE EJECT ) RESET RESET...
  • Page 32 CD/MP3 ROCK CLASS FLAT...
  • Page 33 OPEN), «WELCOME». POWER, VOL, SELECT, : VOL ( ) => BAS ( ) => TRE ) => BAL ( ) => FAD ( VOL, VOLUME: 00, 02,.., 47 BASS/TREBLE: -7, -5,.., 0, +1, +2,..+5, +7 BALANCE: 10L,.., 10R FADER: 10R,.., 10F MODE, : AUX =>...
  • Page 34 DISP SELECT, LOUD OFF (LOUD ON). LOUD ON, LOUD OFF VOL. (DSP) SELECT, DSP OFF. : POP =>ROCK =>CLASS =>FLAT =>DSP OFF ( BEEP SELECT, BEEP OFF (BEEP ON). BEEP ON ( BEEP OFF ( DISP MP3-...
  • Page 35 BAND, : FM1, FM2, FM3, FM (OIRT), MW1 (AM1), MW2 ( PREVIOUS NEXT, PREVIOUS/NEXT; PREVIOUS NEXT. A/PS, A/PS; SCN. SELECT, DX (LOCAL). LOCAL,...
  • Page 36 LOCAL VOL. SELECT, STEREO MONO ( STEREO MONO VOL. RDS ( AF ( RDS. REGION. REG ON ( , PI- REG OFF ( ): PI- TA (...
  • Page 37 PTY ( RDS, PTY, 1-6, 1-6, Pop, Rock News, Affairs, Info Easy, Light Sport, Educate, Drama Classics Culture, Science, Varied Jazz, Weather, Country Finance, Children Nation, Social, Religion, Oldies Phone IN Folk Travel, Leisure, Document...
  • Page 38 SELECT VOL, TA SEEK/TA ALARM TA SEEK TA ALARM: MASK DPI/MASK ALL AF ( MASK DPI. MASK DPI MASK ALL RDS. RETUNE S/L (SHORT/LONG) «RETUNE» . «S» ; «L» Retune TA SEEK. SEEK1/SEEK2 SEEK 1: PREVIOUS NEXT. SEEK 2: PREVIOUS NEXT PREVIOUS NEXT,...
  • Page 39 EJECT, 1/PAU, PREVIOUS NEXT, PREVIOUS NEXT, Intro ( 2/INT,...
  • Page 40 4/RDM, MP3/WMA) ID3- ID3 Tag, A/PS. SELECT; SELECT. SELECT, A/PS. SELECT; VOL, SELECT, A/PS. SELECT, “A”. VOL, SELECT SELECT “NOT FOUND” (“ ”).
  • Page 41 ESP ( SELECT, “ESP12” (“ESP45”). VOL, “ESP 12“; “ESP 45”.
  • Page 42 3/WMA MPEG 3 CD-ROM, CD-R CD-RW. ISO 9660. “.mp3”. “.mp3”, “ MP3” “ ”, PC “ ” “ ” 256. VBR, . VBR: WMA (Windows Media Audio) – Microsoft Corporation. , 64 CD-R CD-RW MP3: 44,1...
  • Page 43 ISO 9660, CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW...
  • Page 45 “ ”. POWER RESET.
  • Page 46 (ERROR 1 – 11) (ERROR 1 – 11)
  • Page 47 . 10 - +60 – +/-30 65,0 – 74,0/87,5 – 108,0 10.7 MW (AM) 522-1620 CDDA/MP3/WMA CD/CD-R/CD-RW - 20 >60 CD/ 120 MP3/ 300 RCA- (2 ) RCA-...
