SoundMax SM-CDM1041 Instruction Manual

Cd/mp3-receiver
Hide thumbs Also See for SM-CDM1041:
Table of Contents

Advertisement

Quick Links

Download this manual
SM-CDM1041
CD/MP3-RECEIVER
CD/MP3-
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SM-CDM1041 and is the answer not in the manual?

Questions and answers

Related Manuals for SoundMax SM-CDM1041

Summary of Contents for SoundMax SM-CDM1041

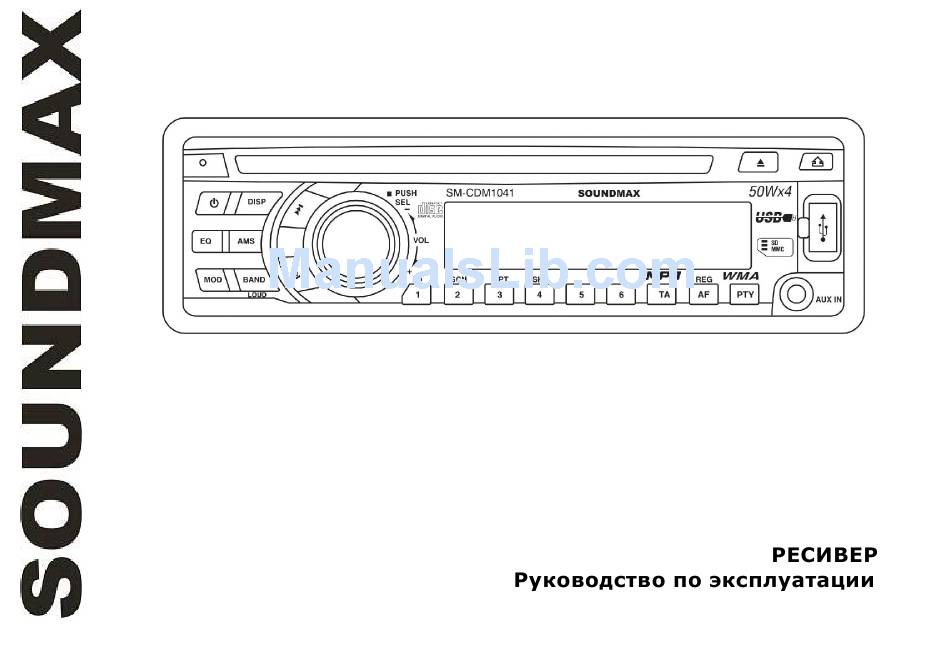

  • Page 1 SM-CDM1041 CD/MP3-RECEIVER CD/MP3- Instruction manual...

  • Page 2: Table Of Contents

    Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS ................... 2 IMPORTANT SAFEGUARDS ..................

  • Page 3: Important Safeguards

    Important safeguards Read carefully through the manual to familiarize yours with this high-quality sound system. Disconnect the vehicle's negative battery terminal while mounting and connecting the unit. When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious damage to the unit.

  • Page 4: Installation/Connections

    Installation/Connections First complete the electrical connections, and then check them for correctness. If you are not confident working with electrical wiring, removing and reinstalling interior panels, carpeting, dashboards or other components of your vehicle, please call your dealer in order to have the unit professionally installed.
  • Page 5 Installation method A After inserting the holder into the dashboard, select the appropriate tab and bend them inwards to secure the holder in place. Insert fingers into the groove in the front of frame and remove it. Insert the levers supplied with the unit to the grooves at both sides.
  • Page 6 Installation method B Note: Outer trim frame, hook, and mounting sleeve are not used for this installation. This is only intended as a general guide; contact the vehicle's manufacturer for specific instructions. This method of installation uses the screw holes at the sides of the unit and the holes of the existing vehicle mounting bracket.
  • Page 7 To detach the front panel The front panel of the unit may be removed as a theft deterrent. After removing the front panel, use the case provided to keep the front panel from getting damaged. 1. Press OPEN button to flip down the front panel. 2.

  • Page 8: Connection Scheme

    Connection scheme Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. Prohibit to make the conductors of auto antenna and ground touch with each other.

  • Page 9: Accessories

    Accessories Name Hexagon nut M5 T (3.5 mm) Mounting box (0.6 mm) Left key (1.0 mm) Right key (1.0 mm) Metal bar (0.8 mm) ISO connector Plain washer =5 mm Carrying case Outer trim ring Spring washer =5 mm Screw 5X5 mm Screw 5X25 mm...

  • Page 10: Panel Controls

    Panel controls Front panel 1. AMS button 2. EQ button 3. MOD button 4. BAND/LOUD button 5. PREV button 6. No 1/PLAY/PAUSE button 7. No 2/SCN button 8. No 3/RPT button 9. No 4/SHF button 10. No 5 button 11. No 6 button 12.
  • Page 11 Inner panel Press OPEN button on the front panel to flip it down. 25. SD/MMC-card slot 26. Light indicator 27. RESET button...

  • Page 12: General Operations

    General operations Power button Press any button (except OPEN) or insert disc to switch the unit on. Press the POWER button to switch the unit off. Volume control Rotate the VOL knob on the front panel to adjust volume level. Audio settings adjustment Press SEL button until the display shows: VOL =>...
  • Page 13 Choose PI sound or mute. PI sound refers to the reception noise when the AF function tries to scan alternative frequency. RETUNE mode To determine the initial time of automatic TA (Traffic Announcement) search. There are 2 modes: RETUNE L and RETUNE L. RETUNE L: 90 seconds.
  • Page 14 - In case of receiving a RDS station In radio mode: PS -> CT -> FREQ -> P TY In CD mode: CD -> CT -> (ID3 TAG) -> PS -> FREQ -> PTY * In case of no receiving CT or PTY Information, the display shows as “NO CLOCK” or “NO PTY”. - In case of receiving a non RDS station In radio mode: “NO CLOCK”...

  • Page 15: Radio Operations

    Radio operations Band selection Press the BAND/LOUD button repeatedly to select your desired radio band during RADIO mode: FM1, FM2, FM3, MW1. Automatic memory storing Press AMS button for 2 seconds, the radio searches from current frequency and checks the signal strength until one cycle is finished.

  • Page 16: Rds Function

    RDS function Note: RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. Press AF/REG button to switch ON or OFF RDS function. Setting RDS mode Whenever RDS is switch on, symbol “AF”...
  • Page 17 No2/SCN EASYM, LIGHT M No3/RPT CLASSICS, OTHER M No4/SHF JAZZ, COUNTRY NATION M, OLDIES FOLK M When you select the PTY SPEECH GROUP, the preset numbered buttons are shared as follows: Button Program No1/PLAY/PAUSE NEWS, AFFAIRS, INFO No2/SCN SPORT, EDUCATE, DRAMA No3/RPT CULTURE, SCIENCE, VARIED No4/SHF...

  • Page 18: Other Functions

    PI: Program Identification Code – for identifying code. PS: Program Service Name Broadcast – station name data expressed in alphanumerically character. TP: Traffic Program Identification – for traffic information broadcasting station. TA: Traffic Announcement Identification – showing traffic information is being transmitted or not. AF: Alternative frequencies –...

  • Page 19: Cd/Mp3/Wma Operations

    CD/MP3/WMA operations This unit can play disc types: CD/CD-R/-RW. Compatible with formats: MP3/WMA. Loading/Removing the disc Insert the disc into the disc slot with the printed side facing up; the unit will play the disc automatically. Press EJECT button to eject the disc. Switching to CD/MP3/WMA mode When a disc is inserted in the unit, press MOD button to switch to the CD/MP3/WMA mode.
  • Page 20 Selecting directory up/down Press No5 or No6 button to select directory downward or upward. If the MP3/WMA disc does not contain any directory, these buttons are not functional. Searching file and directory Press AMS button repeatedly to cycle through the following search modes: Searching by track number =>...
  • Page 21 3. Searching from root directory Press AMS button thrice to enter “Searching from root directory” mode. Rotate VOL knob to browse file or directory in the root directory. Press BAND/LOUD button to confirm and start playback if the selected title is a file. If the selected title is a directory, the display will show “D-DIR”.

  • Page 22: Mixed-Cd Operations

    Mixed-CD Operations The unit can play the mixed-CD disc (when disc contains both CD audio tracks and MP3/WMA files). When you insert a mixed-CD disc into the CD slot, it starts to play the CD audio tracks. If you want to play MP3/WMA files, press No5 button or No6 button, it will search the disc over and start to play the MP3 files.

  • Page 23: Usb Device Operations

    USB Device Operations The unit is equipped with a USB port on the front panel of the unit, you can insert a USB flash memory in the USB slot. When you insert a USB flash memory in the slot, the unit will search the MP3 files and start to play them automatically.
  • Page 24 Title/ Artist/ Album: 32 byte support. Multi card reader not support. USB 2.0 support. Note: USB format supports 2.0. Capacity: from 1 GB. SD cards brands: Canon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, etc. Capacity: up to 4 GB. MMC cards brands: Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems, etc.

  • Page 25: Mp3 Overview

    MP3 overview Notes on MP3 MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard. This product allows playback of MP3 files on CD-ROM, CD-R or CD-RW discs. The unit can read MP3 files written in the format compliant with ISO 9660. However it does not support the MP3 data written by the method of packet write.

  • Page 26: Esp Function

    CD-RW disc is recommended. Up to 16 characters are displayed for the name of an Album or a Track. ID3TAG version 1.x is required. Note that the unit may not play Tracks in the order that you wrote them to the disc. ESP function This unit has the electronic shockproof (ESP) function.

  • Page 27: Cleaning

    Cleaning Cleaning the cabinet Wipe with a soft cloth. If the cabinet is very dampen (not dropping wet) the cloth with a weak solution of soapy water, and then wipe clean. Cleaning discs Fingerprints should be carefully wiped from the surface of disc with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and macroscopic dirt, so gently wiping them with a soft cloth should remove must panicles.

  • Page 28: Troubleshooting Guide

    Troubleshooting guide Symptom Cause Solution No power The car ignition is not on. If the power supply is properly connected to the car accessory switch the ignition key to "ACC". The fuse is blown. Replace the fuse. Disc cannot be loaded. There is a disc inside the unit.

  • Page 29: Specification

    Specification General Power supply 12 V DC Current consumption max. 15 A Maximum power output 50 Wx4 channels Fuse 15 A Dimensions (L x W x H) 178 x 50 x 160 mm Supported storages: D/CD-R/CD-RW/USB/SD/MMC FM stereo radio Frequency range 87.5 - 108.0 MHz Usable sensitivity I.F.
  • Page 30 ..................... 30 ................31 ................32 ..................36 ..................37 ..................38 ..................40 ....................43 RDS ....................44 ....................46 CD/MP3/WMA ..............48 .............. 51 AUX IN ....................51 SD/MMC ................51 ................52 3 ......................54 ESP ..................... 55 ..................
  • Page 35 OPEN...
  • Page 37 M5 T (3,5 (0,6 (1,0 (1,0 (0,8 5X25 5X29,3...
  • Page 38 BAND/LOUD PREV No 1/PLAY/PAUSE No 2/SCN No 3/RPT No 4/SHF No 5 No 6 AF/REG AUX in OPEN EJECT VOL/ NEXT DISP POWER...
  • Page 39 OPEN, SD/MMC- RESET...
  • Page 40 (POWER) OPEN) POWER, SEL, : VOL ( ) => BAS ) => TRB ( ) => BAL ( ) => FAD ( VOL, : TA SEEK/ALARM => PI SOUND/MUTE => RETUNE L/S => MASK DP/IALL => BEEP 2’nd/ALL/OFF. VOL, : TA SEEK ALARM.
  • Page 41 ALARM: PI SOUND/MUTE PI SOUND PI MUTE RETUNE Retune-S Retune-L – Seek. RETUNE S: TA SEEK 30 RETUNE L: TA SEEK 90 Retune TA SEEK. MASK : MASK DPI MASK ALL. VOL, MASK DPI: MASK ALL: RDS. BEEP BEEP 2nd: BEEP ALL: BEEP OFF:...
  • Page 42 MOD, : AUX => RADIO => CD => SD => USB. LOUD) BAND/LOUD, (ON) (OFF) LOUD. DISP, : PS ->CT ->FREQ ->PTY CD: CD ->CT ->(ID3 TAG) ->PS ->FREQ ->PTY “NO CLOCK” “NO PTY”. : “NO CLOCK” ->FREQ->”NO PTY” CD -> “NO CLOCK” -> FREQ -> “NO PTY” : CT = clock time ( ) FREQ = frequency ( : FLAT =>...
  • Page 43 RDS ( BAND/LOUD, : FM1, FM2, FM3, MW1. (1-6), PREV/NEXT, «MANUAL», PREV/NEXT PREV/NEXT, PREV/NEXT, (1-6).

  • Page 44: Rds

    AF/REG, RDS. «AF». RDS. «AF» «ALARM»; AF/REG REG. PTY, : PTY MUSIC GROUP ) => PTY SPEECH GROUP ( ) => GROUP PTY OFF PTY MUSIC GROUP PTY SPEECH GROUP PTY MUSIC GROUP, No1/PLAY/PAUSE POPM, ROCKM No2/SCN EASYM, LIGHT M...
  • Page 45 No3/RPT CLASSICS, OTHER M No4/SHF JAZZ, COUNTRY NATION M, OLDIES FOLKM PTY SPEECH GROUP, No1/PLAY/PAUSE NEWS, AFFAIRS, INFO No2/SCN SPORT, EDUCATE, DRAMA No3/RPT CULTURE, SCIENCE, VARIED No4/SHF WEATHER, FINANCE, CHILDREN SOCIAL, RELIGION, PHONE IN TRAVEL, LEISURE, DOCUMENT TA ( Local ( )/distance ( LOCAL EON TA DISTANCE (...
  • Page 46 LOCAL ( EON TA DISTANCE ( PI, PS, TP, TA, AF, EON – – – – EON: Enhanced Other Networks EON ( «TEL CALL», «TEL CALL» RESET...
  • Page 47 ERROR (...

  • Page 48: Cd/Mp3/Wma

    CD/MP3/WMA : CD/CD-R/-RW. : MP3/WMA. OPEN, EJECT, CD/MP3/WMA MOD, CD/MP3/WMA. PREV NEXT, PREV NEXT No1/PLAY/PAUSE No2/SCN...
  • Page 49 No3/RPT No4/SHF MP3/WMA => => => AMS, VOL, BAND/LOUD. AMS, No1/PLAY/PAUSE A, B, C, 1 S, T, U, 7 No2/SCN D, E, F, 2 PREV V, W, X, 8 No3/RPT G, H, I, 3 NEXT Y, Z, No4/SHF J, K, L, 4 DISP POWER _, -, +, 0...
  • Page 50 P, Q, R, 6 BAND/LOUD. «NO FOUND». «D-DIR». BAND/LOUD. AMS, BAND/LOUD «D- DIR». BAND/LOUD AMS, «D- DIR». BAND/LOUD MP3: MPEG1 Audio Layer 3 (44.1 32, 48, 64, 96, 128, 192, 256, 320...

  • Page 51: Aux In

    MP3/WMA MP3/WMA No6, No6, AUX In AUX. SD/MMC SD/MMC SD/MMC SD/MMC MOD. SD/MMC CD/MP3/WMA /USB ».

  • Page 52: Usb

    MOD. CD/MP3/WMA /USB ». USB/SD/MMC SD/ MMC, 2 1 (SD/MMC). FAT 12/ FAT 16/ FAT 32 FAT 12/ 16 ( , 500 FAT 32 ( , 500 : 32 : 32 (id3tag 2.0)
  • Page 53 USB 2.0. USB: USB 2.0. : Cannon, Fuji film, Palm, Motorola, Microsoft, IBM, HP, Compaq, Sharp, Samsung, MMC: : Ericsson, Nokia, Motorola, HP, Palm, Sanyo, Microsystems,...
  • Page 54 MPEG 3 CD-ROM, CD-R ISO 9660. «.mp3». «.mp3», « MP3» « », PC « » « » 256. VBR, . VBR: CD-R CD-RW, 44,1 ISO 9660,...

  • Page 55: Esp

    CD-R MP3 CD-R CD-RW CD-R CD-RW CD-R CD-RW ID3TAG. (ESP). : 40 : 120 : 300...
  • Page 58 « ». RESET.
  • Page 60 12 , . 15 D/CD-R/CD-RW/USB/SD/MMC 87,5 – 108,0 10,7 522 – 1620 – 18 . 2000...
