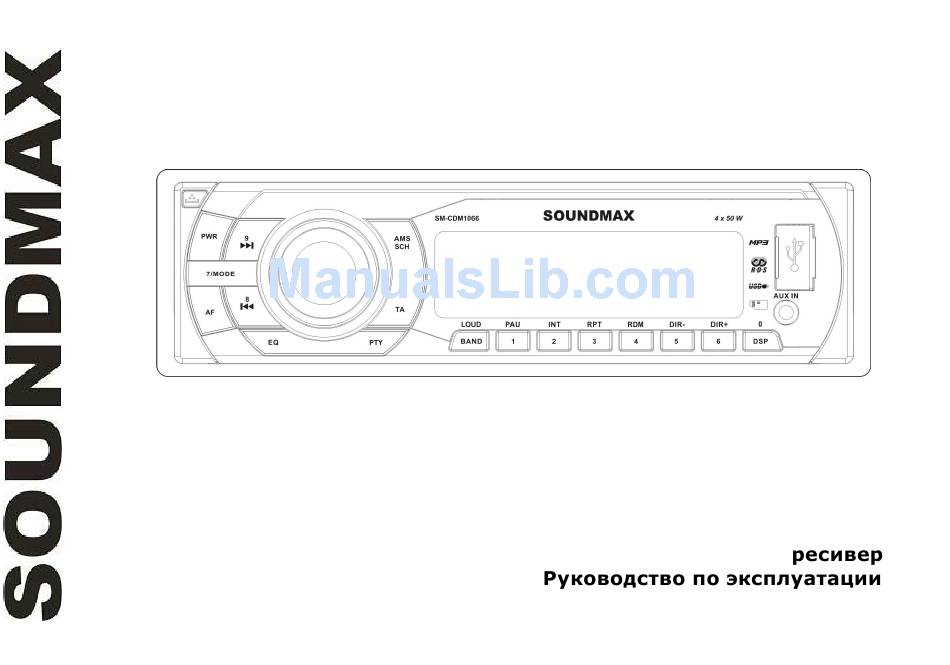

- Page 1 SM-CDM1066 CD/MP3 receiver CD/MP3- Instruction manual...
-
Page 2: Table Of Contents
Dear customer! Thank you for purchasing our product. For safety, it is strongly recommended to read this manual carefully before connecting, operating and/or adjusting the product and keep the manual for reference in the future. Table of contents TABLE OF CONTENTS .............................. 2 IMPORTANT SAFEGUARDS............................. -
Page 3: Important Safeguards
Important safeguards Read carefully through this manual to familiarize yourself with this high-quality sound system. The beginning of operation is the moment of the unit installation. Before use the device in winter it is recommended to heat up the passenger compartment during 20 seconds or to the operation temperature. Use the unit with the temperature that goes beyond the operation temperature greatly decreases the operation resource of the screen and other components of device and can result an outage. -
Page 4: Accessories
Accessories Receiver 1 pc Front panel 1 pc Carrying case 1 pc Connector 2 pcs Mounting parts: Hexagon nut 1 pc Mounting sleeve 1 pc Release keys 2 pcs Metal bar 1 pc Outer trim frame 1 pc Plain washer 1 pc Spring washer 1 pc... -
Page 5: Installation/Connection
Installation/Connection Choose the mounting location where the unit will not interfere with the normal driving function of the driver. Before finally installing the unit, connect the wiring and make sure that the unit works properly. Consult with your nearest dealer if installation requires the drilling of holes or other modifications of the vehicle. - Page 6 1. Install the sleeve into the dashboard; ensure it is installed with the correct side and there are no obstacles (wires, dashboard elements, etc) for the unit installation. 2. After installing the sleeve into the dashboard, bend tabs fitting to the size of the dashboard to fix the sleeve in place.
- Page 7 2. DIN REAR-MOUNT (Method B) For this method, use the screw holes in the lateral sides of the unit. Fix the unit with the help of the factory radio mounting brackets. 1. Select a position in which the screw holes of the brackets (3) are aligned with the screw holes in the unit body, and screw in two screws (2) in each side.
- Page 8 Connection diagram Notes: In spite of having any kinds of speaker system, must use 4 ohms impedance of speaker to reduce the distortion during high volume level. It is prohibited making the conductors of auto antenna and ground touch with each other.
- Page 9 Using the ISO Connector 1. If your car is equipped with the ISO connector, then connect the ISO connectors as illustrated. 2. For connections without the ISO connectors, check the wiring in the vehicle carefully before connecting, incorrect connection may cause serious damage to this unit. Cut the connector, connect the colored leads of the power cord to the car battery as shown in the colour code table below for speaker and power cable connections.
-
Page 10: Control Elements
Control elements Front panel 1. OPEN button 2. PWR button 3. 9/NEXT button 4. SELECT button/VOLUME regulator 5. AMS/SCH button 6. Display 7. 7/MODE button 8. AF button 9. 8/PREVIOUS button 10. EQ button 11. PTY button 12. TA button 13. -
Page 11: Lcd Layout
Inner panel Press OPEN button on the front panel to detach it. 1. RESET button (hole) 2. EJECT button 3. SD card slot 4. Disc slot Pressing RESET hole will erase the clock setting and stored stations. LCD layout 1. Playback indicator 2. -
Page 12: General Operations
General operations Power button Press PWR button on the panel to switch the unit on. Press this button to switch the unit off. Volume control Rotate VOLUME regulator to adjust volume level. Audio settings adjustment Press SELECT button shortly and repeatedly to select an option: BAS (bass) => TRE (treble) => BAL (balance) =>... - Page 13 Loudness control Press and hold LOUD/BAND button until LOUD ON is displayed. LOUD function is to emphasize the bass output. Press and hold this button again to switch loudness off. Equalizer setting Press repeatedly EQ button to choose between sound effects: FLAT => POP => ROCK => CLASSICS => EQ OFF. Beep Press repeatedly SELECT button until the display shows BEEP ON (OFF).
-
Page 14: Radio Operations
Radio operations Band selection Press repeatedly LOUD/BAND button to select your desired radio band in radio mode: FM1, FM2, FM3, FM4 (OIRT), MW1 (AM1), MW2 (AM2). Each band can store up to 6 preset stations, for the total of 36 preset memory stations. - Page 15 Radio Data System RDS (Radio Data System) service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available, either. AF (Alternative Frequencies) function Press AF button to turn the AF function on or off. When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station with the same PI (Program Identification) as the current station but with stronger signal strength, so that you do not have to retune the stations when driving between different transmitter coverage areas.
- Page 16 buttons to choose different music programs. Each number button will show 3 different speech programs for you to choose. When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected. If no buttons are pressed within several seconds, previously selected PTY is searched.
-
Page 17: Disc/Usb/Sd Operations
Disc/USB/SD operations Insert/Eject discs Open the front panel. Insert a disc into the disc slot with label side up. The disc will be automatically loaded into the unit. The first file in the root folder will be played. Open the front panel and press EJECT button to eject the disc from the slot. If the disc is not removed from the slot within several seconds, it will be automatically loaded into the slot again. - Page 18 Play/Pause Press PAUSE/1 button to pause the playback, press one more time to resume normal playback. Intro playback When INT/2 button is pressed, the first several seconds of each track on the storage is played. Press again to stop intro and listen to track. Repeat playback When RPT/3 button is pressed, playback of the selected track will be continually repeated until the track repeat mode is cancelled by pressing RPT/3 button again.
- Page 19 Searching from root directory: Press AMS/SCH button 3 times, then root directory search mode is activated. Press PREVIOUS/NEXT buttons or rotate VOLUME regulator to select a file or folder name from the list. Then press SELECT button; if selected name is a file name, the file will start to play; if the selected name is a folder name, its content list will be displayed.
-
Page 20: Handling Compact Discs
Handling compact discs Do not insert anything other than a CD into the CD loading slot. Do not use cracked, chipped, warped, or otherwise damaged discs as they may cause skipping or noise damage the player. Handle the disc only by the edges (as shown in the picture). To keep discs clean do not touch its surface. Store discs in their cases when not in use. -
Page 21: Troubleshooting Guide
Troubleshooting guide Below is a table describing simple measures that can help you eliminate most problems likely to emerge when this unit is in use. If below measures do not help, turn to a service center or to the nearest dealer. Symptom Cause Solution... -
Page 22: Specification
Specification General Power supply 12 V DC Current consumption <15 A Fuse 15 A Maximum power output 4 x 50 W Dimensions/Net weight 178 x 50 x 160 mm/1.2 kg Temperature range - +60 Installation angle – +/-30 FM stereo radio Frequency range 65 –... - Page 23 ................................23 ..........................24 ............................25 ..........................26 ............................31 ..........................32 ..............................33 ............................... 36 /USB/ SD................... 39 ......................... 42 ............................... 42 ................. 43 ........................44...
- Page 26 « » (...
- Page 27 « » ( – – –...
- Page 28 OPEN,...
- Page 30 ISO, (+)--- (-)--- (+)--- 12 (+)/ (-)--- (+)--- ((-)--- (+)--- (-)---...
- Page 31 OPEN 9/NEXT SELECT/ VOLUME AMS/SCH EJECT 7/MODE 8/PREVIOUS LOUD/BAND 1/PAU 2/INT 3/RPT 4/RDM 5/DIR- 6/DIR+ 0/DSP 22. USB-...
- Page 32 OPEN, ) RESET EJECT RESET Rock Classic...
- Page 33 VOLUME, SELECT : BAS ( ) => TRB ) => BAL ( ) => FAD ( ) => BEEP => TAVOL => STEREO/MONO => EON ON/OFF => VOL VOLUME, SEL, DSP OFF (DSP ON). VOL+/VOL- : POP M => ROCK M => CLASSICS => FLAT => DSP OFF ( MODE, =>...
- Page 34 ERR (« »). PREVIOUS NEXT, PREVIOUS NEXT, DSP, SELECT BEEP ON (OFF). VOLUME, BEEP ON ( BEEP OFF ( SEL, LOUD ON (OFF). VOL+/VOL- LOUD ON OFF ( RDS- => => PTY => PS USB/SD: => => => PTY (“NO PTY” PTY) =>...
- Page 35 MP3-...
- Page 36 LOUD/BAND, : FM1, FM2, FM3, FM4 (OIRT), MW1 (AM1), MW2 (AM2). PREVIOUS NEXT; PREVIOUS NEXT. PREVIOUS NEXT MANUAL. PREVIOUS/NEXT AMS/SCH; AMS/SCH, SELECT STEREO (MONO). VOLUME, (STEREO) (MONO).
- Page 37 RDS ( AF ( RDS. EON (Enhanced Other Networks – SELECT EON ON (OFF). VOLUME EON ON ( OFF ( REG ON ( , PI- REG OFF ( ): PI- TA (...
- Page 38 PTY ( RDS, PTY, 1-6, 1-6,...
- Page 39 /USB/ EJECT. USB- USB- USB/SD USB: USB 1.1 2.0. . SD: FAT32. USB- ID3- MP3- . ID3-...
- Page 40 PAUSE/1, NEXT PREVIOUS, INT/2, RPT/3, RDM/4, DIR-/5 DIR+/6 MP3- AMS/SCH ***. (0~9) SELECT AMS/SCH...
- Page 41 VOLUME SELECT 1/PAU A, B, C, D 6/DIR+ P, Q, R, 6 2/INT D, E, F, 2 7/MODE S, T, U, 7 3/RPT G, H, I, 3 8/PREVIOUS V, W, X, 8 4/RDM J, K, L, 4 9/NEXT Y, Z, Space, 9 5/-DIR- M, N, O, 5 0/DSP...
- Page 43 “ ”. POWER...
- Page 44 12 , /1,2 - +60 – +/-30 65 – 74 / 87,5 – 108,0 10,7 522 – 1620 CDDA/MP3 CD/CD-R/CD-RW, USB/SD CD/120...
- Page 45 – 18 >55 RCA (2 ) 2010 – 2019) (2011) R31982101-01792...
