Summary of Contents for Sirius Range Hoods SL-EM4190X

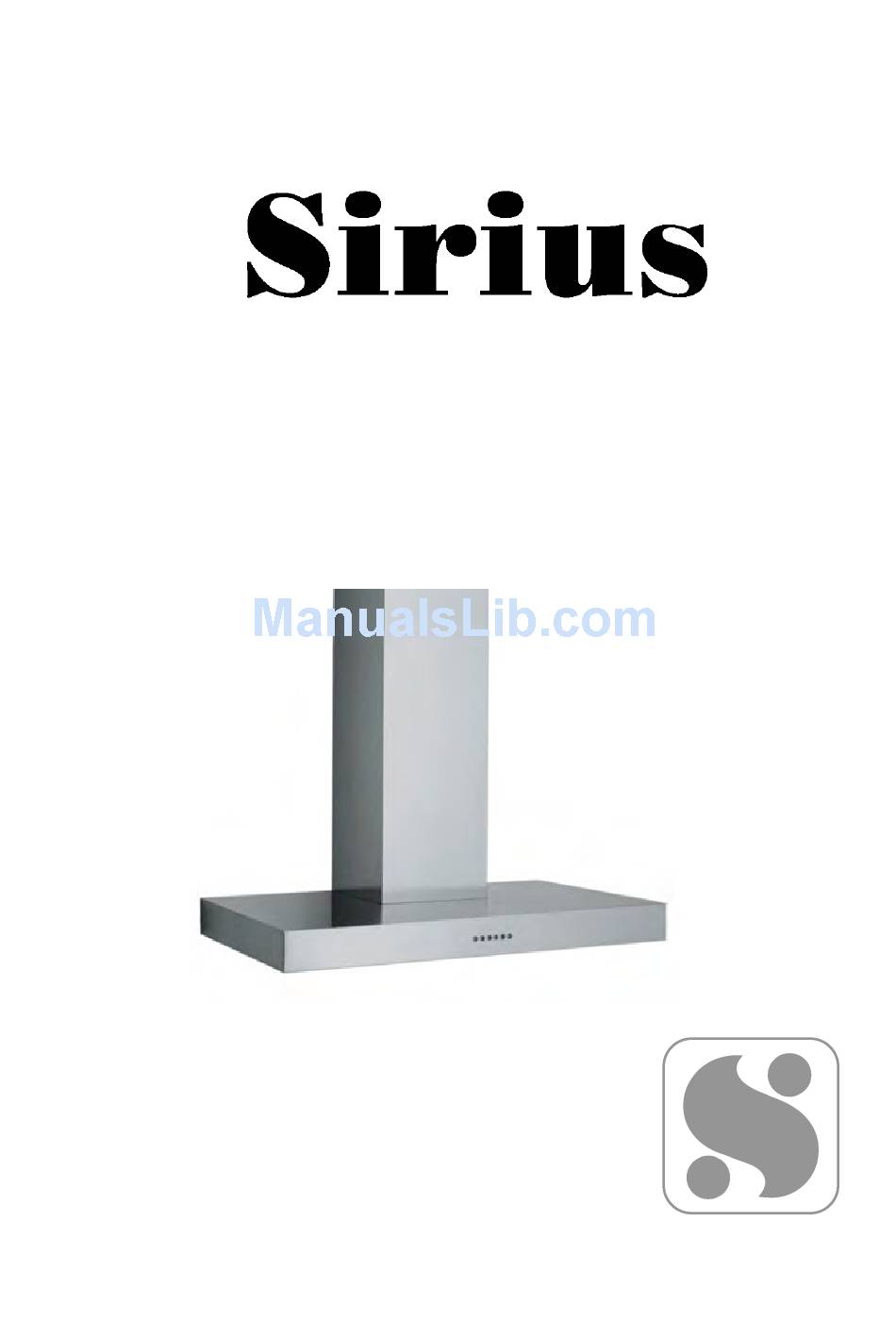

- Page 1 INSTRUCTION & INSTALLATION MANUAL SL-EM4190X...
-
Page 2: Installation
If the appliance is fitted with a power supply cord WARNINGS and plug, the appliance must be installed so these are easily accessible. The distance between the bottom of the cooking surface and the bottom of the cooker hood must be The use of flammable materials within close a minimum of 650mm for electric cooking, and proximity of cooking appliances is not recom-... - Page 3 Wall fixing: By using the special drilling jig which is Diagram 4 supplied with the hood, perforate the wall according to the pattern indicated by the jig. Pay attention not to damage water pipes or electrical wiring etc. Diagram 2 Attach bracket (S) to the wall with appropriate screws .
- Page 5 INSTALLING EXTERNAL FAN MOTOR Types of Installation: To make the installation easy, the motor can be fixed on the wall, on the ceiling, or on the floor in a horizontal or vertical position Electrical connection: There is a cord to connect the motor to the hood.
-
Page 6: Maintenance
OPERATIONS MAINTENANCE A Light switch on/off B Fan motor on/off 1st level To Replace lamp: Disconnect from power supply. C 2nd speed level Remove the glass blocking ring (A) by levering with a screw driver. This will also remove the glass (B). D 3rd speed level Be careful not to drop the glass cover. - Page 7 To Clean the filters, use warm soapy water or cleanser specially deigned for this purpose. To clean hood itself, use tepid water and neutral detergents. Any abrasive cleaning products should be avoided. For stainless steel there are specialized products available which we strongly suggest you use.
