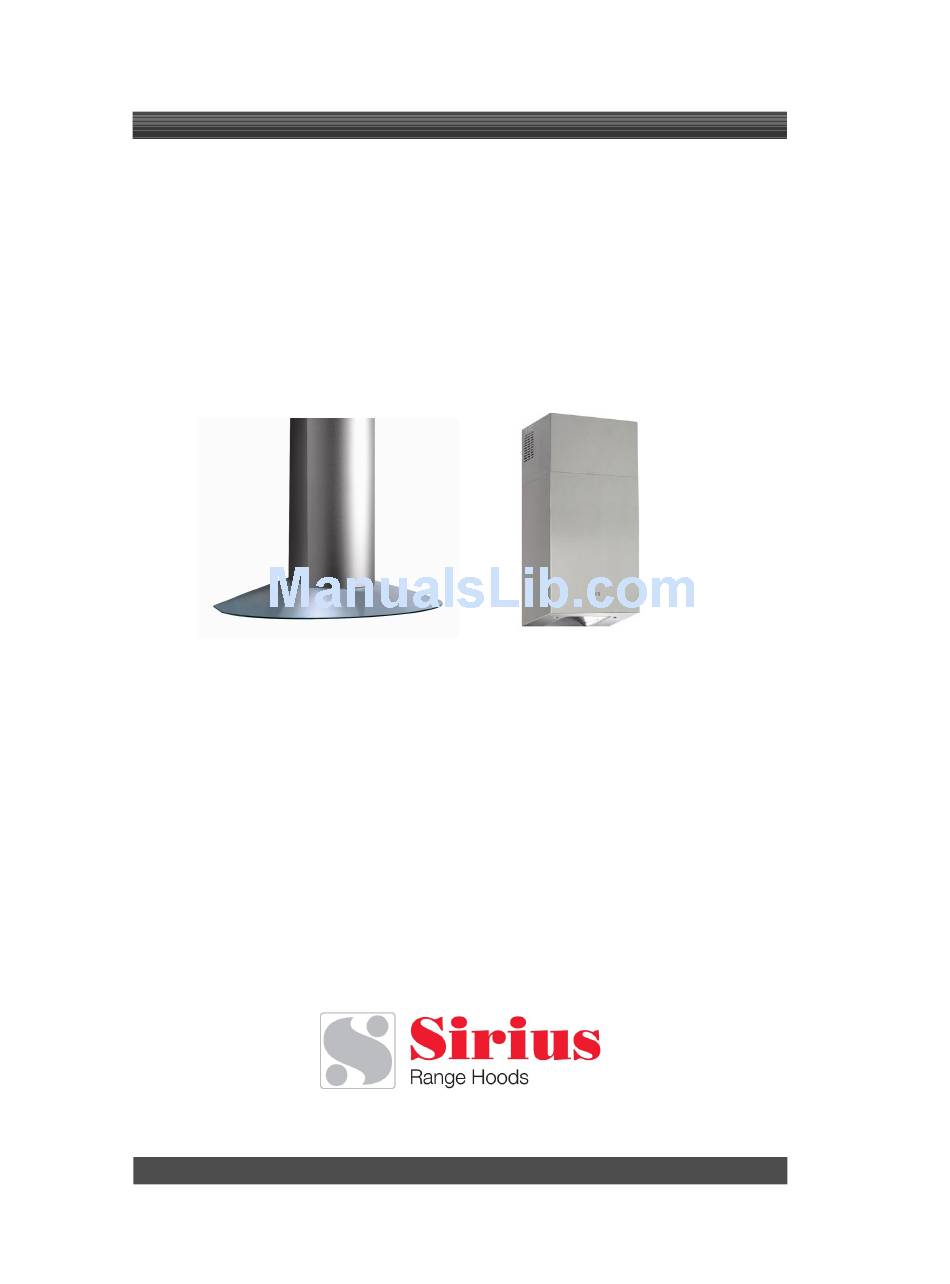

I N S T A L L A T I O N
I N S T R U C T I O N S
CARE AND USE MANUAL FOR:
CONTEMPORARY WALL RANGE HOODS
Models covered by these instructions:
SU202 & SU 207
* * * B E F O R E I N S T A L L A T I O N * * *
ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAINED
DURING SHIPPING
* * * S H I P P I N G D A M A G E * * *
MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT
Telephone (Toll Free): 866.528.4987
Fax (Toll Free): 866.365.9204
www.siriushoods.com info@siriushoods.com

Advertisement

Table of Contents
loading

Related Manuals for Sirius Range Hoods SU 207

Summary of Contents for Sirius Range Hoods SU 207

  • Page 1 CONTEMPORARY WALL RANGE HOODS Models covered by these instructions: SU202 & SU 207 * * * B E F O R E I N S T A L L A T I O N * * * ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAINED...
  • Page 2 W A R N I N G S Thank you for purchasing a Sirius Range Hood. Please read all the instructions in this manual before installing the appliance. Save these instructions for future reference. The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure they do not play with the appliance.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS BEFORE YOU BEGIN DUCTING External Venting Requirements Duct Run Calculation ELECTRICAL Electrical Supply INSTALLATION Positioning the Range Hood Marking the Fixing Holes for the Range Hood Fixing the Main Support Bracket Chimney Installation Hanging the Range Hood Connecting Electricity and Ducting Connecting Chimneys Connecting the Screen (SU 202 only)

  • Page 4: Before You Begin

    BEFORE YOU BEGIN manufacturer declines responsibility in the event of failure to observe the instructions given here for installation, maintenance suitable operation of product. The manufacturer further declines all responsibility for injury due to negligence and the warranty of the unit automatically expires due to improper maintenance and/or installation.

  • Page 5: Electrical

    Maximum Run 6” or 3 1/4 x 10” duct 100 FT Deduct Each 90 elbow used 15FT Each 45 elbow used Each 6” or 3 1/4 x 10” duct Transition used Each 3’1/4 x 10” to 6” Transition used Side Wall with damper 30FT Roof Cap 30FT...

  • Page 6: Installation

    I N S T A L L A T I O N Positioning the Range Hood Determine the center point of the range hood. This is generally the center of the range. Make a mark on the wall a minimum of 25” above the top of an electric range.

  • Page 7: Chimney Installation

    applications. Wherever possible, it advisable to place blocking between the studs, behind the drywall, to attach the support bracket to (refer to Figure 4). Drill the appropriate size holes at the marks made earlier and fix the Support Bracket (“S”) securely to the wall.

  • Page 8: Connecting Electricity And Ducting

    These screws are also used to make minor adjustments to the levelling of the range hood. Ensure the hood is level. Locate the two holes “C” inside the housing of the range hood and secure the range hood to the wall once the range hood is perfectly level and vertical.

  • Page 9: Re-Circulating Requirements

    Figure 12 Figure 13 grit present – if there is this will most definitely crack the glass. The plastic washers must be positioned be- tween the screw head and the glass. Fit the screen – please have some- one hold this in place whilst another person puts in the screws.

  • Page 10: Functions

    NEVER dispose cigarette ashes, ignitable substances or any foreign objects into blowers. Cooking that generates flame is not recommended as this hood is equipped with a thermal overload that will shut down the motor if it senses excessive heat. frying, oil in the pan can easily overheat and ignite.

  • Page 11: Cleaning The Hood

    Allow filters to dry before replacing them, otherwise water will be drawn into the blower. If a carbon filter has been fitted, this must be replaced every 6 months as a minimum, depending on usage type cooking that performed. It is suggested that a spare set of carbon filters is kept on hand.

  • Page 12: Warranty

    WARRANTY SERVICE To qualify for warranty service, you must notify Sirius Range Hoods at the address stated below or call toll free USA or Canada 1-866-528-4987 and provide the model number, description of the fault or defect and original date of purchase.

This manual is also suitable for:

Su202
