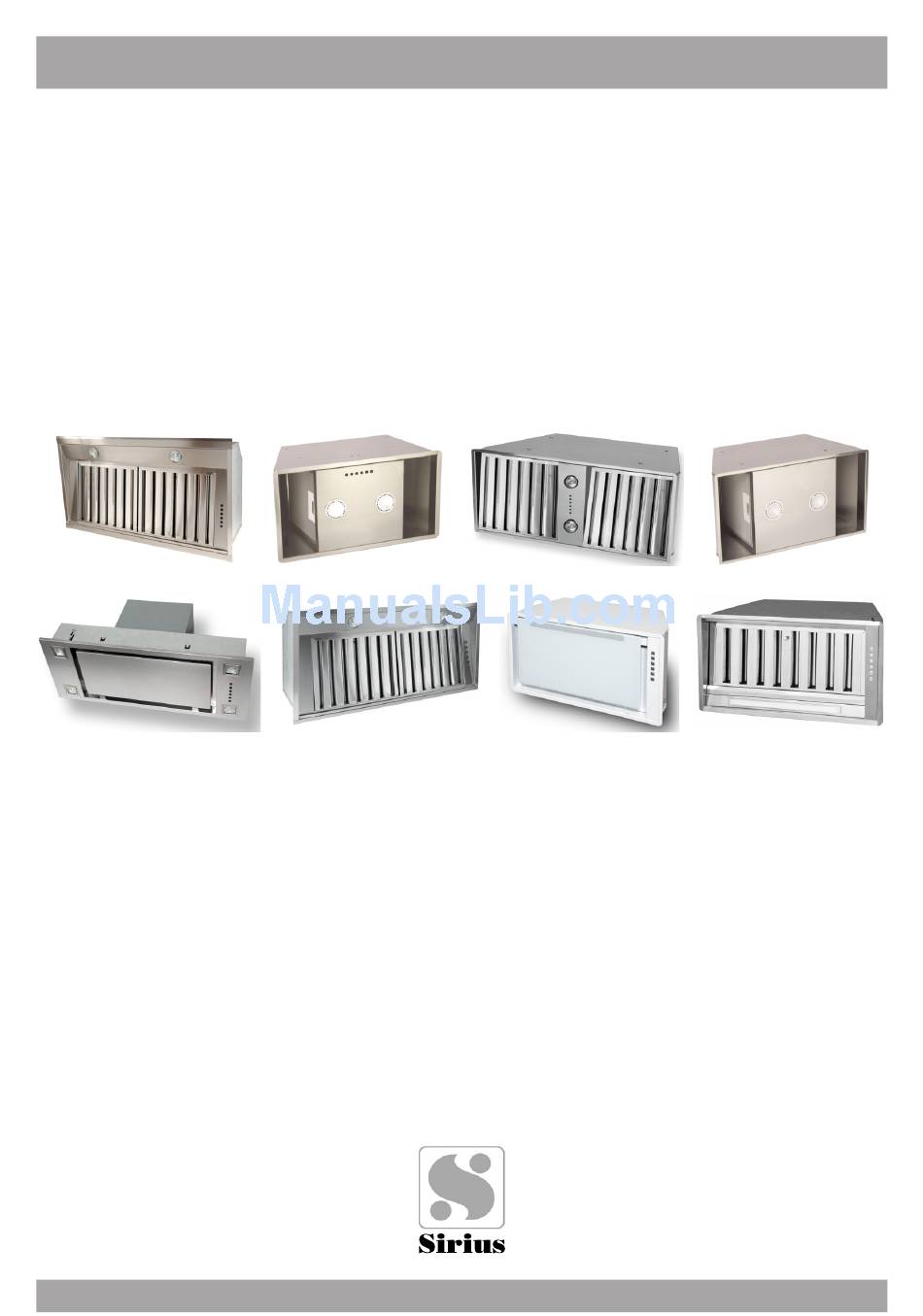

INSTRUCTIONS CARE AND USE MANUAL FOR: BUILT-IN RANGE HOODS Models covered by this instructions: SU900 -SUT900 - SUE900 - SU901 - SU902 - SU903 SU908 - SU906 - SU913 *** BEFORE INSTALLATION *** ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAINED...
W A R NI N G Thank you for purchasing a Sirius Range Hood. Please read all the instructions in this manual before installing the appliance. Save these instructions for future reference. Only use this appliance as an exhaust ventilation system for the removal of cooking vapors.
TABLE OF CONTENTS BEFORE YOU BEGIN DUCTING External venting Requirements Duct Run Calculation ELECTRICAL Electrical Supply INSTALLATION Applications Connecting Electricity and Ducting Re-Circulating Requirements OPERATING PROCEDURES General Advice Functions MAINTENANCE Cleaning the Filter Cleaning the Hood Light Bulb Replacement WARRANTY...
B E FOR E Y OU BEG I N The manufacturer declines all responsi- BEFORE YOU BEGIN: It is advisable to test bility in the event of failure to observe the run the range hood before installation. instructions given here for installation, maintenance and suitable operation of BEFORE STARTING –...
The ducting connection to the hood Duct Run Calculation. must be in line with the central verti- The maximum duct run before effecting cal axis of the range hood 1” away from the performance of the hood is 100’. Cal- the back wall on which the hood is to be culate your duct run by measuring linear mounted.
X 26” 11/16 Applications SU901 32” X 16” 13/32 3/16 The SU900 - SUT900 – SUE900 can either be installed inside a wall cabinet SU902 10” X 26” ½ 25/64 (provided the inside depth is greater than 11”) or used in a custom designed SU903 27”...
Page 7
Installing a SCH31A with SU900 - SUT900 – SUE900. Hold the Sch31A un- der the cabinet and Screw it to the 4 hole locations. Make sure it lines up with the cut out in your cabinet. The power pack has pressure springs (to be adjusted) on the front and back that will “hook”...
Page 8
There are four holes on the inside of the Install the front part of the liner adjusting SUT900 to fix the unit into the edge of it to the depth of the cabinet. (refer to fi- gure 6). the base of the wooden hood (refer to figure 4).
The power pack has pressure springs (to Insert and Fix the 4 clamping levers as be adjusted) on the front and back that described in the pictures 9. will “hook” onto the top surface of the underside of the hood when it is pushed up into the hole that has been cut out (refer to figure 3).
Page 10
INSTALLATION SU906 To install the appliance please respect Before installing the appliance, make the follow instructions. sure that none of the parts is damaged The appliance must be install by com- in any way. In case of damaged parts, petent authorities. In order to do not contact your retailer and do not proceed damage the electronic parts of the ap- with installation.
Page 11
At this point, insert the range hood in- Insert the LED bar on the appropriate side the kitchen cabinet until the fixed hole until it will be hooked into. springs will be hooked into. Fix the range hood to the cabinet, in the front and rear sides, using by the screws equipped.
Connect the appropriate length of duc- At the end, place the grease filters that ting to the fan exhaust point and join up were removed before. with the ducting to the exterior. Do not fix the ducting to the range hood exhaust outlet with screws-use duct tape.
O PER A T ING PROC EDURES Read all the instructions before opera- FUNCTION ting the appliance. Save these instruc- tions for future reference. SU900–SU901–SU902–SU903-SU908- SU906-SU913 (Fig. 12). General Advice. Ensure that the grease filters are in place. A: Light ON/OFF button Without these components, operating B: Blower Speed 1 (low) or OFF blowers could catch on to hair, fingers...
Page 14
RC001 Generatiing a new transmiissiion code: The radio control system is provided with ADIO ONTROL preset codes. Should new codes be required, Radio control used for the remote operation proceed as follows: Press simultaneously but- of ducted cooker hoods. tons: TECHNICAL DATA - Alkaline battery powered: 12 V mod.
Page 15
(within 5 seconds). Leds flashing 6 times indi- cate the procedure is completed. WARNING! This operation deletes perma- nently the preset codes. Emergency button: In the event that the radio control does not work, use the emergency button to switch the appliance off.
Warning The battery should be repla- Filter requires washing indicator: after ced every year to guarantee the optimal 30 hours of use, all the buttons will li- range of the transmitter. To replace the ght up to remind you that the grease filter exhausted battery, take the plastic lid should be cleaned.
Light Bulb Replacement. FOR SU906 - SU913 (if in doubt, call 877-474-8770) Substitution of the LED bar: Using an appropriate tool, remove the Turn blower and lights off. Make sure the LED bar from its seat (refer to Fig. ????), lights are cool.
Three Year Limited Warranty YOU MUST REGISTER THE PURCHASE OF YOUR PRODUCT ON LINE AT www.siriuscappe. com/usa/warranty.htm TO CONVALIDATE YOUR WARRANTY. YOU CAN FIND THE DATA OF YOUR HOODS ON A LABEL INSIDE THE HOOD. JUST REMOVE THE GREASE FILTER TO READ IT. WARRANTY SERVICE To qualify for warranty service, you must notify Sirius After sale service at the email ad- dress stated below or call toll free USA 1-877-474-8770 and provide the model number,...
