I N S T A L L A T I O N
I N S T R U C T I O N S

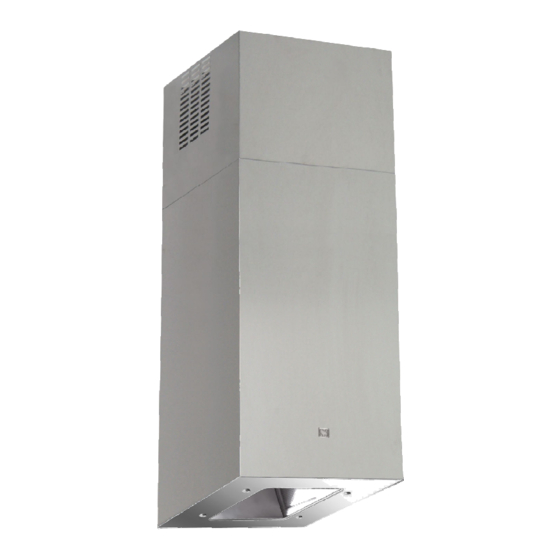

CARE AND USE MANUAL FOR:
SIU 404 & SIU 405
ISLAND RANGE HOODS
* * * B E F O R E I N S T A L L A T I O N * * *
ENSURE THERE IS NO VISIBLE OR HIDDEN DAMAGE SUSTAINED
DURING SHIPPING
* * * S H I P P I N G D A M A G E * * *
MUST BE REPORTED WITHIN 5 DAYS OF RECEIPT
Telephone (Toll Free): 866.528.4987
Fax (Toll Free): 866.365.9204
www.siriushoods.com info@siriushoods.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SIU 404 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sirius Range Hoods SIU 404

Summary of Contents for Sirius Range Hoods SIU 404

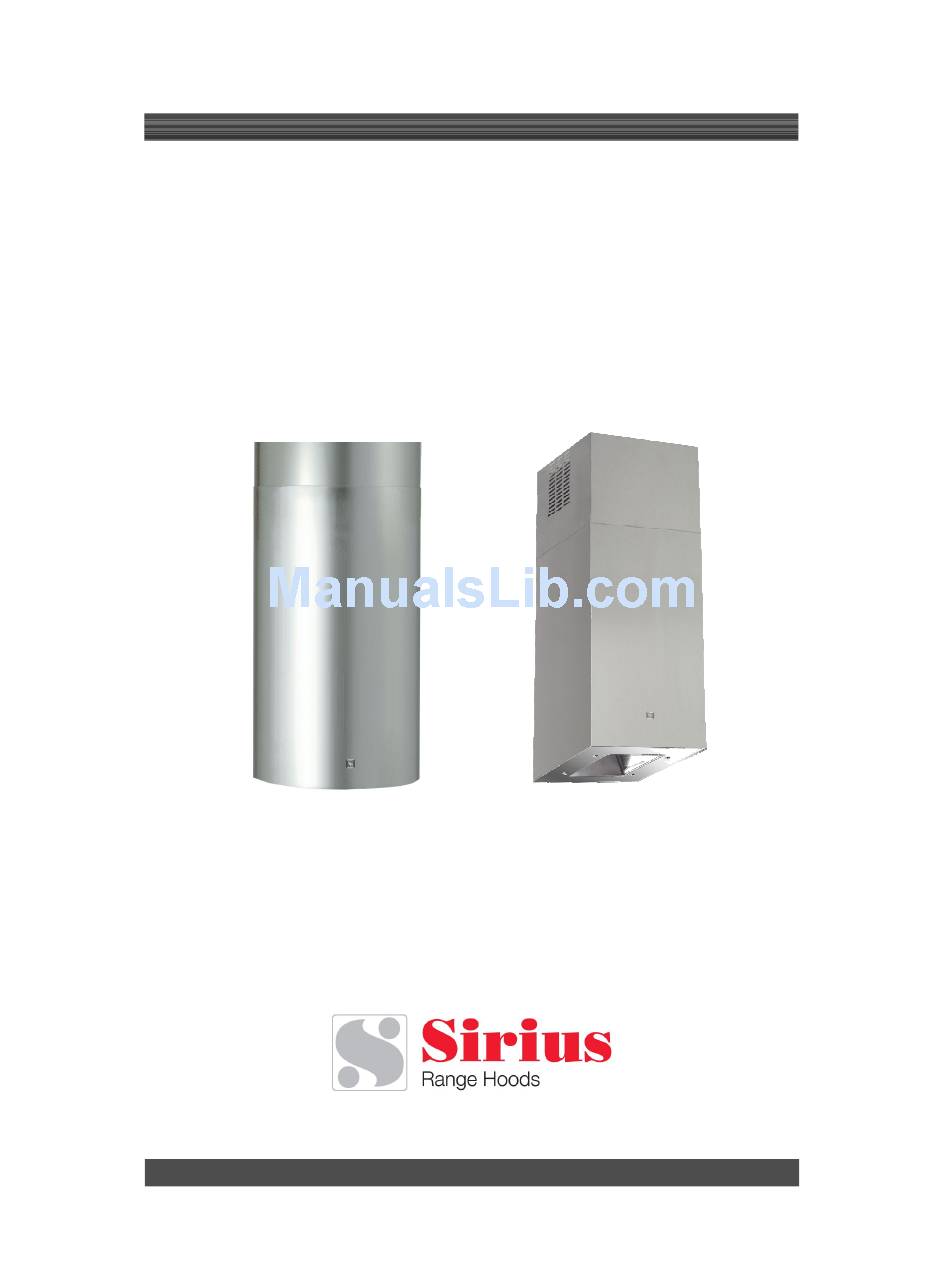

  • Page 1 I N S T R U C T I O N S CARE AND USE MANUAL FOR: SIU 404 & SIU 405 ISLAND RANGE HOODS * * * B E F O R E I N S T A L L A T I O N * * *...
