This quick start guide describes how to install and use the Hardened Ethernet Extender.
harsh environments constrained by space.

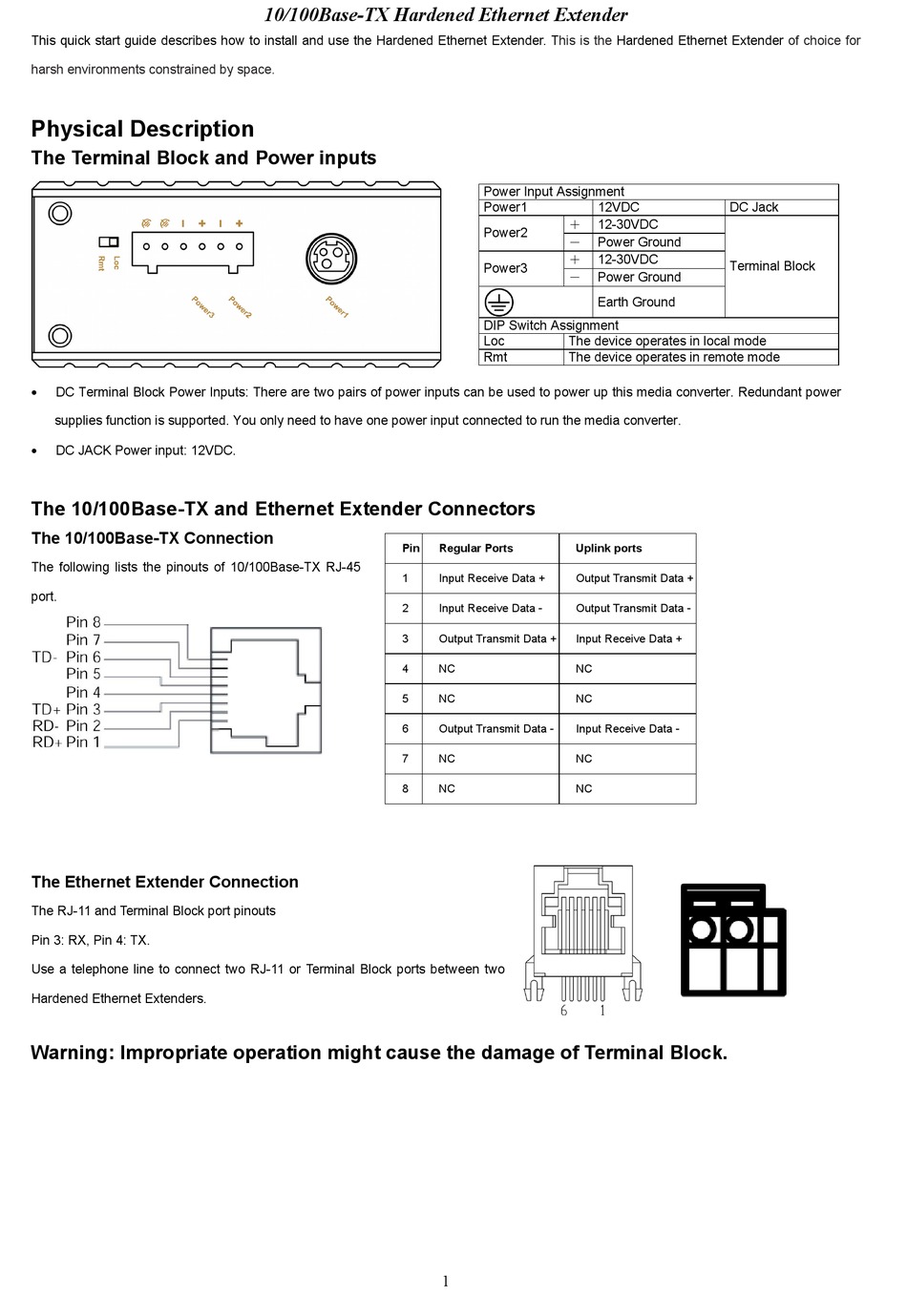

Physical Description

The Terminal Block and Power inputs
DC Terminal Block Power Inputs: There are two pairs of power inputs can be used to power up this media converter. Redundant power
supplies function is supported. You only need to have one power input connected to run the media converter.
DC JACK Power input: 12VDC.
The 10/100Base-TX and Ethernet Extender Connectors
The 10/100Base-TX Connection
The following lists the pinouts of 10/100Base-TX RJ-45
port.
The Ethernet Extender Connection
The RJ-11 and Terminal Block port pinouts
Pin 3: RX, Pin 4: TX.
Use a telephone line to connect two RJ-11 or Terminal Block ports between two
Hardened Ethernet Extenders.
Warning: Impropriate operation might cause the damage of Terminal Block.
10/100Base-TX Hardened Ethernet Extender
Pin
1
2
3
4
5
6
7
8
This is the
Power Input Assignment
Power1
12VDC
12-30VDC
Power2
Power Ground
12-30VDC
Power3
Power Ground
Earth Ground
DIP Switch Assignment
Loc
The device operates in local mode
Rmt
The device operates in remote mode
Regular Ports
Uplink ports
Input Receive Data +
Output Transmit Data +
Input Receive Data -
Output Transmit Data -
Output Transmit Data +
Input Receive Data +
NC
NC
NC
NC
Output Transmit Data -
Input Receive Data -
NC
NC
NC
NC
1
Hardened Ethernet Extender
DC Jack
Terminal Block
of choice for
