EtherWAN ED3541 Series Installation Manual

1 Unpacking
Unpack the items. Your package should include:
▪
One ED3541 hardened Ethernet extender
If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2 Select a Location
▪
Installations: Desktop, DIN-Rail mount.
▪
Identify a power source within 6 feet (1.8 meters).
▪
Choose a dry area with ambient temperature
between -40 and 75ºC (-40 and 167ºF).
▪
Keep away from heat sources, sunlight, warm air
exhausts, hot-air vents, and heaters.
▪
Be sure there is adequate airflow.
▪
Keep the device at least 6 ft (1.83 m) away from
the nearest source of electromagnetic noise, such
as a photocopy machine.
Page 1
W70G-ED3541XQ5
ED3541 Series | Hardened Ethernet Extender

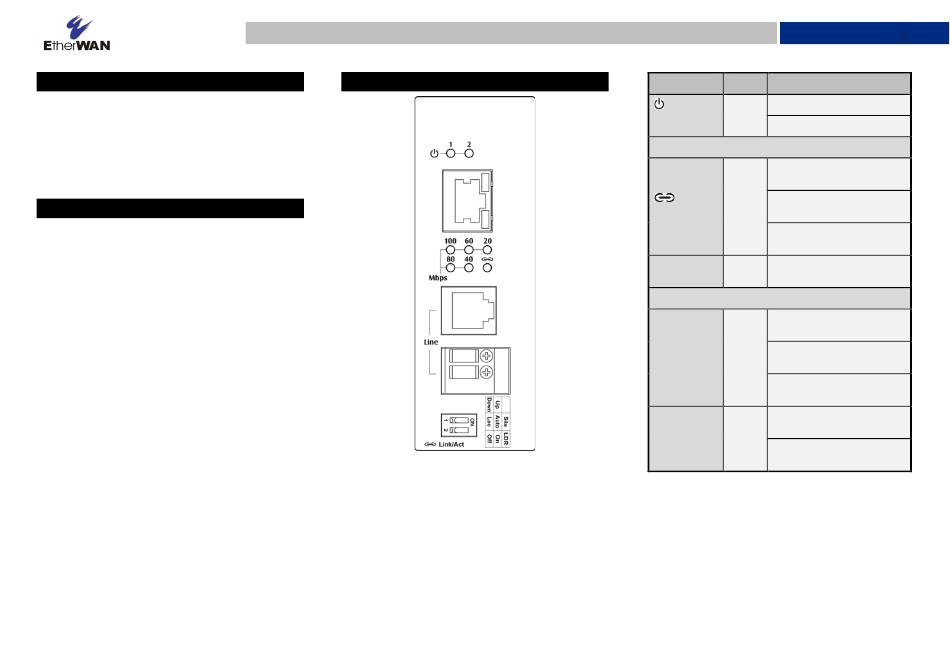

3 LED Indicators
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 03/29/2023
Installation Guide
LED Color Status
ON = Receiving power
Green
Power 1, 2
OFF = Power off
Ethernet Extender Port
ON = Connection is
established
OFF = No connection is
Green
established
Link/Activity
Flashing = Port is sending
or receiving data
ON = Displays the link
Line Speed Green
speed in Mbps
10/100TX Port
ON = Valid network
connection
OFF = No data
Link/Activity Green
transmission on port
Flashing = Port is sending
or receiving data
ON = Link speed at
100Mbps
Speed Yellow
OFF = Link speed at
10Mbps
