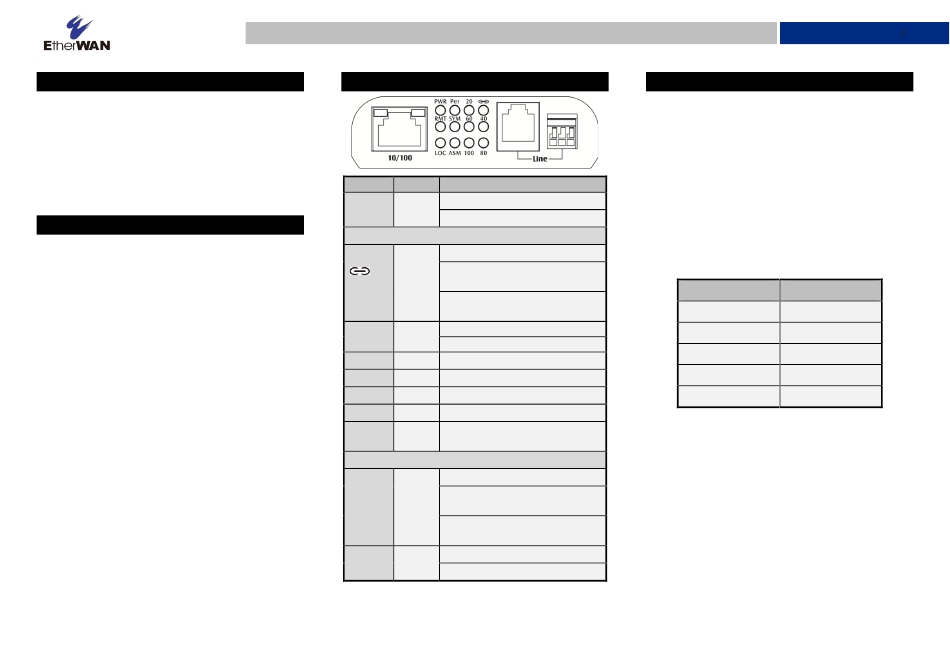

EtherWAN ED3501 Series Installation Manual

1 Unpacking
Unpack the items. Your package should include:
▪
One ED3501 Industrial Ethernet Extender
▪
External AC to DC power adapter
If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2 Select a Location
▪
Installations: Desktop, chassis.
▪
Identify a power source within 6 feet (1.8 meters).
▪
Choose a dry area with ambient temperature
between -10 and 60ºC (14 and 140ºF).
▪
Keep away from heat sources, sunlight, warm air
exhausts, hot-air vents, and heaters.
▪
Be sure there is adequate airflow.
▪
Keep the device at least 6 ft (1.83 m) away from
the nearest source of electromagnetic noise, such
as a photocopy machine.
Page 1
W70G-ED3501XQ5
ED3501 Series | Industrial 10/100BASE-TX Ethernet Extender
3 LED Indicators
LED Color
PWR Green
Ethernet Extender Port
Link/ Green
Activity
Per Green
RMT Green
LOC Green
SYM Green
ASM Green
Line
Green
Speed
Link/
Green
Activity
Speed Yellow
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 03/29/2023
Status
ON = Receiving power
OFF = Power off
ON = Connection is established
OFF = No connection is
established
Flashing = Port is sending or
receiving data
ON = Performance mode.
OFF = Standard mode.
ON = Remote mode.
ON = Local mode.
ON = Symmetric mode.
ON = Asymmetric mode.
ON = Displays the link speed in
Mbps
10/100TX Port
ON = Valid network connection
OFF = No data transmission on
port
Flashing = Port is sending or
receiving data
ON = Link speed at 100Mbps
OFF = Link speed at 10Mbps
Installation Guide
4 Connection
▪
Insert one end of the Ethernet cable into a switch
port.
▪
Connect the other end into the Ethernet port of
the device.
▪
Insert the voice grade copper wire between one
pair of Ethernet Extenders via Ethernet Extender
port (RJ-11 connector or Terminal Block). One
device must be set to LOC mode and the other to
Auto mode when two devices are connected.
Distance and data rates for Ethernet Extender ports:
Distance (m) Data Rate (Mbps)
300 100
400 80
600 60
800 40
2600
This distance/data rate information is measured
according to testing standards in the EtherWAN
laboratory. The actual installation and connection
speed will be affected by the quality of copper wire
and the impact of noise disturbance.
