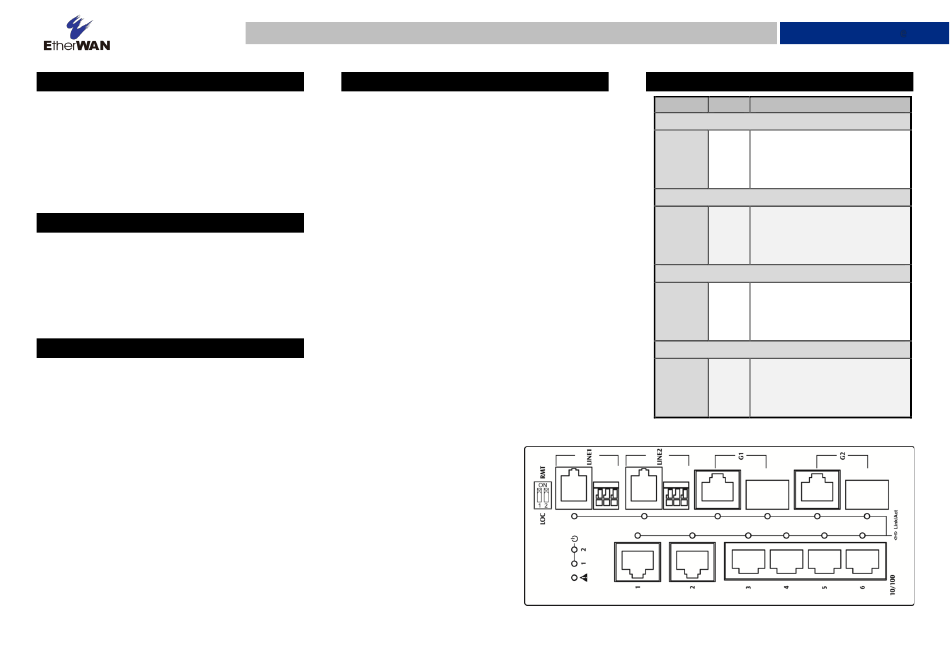

EtherWAN ED3575 Series Installation Manual

1

Unpacking

Unpack the items. Your package should include:
▪
One ED3575 Series hardened managed Ethernet
Extender
If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2

What Else You Need

▪
Category 5 or better cable for RJ-45 ports
▪
Appropriate cables for fiber and SFP ports
▪
Telephone wire (24AWG with minimum 0.5mm
diameter) for Ethernet Extender ports (RJ-11
connector or Terminal Block)
▪
Personal computer with a DB9 straight cable
3

Select a Location

▪
Installations: Desktop, Wall-mount, DIN-Rail
mount.
▪
Installation must be at a height of at least 6 feet
(1.8 meters) above the floor.
▪
Identify a power source within 6 feet (1.8 meters).
▪
Choose a dry area with ambient temperature
between -40 and 75ºC (-40 and 167ºF).
▪
Keep away from heat sources, sunlight, warm air
exhausts, hot-air vents, and heaters.
▪
Be sure there is adequate airflow.
▪
Keep the Ethernet Extender at least 6 ft. (1.83 m)
away from the nearest source of electromagnetic
noise, such as a photocopy machine.
Page 1
W70G-ED3575XQ5
ED3575 Series | Managed Switch / Ethernet Extender
4

Connect to the Data Ports

Depending on the model, your Ethernet Extender can
have the following ports:
▪
6 10/100BASE-TX ports
▪
2 Gigabit combo ports
▪
2 Ethernet Extender ports (RJ-11 connector or
Terminal Block)
1 Gbps Combo/SFP Ports
If your switch model has combo ports, you can
connect them to network devices such as a computer,
printer, network video recorder (NVR), network
storage, or they can connect to the network itself.
Combo ports operate in "either/or" fashion. This
means that attaching to a 1 Gbps combo port renders
the equivalent partner combo port unavailable.
Ethernet Extender Ports
Insert the voice grade copper wire between one pair
of Ethernet Extenders via Ethernet Extender port (RJ-
11 connector or Terminal Block). One device must be
set to LOC mode and the other to RMT mode when
two devices are connected.
Copyright 2023 EtherWAN Systems, Inc. All Rights Reserved 03/29/2023
Installation Guide
5

Front Panel LEDs

LED Color Status
10/100Base-TX LEDs
ON = valid network connection is
established.
Link/Act Green
Flashing = port sending or
receiving data.
10/100/1000Base-TX LEDs
ON = valid network connection is
established.
Link/Act Green
Flashing = port sending or
receiving data.
1000Base SFP LEDs
ON = valid network connection is
established.
Link/Act Green
Flashing = port sending or
receiving data.
Ethernet Extender Port LEDs
ON = valid network connection is
established.
Link/Act Green
Flashing = port sending or
receiving data.
