EtherWAN ED3331 Quick Start Manual

This quick start guide describes how to install and use the Ethernet Extender. The Ethernet Extender introduced
here provides one channel for Ethernet over existing coaxial cable.

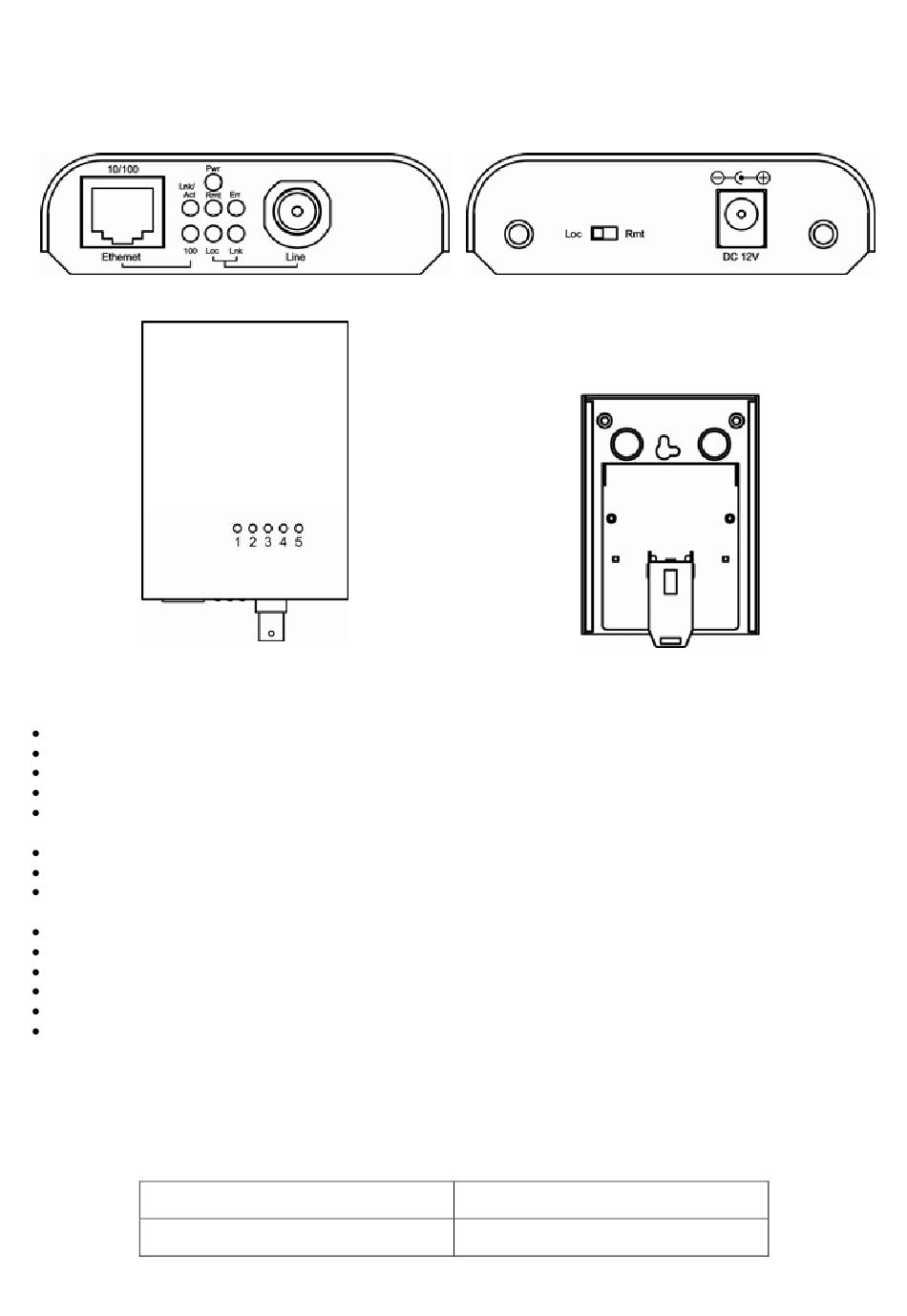

Product Overview

Product Features

Complies with EN61000-6-2 & EN61000-6-3 EMC Generic standard immunity for Industrial environment.
Operates transparent to higher layer protocols.
One Ethernet port (RJ-45 connector): 10/100Mbps-Full/Half-duplex, Auto-negotiation, Auto-MDI/MDIX.
Complies with IEEE802.3 10Base-T and IEEE802.3u 100Base-TX standards.
One Ethernet Extender port (BNC connector): Symmetrical on the VDSL, high-speed Full-duplex 85Mbps
communications link over existing coaxial cable.
Provides BNC to F-Type connector.
Supports one DIP switch to select local or remote side.
Ten reference speeds supports up to 85Mbps @ about 200 meters (656ft.), down to 1Mbps @ about 2,600 meters
(8,530ft.).
External AC to DC power adapter.
-10℃ to 60℃ (14℉ to 140℉) operating temperature range.
Hardened aluminum case.
Supports DIN-Rail or Wall Mounting installation.
Used as a stand-alone device or with a chassis.
Hot-swappable when used with a chassis.

Ethernet Extender Mode Settings

Ethernet Extender mode settings are made very simple by means of a switch at the rear panel of the Ethernet
Extender. The switch has two positions for Ethernet Extender mode settings. Refer to the table below for more
details. One device must be set to Loc and the other to Rmt when two devices are connected.
Loc
The device operates in local mode
10/100Base-TX Industrial Ethernet Extender
Use DIN-Rail Mounting Kit:
Fit the DIN-Rail mounting kit onto the bottom of the unit and fasten the
screws. The Ethernet Extender can use DIN-Rail mounting kit to fix on
the DIN-Rail.
Rmt
The device operates in remote mode
1 V2
