ED3238
www.etherwan.com
Quick Start Guide
This quick start guide describes how to install and use the Ethernet
Extender over coaxial cable. This is the Ethernet Extender of choice
for environments constrained by space.
Installation
ED3238T (Transmitter): This is a PoL (Power over Link) transmitter.
Data and power can be delivered at the same time through a coaxial
cable to turn on and communicate with ED3238R (Receiver) via
BNC interface.
ED3238R (Receiver): This is a PoL (Power over Link) Receiver.
ED3238R (Receiver) can be powered by ED3238T (Transmitter)
through a coaxial cable. The Ethernet port of ED3238R (Receiver)
supports IEEE802.3af PoE/PSE for fulfilling PoE/PD application.

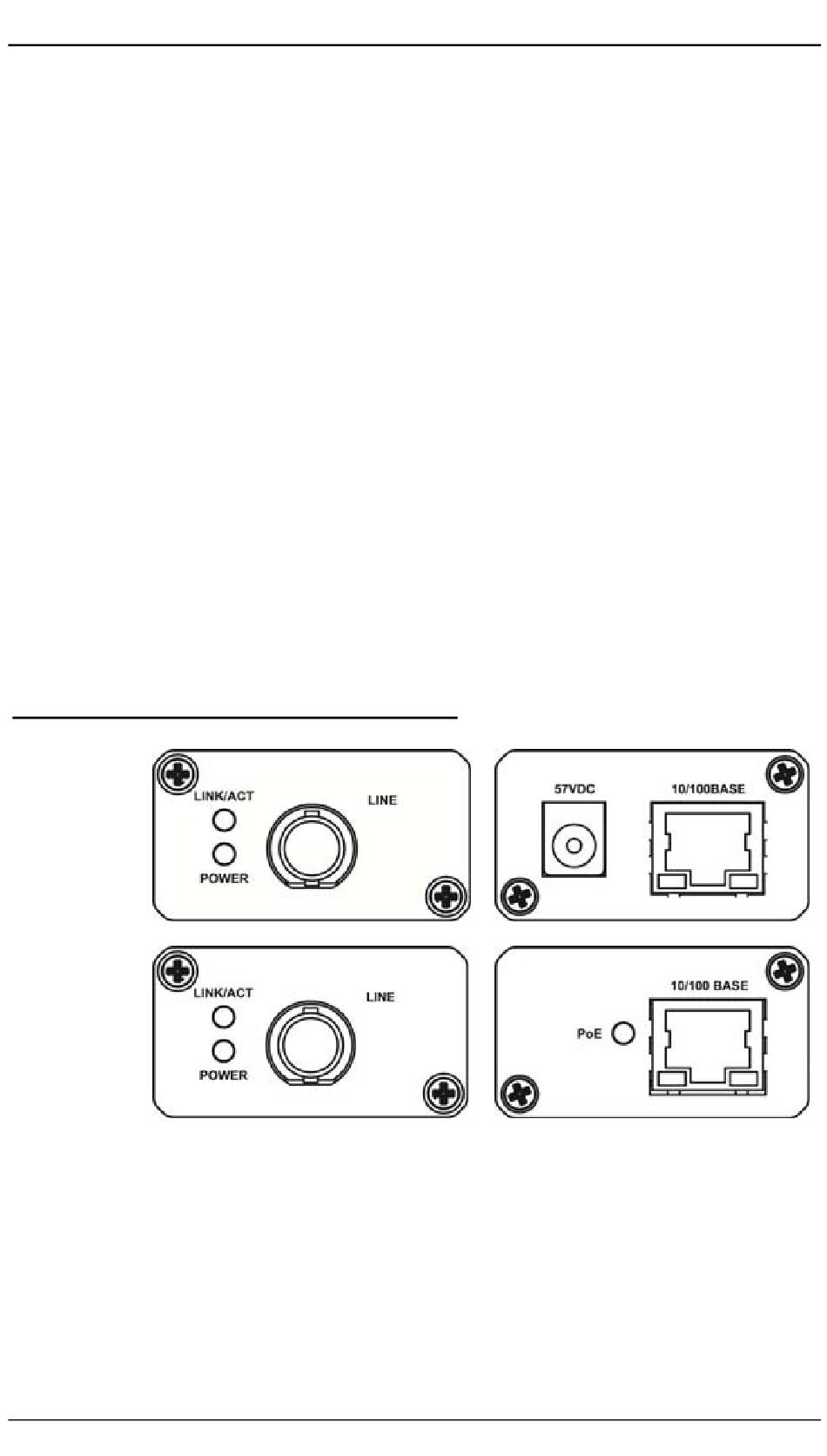

Physical Description
The Port Status LEDs and Power Inputs
ED3238T
ED3238R
User's Manual
1
Advertisement
Table of Contents
Related Manuals for EtherWAN ED3238
Summary of Contents for EtherWAN ED3238
-
Page 1: Quick Start Guide
ED3238 www.etherwan.com Quick Start Guide This quick start guide describes how to install and use the Ethernet Extender over coaxial cable. This is the Ethernet Extender of choice for environments constrained by space. Installation ED3238T (Transmitter): This is a PoL (Power over Link) transmitter. -
Page 2: 10/100Base-Tx Connectors
ED3238 www.etherwan.com LEDs State Indication Steady Power received POWER Power off Steady A valid Extender connection established LINK/ACT Flashing Data transmission or receiving Extender connection is not established Steady Powered device (PD) is connected Powered device (PD) is disconnected Steady... - Page 3 ED3238 www.etherwan.com 57VDC power adapter through DC Jack interface of ED3238T. Input Power Rating (optional): DC Jack: 57VDC, 0.52A minimum; PoE connector: 50-57VDC, 0.52A minimum. ED3238R PSE port: 15.4 Watts. User’s Manual...
-
Page 4: Fcc Warning
ED3238 www.etherwan.com FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Table Of Contents
ED3238 www.etherwan.com Table of Contents Quick Start Guide ................. 1 Installation..................1 Physical Description ..............1 The Port Status LEDs and Power Inputs........1 10/100Base-TX Connectors............2 Functional Description..............2 FCC Warning ................4 CE Mark Warning ................ 4 Preface.................... 4 Table of Contents ................ -
Page 6: Introduction
ED3238 www.etherwan.com Introduction The Ethernet Extender provides one channel for Ethernet over coaxial cable. This Ethernet Extender solution is perfectly fitted in the environments constrained by space. Product Overview ED3238T ED3238R Product Features Ethernet port: Supports IEEE802.3/802.3u/802.3x. Auto-negotiation: 10/100Mbps, full/half-duplex. Auto MDI/MDIX. -
Page 7: One-Channel Ethernet Extender
ED3238 www.etherwan.com One-Channel Ethernet Extender Ports The Ethernet Extender provides TX ports and one Ethernet Extender port. For the TX ports, it uses RJ-45 connector and auto senses the speed of 10/100Mbps. For the Ethernet Extender port, it uses BNC connectors and the... -
Page 8: 10/100Base-Tx Connectors
ED3238 www.etherwan.com 10/100Base-TX Connectors 10/100Base-TX Connection The following lists the pinouts of 10/100Base-TX RJ-45 port. Regular Port PoE Port Output Transmit Data + Output Transmit Data + Output Transmit Data - Output Transmit Data - Input Receive Data + Input Receive Data +... -
Page 9: Installation
ED3238 www.etherwan.com Installation This chapter gives installation instructions for the Ethernet Extender. ED3238T needs to be powered by 57VDC power adapter. Then ED3238T (as PoE/PD) would have at least 55VDC power input. RG6: 30-180M, RG11: 50-250M. ED3238T can only used with ED3238R. Other products might get damaged if connected with ED3238T. -
Page 10: Connecting To Power
ED3238 www.etherwan.com Connecting to Power 10/100Base-TX Port ED3238T can be PoE/PD powered by IEEE802.3at PoE/PSE device through Ethernet port of ED3238T. 57VDC DC Jack Connect the supplied AC to DC power adapter to the DC Jack of ED3238T. -
Page 11: Specifications
ED3238 www.etherwan.com Specifications Applicable Standards IEEE802.3 10Base-T, IEEE802.3u 100Base-TX 1 x 10/100Mbps Ethernet port with RJ-45 Fixed Ports connector 1 x Ethernet Extender port with BNC interface Speed 10Base-T 10/20Mbps for half/full-duplex 100Base-TX 100/200Mbps for half/full-duplex Ethernet Extender 100Mbps Switching Method...
