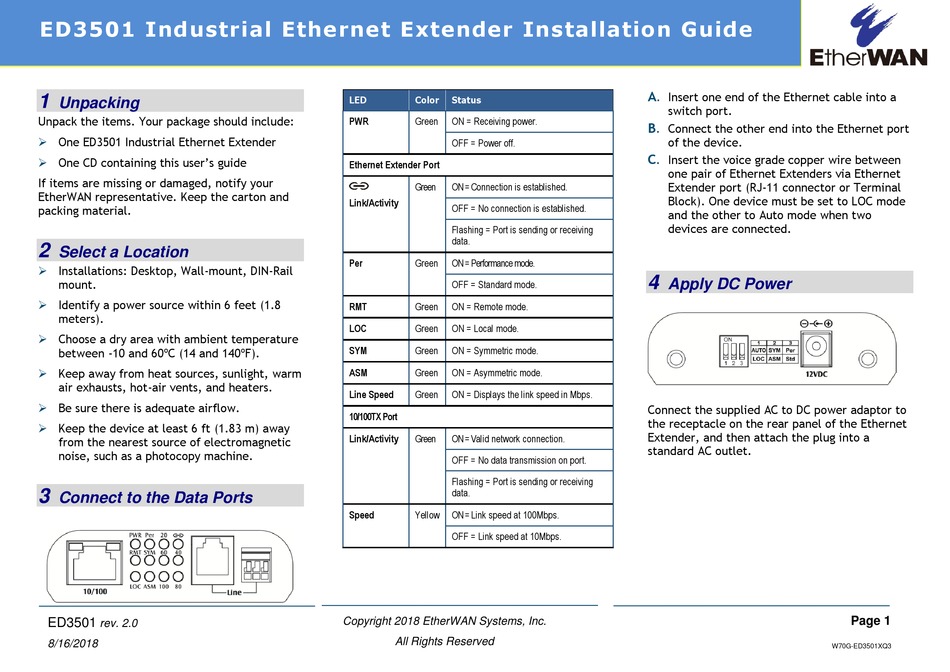

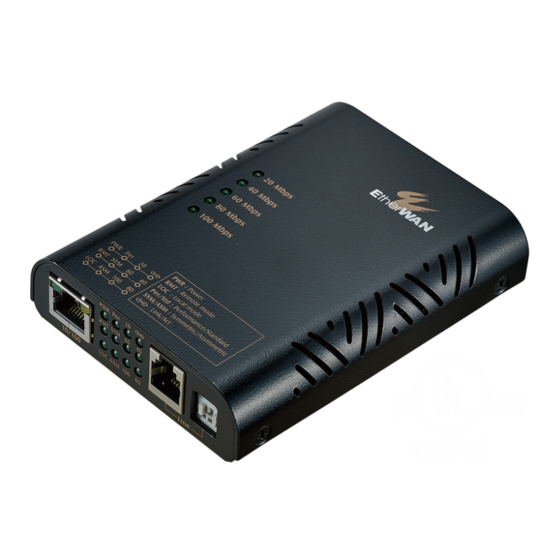

ED3501 Industrial Ethernet Extender Installation Guide
1
Unpacking
Unpack the items. Your package should include:
 One ED3501 Industrial Ethernet Extender
One CD containing this user's guide

If items are missing or damaged, notify your
EtherWAN representative. Keep the carton and
packing material.
2
Select a Location
Installations: Desktop, Wall-mount, DIN-Rail

mount.
Identify a power source within 6 feet (1.8

meters).
 Choose a dry area with ambient temperature
between -10 and 60ºC (14 and 140ºF).
Keep away from heat sources, sunlight, warm

air exhausts, hot-air vents, and heaters.
Be sure there is adequate airflow.

 Keep the device at least 6 ft (1.83 m) away
from the nearest source of electromagnetic
noise, such as a photocopy machine.
3
Connect to the Data Ports
ED3501
rev. 2.0
8/16/2018
LED Color Status
PWR Green ON = Receiving power.
OFF = Power off.
Ethernet Extender Port
Green ON = Connection is established.
Link/Activity
OFF = No connection is established.
Flashing = Port is sending or receiving
data.
Per Green ON = Performance mode.
OFF = Standard mode.
RMT Green ON = Remote mode.
LOC Green ON = Local mode.
SYM Green ON = Symmetric mode.
ASM Green ON = Asymmetric mode.
Line Speed Green ON = Displays the link speed in Mbps.
10/100TX Port
Link/Activity Green ON = Valid network connection.
OFF = No data transmission on port.
Flashing = Port is sending or receiving
data.
Speed Yellow ON = Link speed at 100Mbps.
OFF = Link speed at 10Mbps.
Copyright 2018 EtherWAN Systems, Inc.
All Rights Reserved
A.
Insert one end of the Ethernet cable into a
switch port.
B.
Connect the other end into the Ethernet port
of the device.
C.
Insert the voice grade copper wire between
one pair of Ethernet Extenders via Ethernet
Extender port (RJ-11 connector or Terminal
Block). One device must be set to LOC mode
and the other to Auto mode when two
devices are connected.
4
Apply DC Power
Connect the supplied AC to DC power adaptor to
the receptacle on the rear panel of the Ethernet
Extender, and then attach the plug into a
standard AC outlet.
