EtherWAN ED3541 Installation Manual

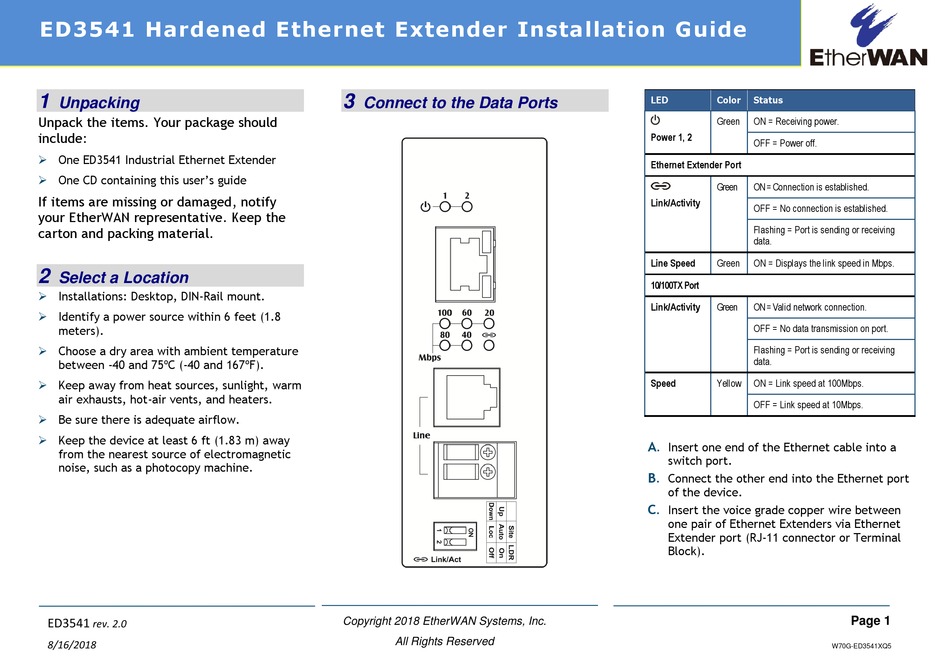

ED3541 Hardened Ethernet Extender Installation Guide
1
Unpacking
Unpack the items. Your package should
include:

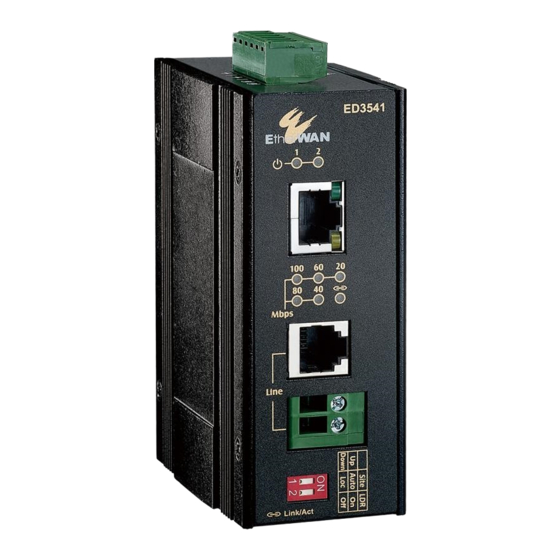

One ED3541 Industrial Ethernet Extender

 One CD containing this user's guide
If items are missing or damaged, notify
your EtherWAN representative. Keep the
carton and packing material.
2
Select a Location
 Installations: Desktop, DIN-Rail mount.
Identify a power source within 6 feet (1.8

meters).
 Choose a dry area with ambient temperature
between -40 and 75ºC (-40 and 167ºF).
 Keep away from heat sources, sunlight, warm
air exhausts, hot-air vents, and heaters.
Be sure there is adequate airflow.

 Keep the device at least 6 ft (1.83 m) away
from the nearest source of electromagnetic
noise, such as a photocopy machine.
ED3541
rev. 2.0
8/16/2018
3
Connect to the Data Ports
Copyright 2018 EtherWAN Systems, Inc.
All Rights Reserved
LED Color Status
Green ON = Receiving power.
Power 1, 2
OFF = Power off.
Ethernet Extender Port
Green ON = Connection is established.
Link/Activity
OFF = No connection is established.
Flashing = Port is sending or receiving
data.
Line Speed Green ON = Displays the link speed in Mbps.
10/100TX Port
Link/Activity Green ON = Valid network connection.
OFF = No data transmission on port.
Flashing = Port is sending or receiving
data.
Speed Yellow ON = Link speed at 100Mbps.
OFF = Link speed at 10Mbps.
A.
Insert one end of the Ethernet cable into a
switch port.
B.
Connect the other end into the Ethernet port
of the device.
C.
Insert the voice grade copper wire between
one pair of Ethernet Extenders via Ethernet
Extender port (RJ-11 connector or Terminal
Block).
Page 1
W70G-ED3541XQ5
