Summary of Contents for Life Fitness Signature Series CMDAP

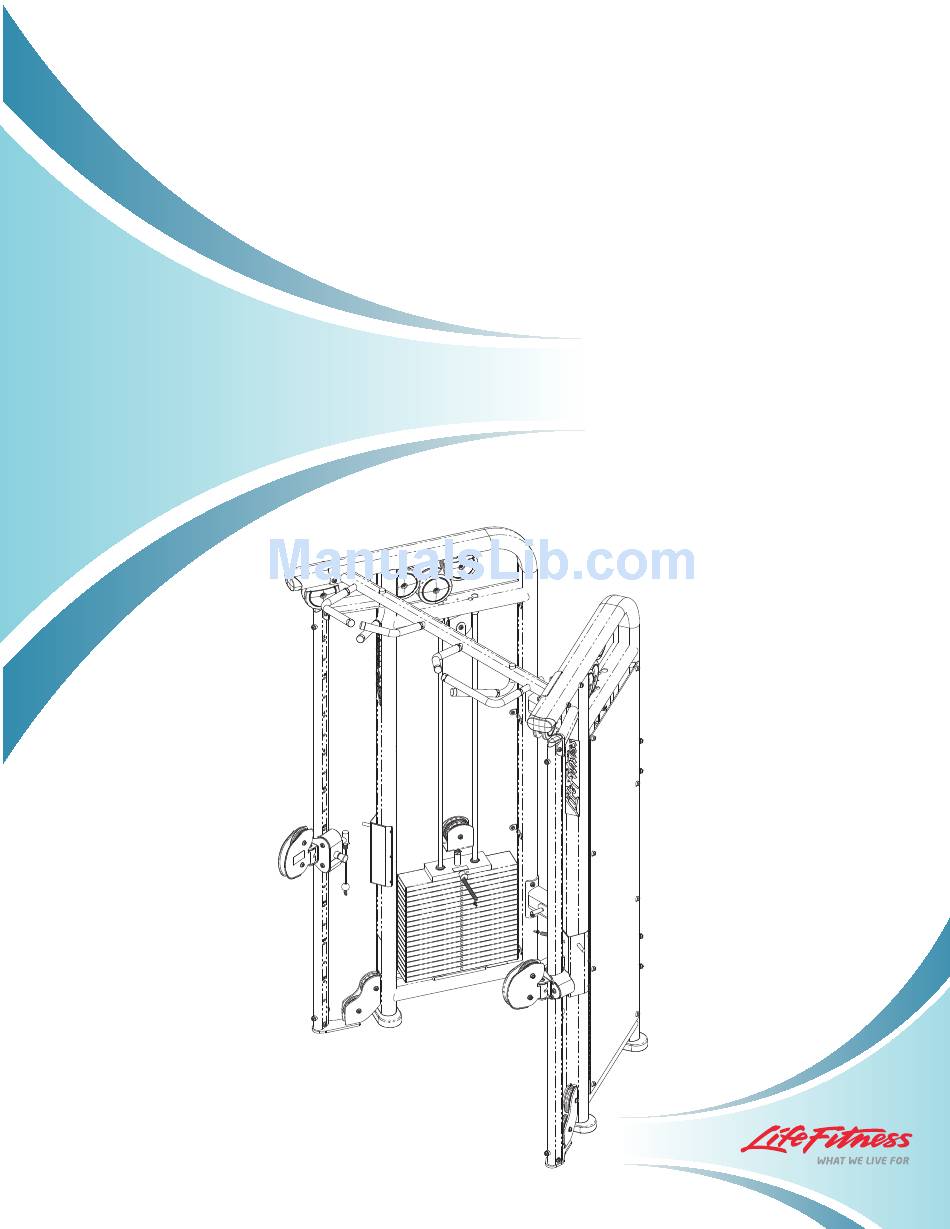

- Page 1 Signature Series Cable Motion CMDAP Dual Adjustable Pulley SERIAL NUMBER CMDAP0908041 & UP CUSTOMER SUPPORT SERVICES Parts List...
-
Page 2: Table Of Contents
CMDAP DUAL ADJUSTABLE PULLEY CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND RIGHT HAND TOWER ASSEMBLY RIGHT HAND TOWER ASSEMBLY LEGEND RIGHT HAND CARRIAGE ASSEMBLY ADJ. PULLEY COLUMN ASSEMBLY CHIN SUPPORT ASSEMBLY OPTIONAL NOHANDLE BOOM REAR SUPPORT ASSEMBLY LEFT HAND TOWER ASSEMBLY LEFT HAND TOWER ASSEMBLY LEGEND LEFT HAND CARRIAGE ASSEMBLY STACK PULLEY ASSEMBLY... -
Page 3: Cmdap Dual Adjustable Pulley
CMDAP DUAL ADJUSTABLE PULLEY COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
CMDAP DUAL ADJUSTABLE PULLEY COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO PART NO DESCRIPTION 7714201 ASSY, CMDAP RH TOWER 7714301 ASSY, CMDAP LH TOWER 7713901 ASSY, CMDAP CHIN SUPPORT 8539101 ASSY, CMDAP BOOM - NOHANDLES 7714101 ASSY, CMDAP REAR SUPPORT 3236220 M10 X 1.5 X 130 HXS SOC CS SS 7630101 RETAINER, CM/MJ, PULLEY 7335401 NUT, SOCKET HEAD M10 X 1.5 SS 7634701 SPACER, CM/MJ, .565 X .815... -
Page 5: Right Hand Tower Assembly
CMDAP DUAL ADJUSTABLE PULLEY RIGHT HAND TOWER ASSEMBLY - 7714201 ________________________________________ SEE PAGE 6 FOR LEGEND Page 5... -
Page 6: Right Hand Tower Assembly Legend
3232421 RING, BRE .940, 5100-100 ST PP B 7334001 FOOT, 2.50 X 4.49 FLOV 3251202 SCREW, M10 X1.5 X 25MM UNS HEX CS ST ZN 7340201 COVER, FOOT - STRAIGHT 7348001 LABEL, LIFE FITNESS LOGO 7744501 LABEL, WEIGHT AT HANDLE Page 6... -
Page 7: Right Hand Carriage Assembly
CMDAP DUAL ADJUSTABLE PULLEY RIGHT HAND CARRIAGE ASSEMBLY - 8346801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7637901 ASSY, ROLLER-CONCAVE 8327901 ASSY, CM/MJ PULL PIN, BEVEL NOSE 7351501 SPRING, PULL PIN LARGE 7351401 KNOB, TULIP STYLE 7645401 SHAFT, CM/MJ, 6203 BRNG 3245901 BEARING, 6203 3232413 RING, BRE .631, 5100-66, ST PP B 3236601 WASHER, 3/8 SAE SS... -
Page 8: Adj. Pulley Column Assembly
CMDAP DUAL ADJUSTABLE PULLEY ADJ. PULLEY COLUMN ASSEMBLY - 7708401 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8264101 TUBE, CM/MJ ADJ COLUMN 7645501 SPACER, CM/MJ, SM FLOV CONCAVE 7630101 RETAINER, CM/MJ, PULLEY 3236215 SCREW, M10 X1.5 90MM 7335401 NUT, M10 X 1.5 SOCKET HEAD 7333801 CAP, SMALL FLOV- END Page 8... -
Page 9: Chin Support Assembly
CMDAP DUAL ADJUSTABLE PULLEY CHIN SUPPORT ASSEMBLY - 7713901 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 3235801 GRIP, 1.25 OD X .125 WALL OPEN END 7662901 CAP, GRIP 1.25 OD 7662801 RING, GRIP 1.25 OD 3247701 M4 X .7 HXS NO CUP ST BO 7642701 WLDMT, CMDAP CHIN SUPPORT Page 9... -
Page 10: Optional Nohandle Boom
CMDAP DUAL ADJUSTABLE PULLEY OPTIONAL NO HANDLE BOOM ASSY. - 8539101 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 8539001 WLDMT, CMDAP BOOM - NOHANDLES 7630101 RETAINER, CM/MJ, PULLEY 3236220 SCREW, M10 X1.5 130MM 3236221 SCREW, M10 X1.5 140MM 7634701 SPACER, CM/MJ, .565 X .815 7335401 NUT, M10 X 1.5 SOCKET HEAD 3236801 NUT, M10 HEX NYLOCK SS Page 10... -
Page 11: Rear Support Assembly
CMDAP DUAL ADJUSTABLE PULLEY REAR SUPPORT ASSEMBLY - 7714101 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7642601 WLDMT, CMDAP REAR SUPPORT 7644895 WLDMT, CM ACC RACK 3236601 WASHER, 3/8 SAE SS 3236212 SCREW, M10 X1.5 75MM 7335401 NUT, M10 X 1.5 SOCKET HEAD 7749601 SLEEVE, .50"... -
Page 12: Left Hand Tower Assembly
CMDAP DUAL ADJUSTABLE PULLEY LEFT HAND TOWER ASSEMBLY - 7714301 ________________________________________ SEE PAGE 13 FOR LEGEND Page 12... -
Page 13: Left Hand Tower Assembly Legend
3240502 M10 X 1.5 X 50 HXS NO CUP ST BO 7334001 FOOT, 2.50 X 4.49 FLOV 7340201 COVER, FOOT - STRAIGHT 7348001 LABEL, LIFE FITNESS LOGO 7744501 LABEL, WEIGHT AT HANDLE 3251202 SCREW, M10 X1.5 X 25MM HEX CS ST ZN... -
Page 14: Left Hand Carriage Assembly
CMDAP DUAL ADJUSTABLE PULLEY LEFT HAND CARRIAGE ASSEMBLY - 8346601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7637901 ASSY, ROLLER-CONCAVE 7645401 SHAFT, CM/MJ, 6203 BRNG 3239101 SCREW, M5X10 PHL PAN TT ST 3237801 PULLEY, 4.5" OD 3245701 PULLEY, 3.5" OD, 10MM ID SG 3232413 RING, BRE .631, 5100-66, ST PP B 3236216... -
Page 15: Stack Pulley Assembly
CMDAP DUAL ADJUSTABLE PULLEY STACK PULLEY ASSEMBLY - 7750701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7644001 WLDMT, HEAD PLATE DBL PULLEY 3237801 PULLEY, 4.5" OD 3236801 NUT, M10 HEX NYLOCK SS 3236601 WASHER, 3/8 SAE SS 3236213 SCREW, M10 X1.5 80MM 3236902 NUT, M16 X 2 HEX JAM SS 7385201 SPACER, .406 X .750 X .250 Page 15... -
Page 16: 390Lb. Weight Stack Assembly
CMDAP DUAL ADJUSTABLE PULLEY 390 LB. WEIGHT STACK ASSEMBLY - 7353601 ________________________________________ WEIGHT PLATE LABELS PART NO. DESCRIPTION 8068701 LABEL, WGHT STK, 97.5 LBS 8069301 LABEL, WGHT STK, 48.75 KG ITEM NO. QTY. PART NO. DESCRIPTION 7353901 HEADPLATE, WT. STACK 7356601 STEM, PRO2 19 HOLE 7328401 WEIGHT PLATE, 20 LB 3236001 BUSHING, SPRING PIN... -
Page 17: Long Bar Assembly
CMDAP DUAL ADJUSTABLE PULLEY LONG BAR ASSEMBLY - 7753101 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7760995 TUBE, 1.00 OD 10GA X 44 7760695 WLDMT, LONG BAR SWIVEL 7435301 COLLAR, SHAFT 1.020 ID 3104906 1.00" ID 1.25" OD BRONZ BUSHING 3235801 GRIP, 1.25 OD X .125 WALL OPEN END 7662801 RING, GRIP 1.25 OD 3247701 M4 X .7 HXS NO CUP ST BO... -
Page 18: Sport Bar Assembly
CMDAP DUAL ADJUSTABLE PULLEY SPORT BAR ASSEMBLY - 7753201 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7760395 WLDMT, SPORT BAR 3235801 GRIP, 1.25 OD X .125 WALL OPEN END 7662801 RING, GRIP 1.25 OD 7662901 CAP, GRIP 1.25 OD 3247701 M4 X .7 HXS NO CUP ST BO 3119304 CAP, END 1 DIA RD 10-12GA Page 18... -
Page 19: Accessories
CMDAP DUAL ADJUSTABLE PULLEY ACCESSORIES ________________________________________ ITEM NO. QTY. CMDAP INSTRUCTIONAL POSTER PART NO. DESCRIPTION 8219601 HANDLE, CM/MJ, SHORT STRAP 6851501 ROPE, TRICEP 7753001 LE/LC STRAP 7752901 TRAINING BELT (NO LONGER AVAILABLE) 7734701 STRAP, 4-WAY ANKLE 8219701 HANDLE, CM/MJ, LONG STRAP 7762301 POSTER, CMDAP INSTRUCTIONAL 7730801 CD-ROM, CMDAP/CMCC Page 19... -
Page 20: Optional Front Shroud Kit
CMDAP DUAL ADJUSTABLE PULLEY OPTIONAL FRONT SHROUD KIT - 7766701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7763695 BRKT, SHROUD, CM/MJ BOTTOM SG 7763795 BRKT, SHROUD, CMDAP TOP SG 3238601 M10X1.5 BLIND THREADED INSERT (HEX) 7634001 SHROUD, CM/MJ FRONT 3236601 WASHER, 3/8 SAE SS 3236201 SCREW, M10 X1.5 20MM Page 20... -
Page 21: Image
CMDAP DUAL ADJUSTABLE PULLEY IMAGE ________________________________________ Page 21...
