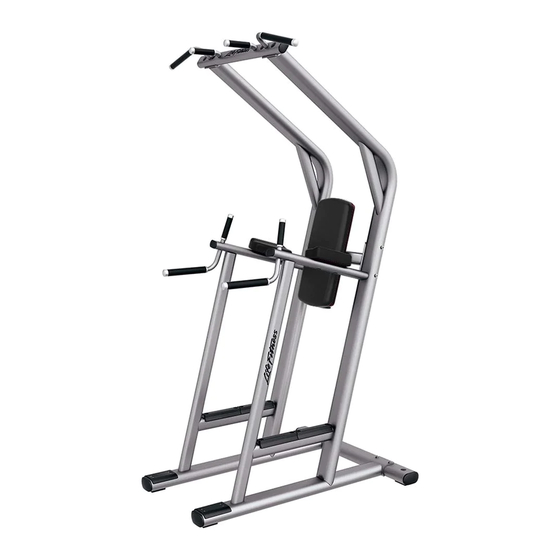

Summary of Contents for Life Fitness SCDLR
-

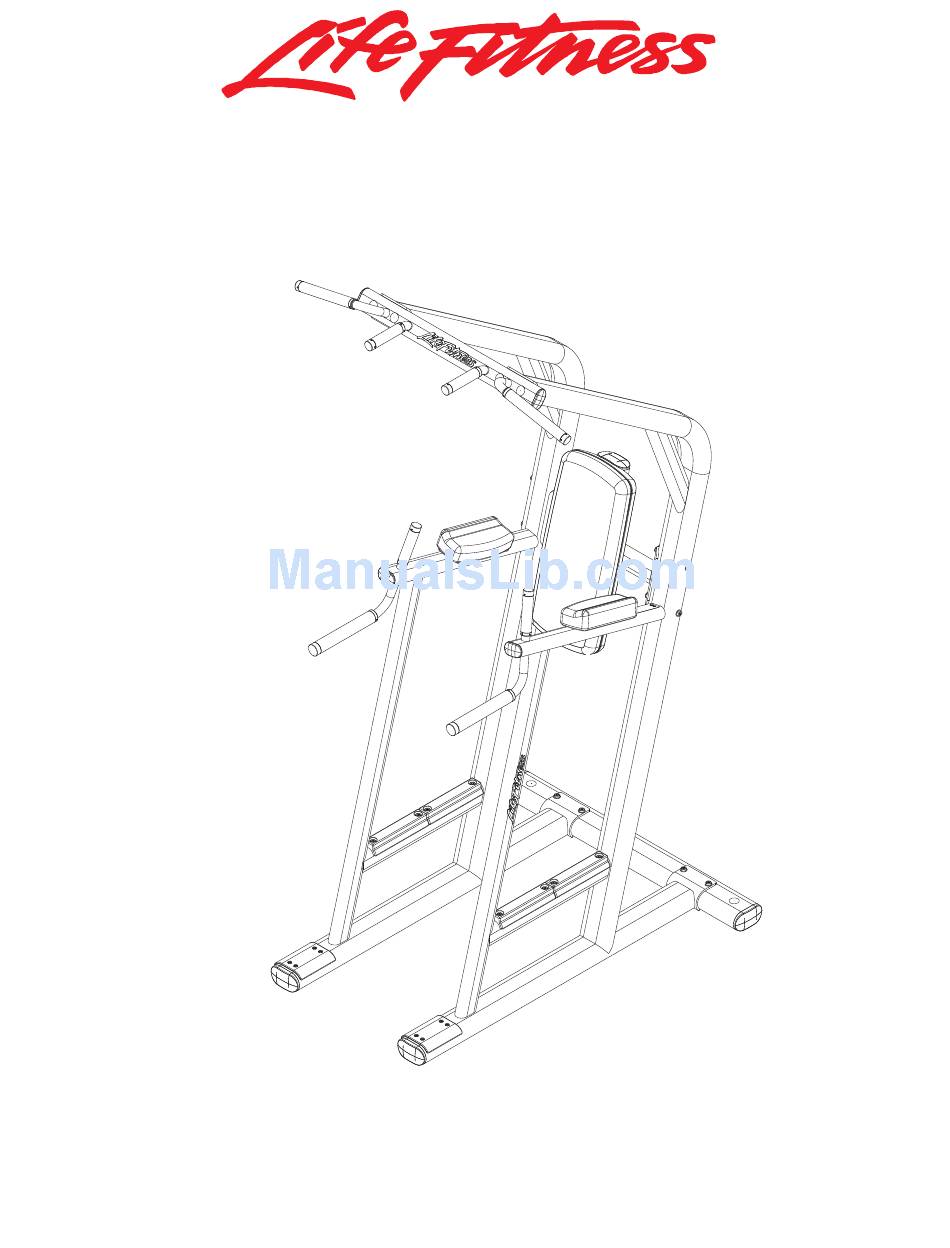

Page 1: Parts List
SIGNATURE SERIES SCDLR SIGNATURE CHIN DIP / LEG RAISE Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
SCDLR SIGNATURE CHIN DIP / LEG RAISE CONTENTS ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY LEGEND FOOT BRACE ASSEMBLY BACK SUPPORT ASSEMBLY LEFT UPRIGHT ASSEMBLY LEFT UPRIGHT ASSEMBLY LEGEND RIGHT UPRIGHT ASSEMBLY RIGHT UPRIGHT ASSEMBLY ASSEMBLY IMAGE ________________________________________ NOTE: SUBSTITUTE PART NUMBERS ENDING WITH ‘XX’... -
Page 3: Component Assembly
SCDLR SIGNATURE CHIN DIP / LEG RAISE COMPONENT ASSEMBLY ________________________________________ SEE PAGE 4 FOR LEGEND Page 3... -
Page 4: Component Assembly Legend
SCDLR SIGNATURE CHIN DIP / LEG RAISE COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78909XX PTD ASSY, SCDLR, FOOT BRACE 78908XX PTD ASSY, SCDLR, BACK SUPPORT 78907XX PTD ASSY, SCDLR, LEFT UPRIGHT 78906XX PTD ASSY, SCDLR, RIGHT UPRIGHT... -
Page 5: Foot Brace Assembly
SCDLR SIGNATURE CHIN DIP / LEG RAISE FOOT BRACE ASSEMBLY - 78909XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78786XX TUBE, SCDLR, 2.50 X 4.49 FLOV 7800401 CAP, LRG FLOV END 7810801 PAD, RUBBER FOOT 3114407 WASHER, SAE #10 3239102 SCREW, M5X12 PHL PAN TT ST BZ... -
Page 6: Back Support Assembly
SCDLR SIGNATURE CHIN DIP / LEG RAISE BACK SUPPORT ASSEMBLY - 78908XX ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78898XX WLDMT, SCDLR BACK SUPPORT 7800401 CAP, LRG FLOV END Page 6... -
Page 7: Left Upright Assembly
SCDLR SIGNATURE CHIN DIP / LEG RAISE LEFT UPRIGHT ASSEMBLY - 78907XX ________________________________________ SEE PAGE 8 FOR LEGEND Page 7... -
Page 8: Left Upright Assembly Legend
SCDLR SIGNATURE CHIN DIP / LEG RAISE LEFT UPRIGHT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78907XX PTD ASSY, LEFT UPRIGHT 7662801 RING, GRIP 1.25 OD 3247701 M4 X .7 HXS NO CUP ST BO 7662901 CAP, GRIP 1.25 OD... -
Page 9: Right Upright Assembly
SCDLR SIGNATURE CHIN DIP / LEG RAISE RIGHT UPRIGHT ASSEMBLY - 78906XX ________________________________________ SEE PAGE 10 FOR LEGEND Page 9... -
Page 10: Right Upright Assembly Legend
SCDLR SIGNATURE CHIN DIP / LEG RAISE RIGHT UPRIGHT ASSEMBLY LEGEND ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 78906XX PTD ASSY, RIGHT UPRIGHT 7800401 CAP, LRG FLOV END 7662801 RING, GRIP 1.25 OD 3247701 M4 X .7 HXS NO CUP ST BO 7662901 CAP, GRIP 1.25 OD... -
Page 11: Image
SCDLR SIGNATURE CHIN DIP / LEG RAISE IMAGE ________________________________________ Page 11...
