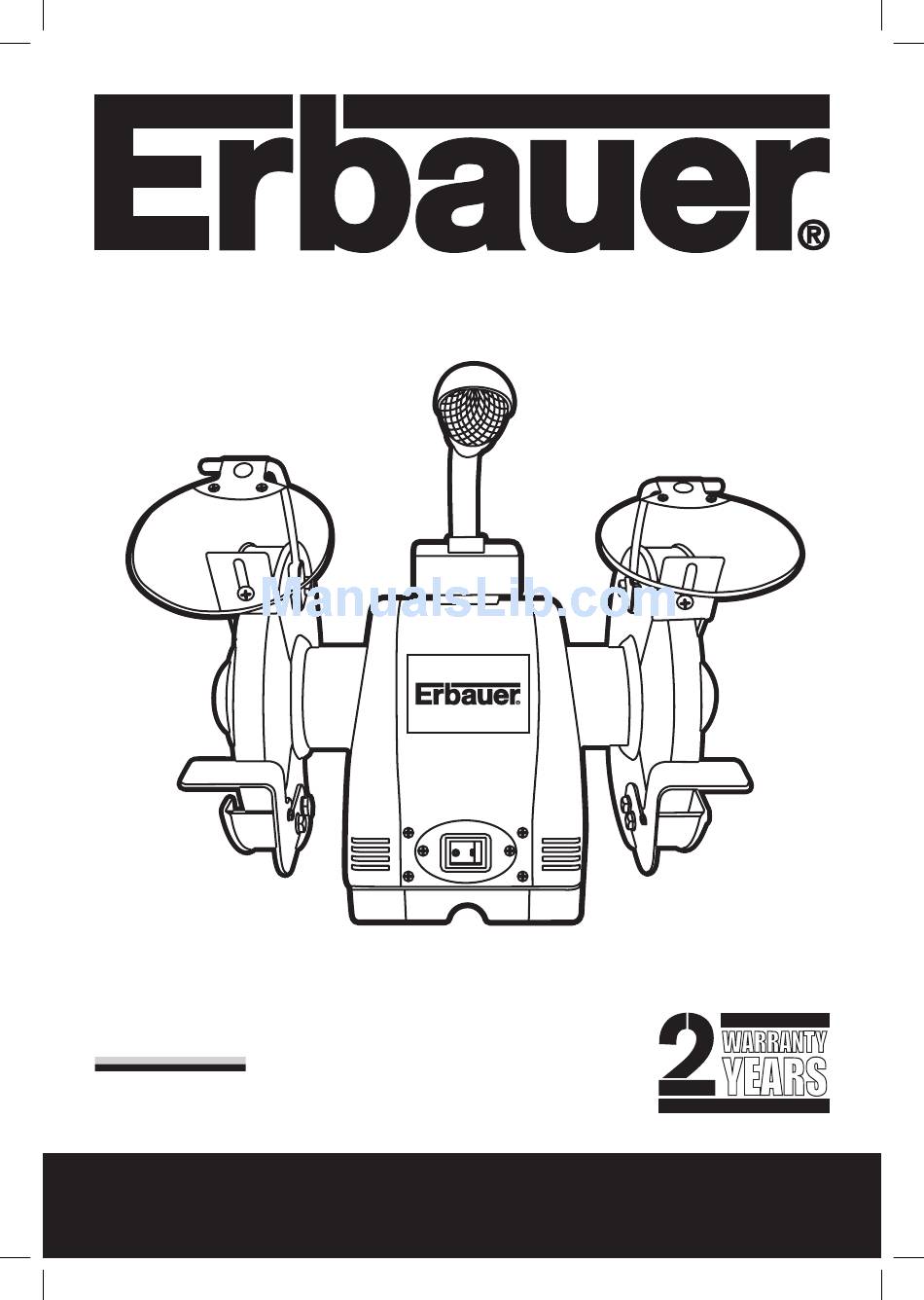

  • Page 1 WARRAN TY YEAR S ERB8DLC 200MM BENCH GRINDER...
  • Page 2 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carries a 24-month guarantee, the terms of which are detailed below.

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term “power tool” in all of the warnings listed below refers to your mains operated (corded) power tool. SAVE THESE INSTRUCTIONS 1.
  • Page 4 Inspect tool cords periodically and if damaged have them repaired by an authorised service facility. Inspect extension cords periodically and replace if damaged. Keep handles dry, clean and free from oil and grease. 15. Disconnect tools When not in use, before servicing and when changing accessories such as blades, bits and cutters, disconnect tools from the power supply.

  • Page 5: Additional Safety Rules For Bench Grinders

    ADDITIONAL SAFETY RULES FOR BENCH GRINDERS 1. Always remove the plug from the mains socket before making any adjustments or maintenance, including changing the wheel. 2. Always wear eye protection and check that the eye shields on the grinder are properly adjusted.

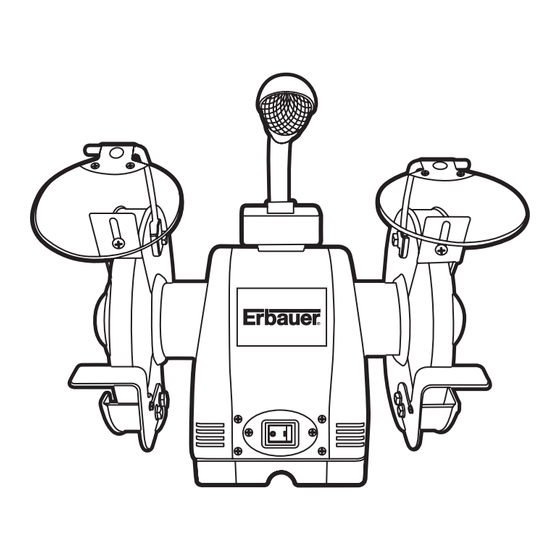

  • Page 6 BASE ON/OFF SWITCH ADJUSTABLE WORK REST GRINDING WHEEL SPARK DEFLECTOR EYE SHIELD WHEEL DRESSING SET WORK LIGHT OUTER GUARD 10. WHEEL GUARD 11. TOOL STORAGE Not all the accessories illustrated or described are included in standard delivery.

  • Page 7: Technical Data

    TECHNICAL DATA Voltage 230V~50Hz Power Input 370W No Load Speed 2850/min Wheel 1 Size 200 x 19 x 15.88mm 60 grit Wheel 2 Size 200 x 19 x 15.88mm 36 grit Net Weight 16.5kg NOISE AND VIBRATION DATA Sound pressure level: 93.2dB Sound power level: 84.5dB...
  • Page 8 ASSEMBLY Caution: During use it is important not to overload the grinder. The grinder should run at close to full speed. If you are applying too much pressure, the grinder will start to slow down. Under these conditions, remove the part being ground and allow the grinder to return to full speed.

  • Page 9: Operating Instructions

    3. Fitting the work rests (See Fig 5, 6) The work rests are required for each high speed grinding wheel to assist in grinding operation. Caution: Never use a Bench Grinder on which the work rest has not been fitted or where the work rest has not been correctly adjusted.
  • Page 10 using the tool. Warning: Never attempt grind Magnesium. Only use the front face of the grinding wheel but not the sides. Please note that the work piece can get very warm. It may be necessary to cool a work piece by dipping it in a coolant or in water. Do not apply coolant or water to the grinding wheel.
  • Page 11 both of nuts with same operation. 4) Remove the nut, the outer flange and the wheel. 5) Fix the replaced wheel on the shaft ensuring that there is a blotter on each side of the wheel. 6) Replace the outer flange and tighten the nut. 7) Replace the outer guard and install the 3 retaining screws.

  • Page 12: Troubleshooting

    Lubrication 1. All models use pre-lubricated sealed ball bearings for the motor and do not require lubrication. 2. If the wheels do not rotate freely, the bearings should be replaced by an authorized service centre. Cleaning 1. Keep the outside of the grinder clean by brushing grinding dust and dirt away from all areas where the dust tends to build up.

  • Page 13: Environmental Protection

    3. Wheel leaves rough finish Too much pressure on the wheel can cause a poor surface finish. If working with aluminum or similar soft alloy, the wheel will soon become clogged and will not grind effectively. There are no other user serviceable parts in your bench grinder.

  • Page 14: Plug Replacement

    PLUG REPLACEMENT The fuse in the main plug of your power tool should always be replaced with one of identical rating. Check the voltage given on your power tool matches the supply voltage. The power tool is supplied with a fitted plug, however if you should need to fit a new plug follows the instruction below.

  • Page 15: Declaration Of Conformity

    Declaration of Conformity We, Importer Erbauer (UK) Ltd BA22 8RT Declare that the product 200MM BENCH GRINDER ERB8DLC Complies with the essential health and safety requirements of the following directive: 89/336 EEC, 93/68 EEC. –EMC Directive. 2006/95/EC. –Low Voltage Directive.
