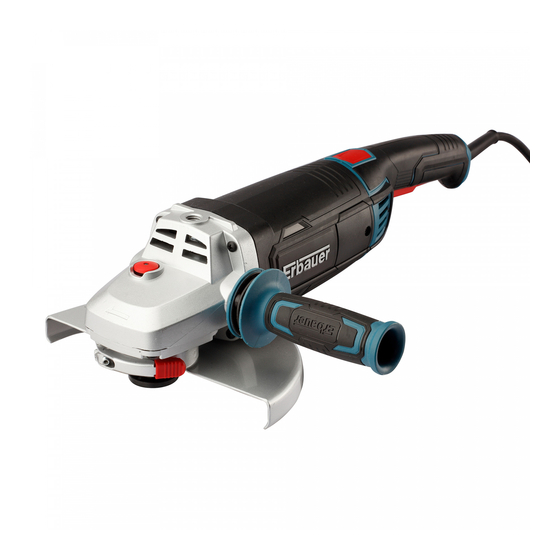

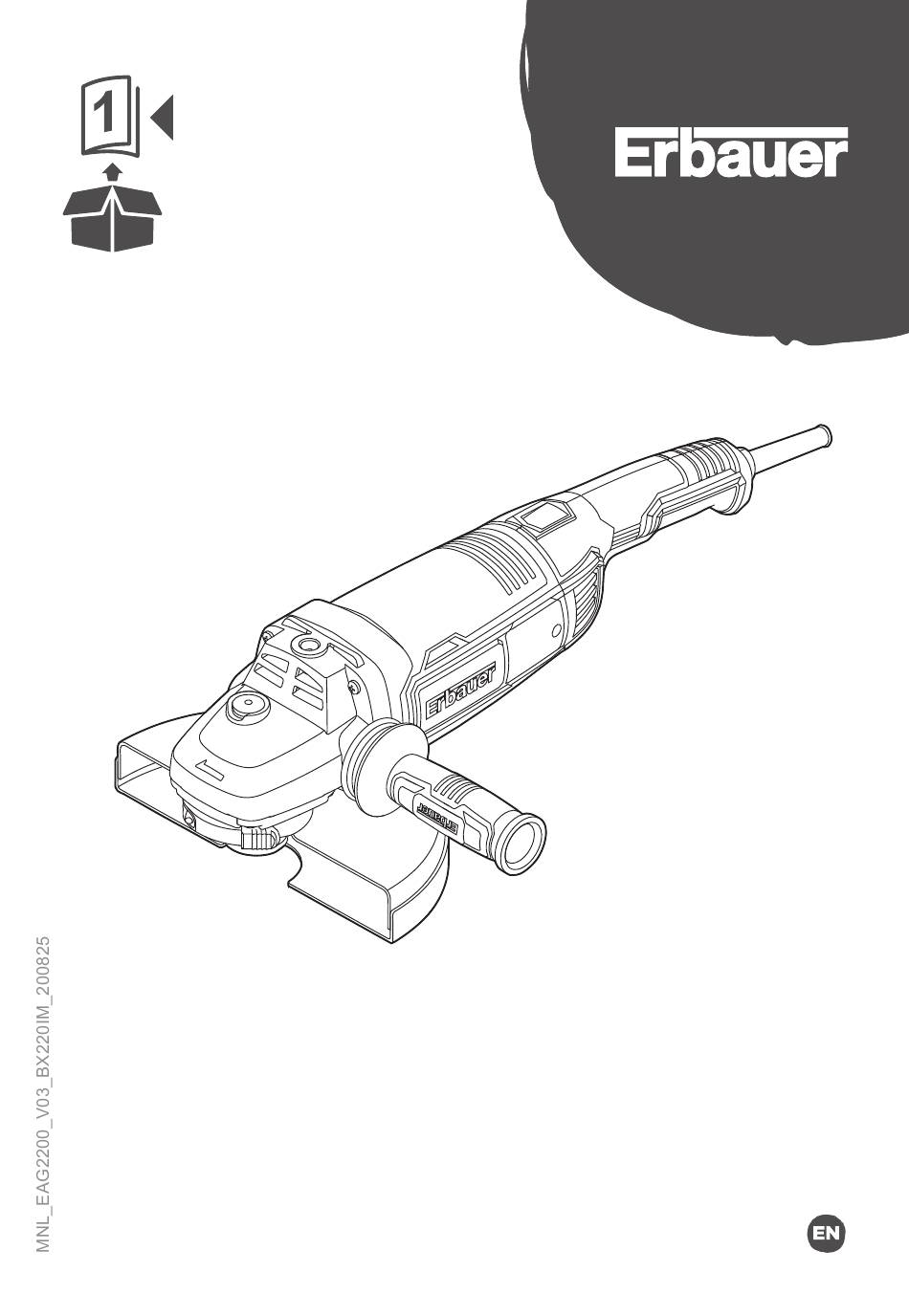

  • Page 1 EAN. 3663602795650 EAG2200 ORIGINAL INSTRUCTIONS...
  • Page 2 Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of Conformity...
  • Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool.
  • Page 4 PRODUCT DESCRIPTION...
  • Page 6 15° to 30°...

  • Page 7: Safety Instructions

    SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

  • Page 8: Personal Safety

    c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
  • Page 9 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
  • Page 10 Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.
  • Page 11 d The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool. Accessories running faster than their rated speed can break and fly apart. e The outside diameter and the thickness of your accessory must be within the capacity rating of your power tool.
  • Page 12 Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.

  • Page 13: Kickback And Related Warnings

    KICKBACK AND RELATED WARNINGS Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding.

  • Page 14: Safety Warnings Specific For Grinding And Abrasive Cutting-Off Operations

    SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS: a Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe. b The grinding surface of centre depressed wheels must be mounted below the plane of the guard lip.
  • Page 15 b Do not position your body in line with and behind the rotating wheel. When the wheel, at the point of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the power tool directly at you. c When wheel is binding or when interrupting a cut for any reason, switch off the power tool and hold the power tool motionless until the wheel comes to a complete...
  • Page 16 Silica is a natural mineral present in large amounts in things like sand, sandstone and granite. It is also commonly found in many construction materials such as concrete and mortar. The silica is broken into very fine dust (also known as Respirable Crystalline Silica or RCS) during many common tasks such as cutting, drilling and grinding Breathing in very fine particles of crystalline silica can lead to the development of: Lung cancer Silicosis Chronic...
  • Page 17 WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: - Lead from lead-based paints. - Crystalline silica from bricks and cement and other masonry products.
  • Page 18 The declared vibration emission been measured in accordance with EN 60745-1& EN 60745-2-3 and may be used to compare one tool with another tool. The declared vibration emission value may also be used in preliminary assessment of exposure. WARNING! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other...
  • Page 19 Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). Avoid using tools in temperatures of 10ºC or less. Plan your work schedule to spread any high vibration tool use across a number of days. NOTE: The use of other tools will reduce the users’ total working period on this tool.

  • Page 20: Product Description

    PRODUCT DESCRIPTION 1. Spindle lock button 2. Mounting threads (×3) 3. Rotary handle lock button 4. Main handle 5. ON /OFF switch 6. Unlock button 7. Air vents 8. Anti-vibration auxiliary handle 9. Cutting safety guard 10. Guard clamping lever 11.
  • Page 21 : 107dB (A) Uncertainty: K & K =3.0dB(A) The noise for the operator may exceed 80 dB(A) and ear protection measures are necessary VIBRATION DATA Surface grinding =6.37m/s² h,AG Uncertainty K =1.5m/s² RATING LABEL EXPLANATION EAG2200=MODEL NUMBER E=Erbauer AG=Angle Grinder 2200=Power (Watts)
  • Page 22 ASSEMBLY SYMBOLS Read the instruction manual Wear eye protection Wear protective gloves. Wear hearing protection. Wear a dust mask. Wear protective, slip resistant footwear. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. Class II tool 3 metre Power Cord Length Anti-Vibration Auxiliary Handle...

  • Page 23: Assembling The Machine

    UNPACKING Unpack all parts and lay them on a flat, stable surface. • Remove all packing materials and shipping devices, if applicable. • Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
  • Page 24 Adjustable outer flange clamping (B1, B2). The outer flange (12) should be adjusted to suit different wheel thickness. For thinner cutting or diamond wheels the raised part of the outer flange is fitted facing away from the wheel. For thicker grinding wheels the raised part of the outer flange is fitted facing towards the wheel to provide improved support for the wheel hole.

  • Page 25: Intended Use

    INTENDED USE The machine is intended for cutting and grinding metal and stone materials without using water. For cutting, a special safety guard for cutting (accessory) must be used. WARNING! Always switch the product off and disconnect it from power supply before making any adjustments! OPERATION OPERATING INSTRUCTIONS...
  • Page 26 STARTING OPERATION (F) Press the unlock button (6) and hold it in position . Press the ON/OFF switch (5) to switch the product on. Release the ON/OFF switch (5) to switch the product off. Hand grip areas Always hold your angle grinder firmly with both hands when operating (G). Grinding (G) The best grinding results are achieved when setting the machine at an angle of 15°...
  • Page 27 When cutting very hard material best results can be achieved with a diamond wheel. When using a diamond wheel it will become very hot. If this happens you will see a full ring of sparks around the rotating wheel. Stop cutting and allow cooling at no load speed for 2-3 minutes.

  • Page 28: Care And Maintenance

    CARE & MAINTENANCE THE GOLDEN RULES FOR CLEANING WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! • Keep the product clean. Remove debris and dust from it after each use and before storage. •...

  • Page 29: Plug Replacement

    PLUG REPLACEMENT If you need to replace the fitted plug, then follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue – Neutral Brown – Live As the colours of the wire in the mains lead of this product may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows.
  • Page 30 RECYCLING AND DISPOSAL Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recycle-more.co.uk REPAIR This product does not contain any parts that can be repaired by the consumer. Contact a qualified specialist to have it checked and repaired.
  • Page 31 GUARANTEE At Erbauer we take special care to select high quality materials and use manufacturing techniques that allow us to create ranges of products incorporating design and durability. That’s why we offer a 2 year trade guarantee against manufacturing defects on our Erbauer power tool products.

  • Page 32: Declaration Of Conformity

    Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands Declare that the product: Erbauer 2200W angle grinder EAG2200 Serial number 00001-99999 Complies with the essential health and safety requirements of the following directives: 2006/42/EC The Machinery Directive References to the following harmonized standard were made:...
  • Page 36 Manufacturer • Fabricant • Producent • Producător • Fabricante: UK manufacturer: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom www.kingfisher.com/products EU manufacturer: Kingfisher International Products B.V. Rapenburgerstraat 175E 1011 VM Amsterdam The Netherlands www.diy.com | www.screwfix.com | www.screwfix.ie To view instruction manuals online, visit www.kingfisher.com/products Customer Helpline (Freephone)
