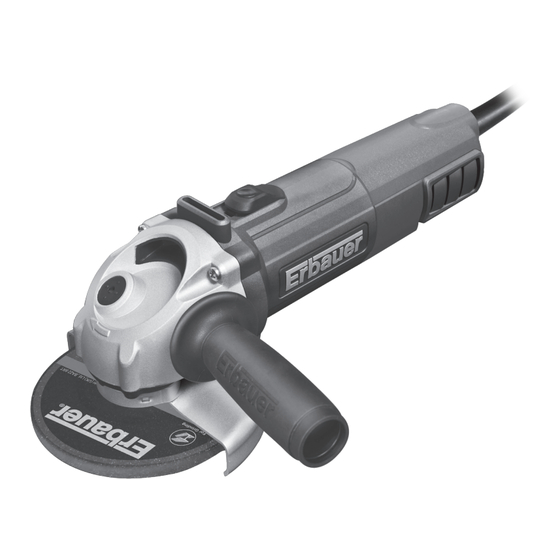

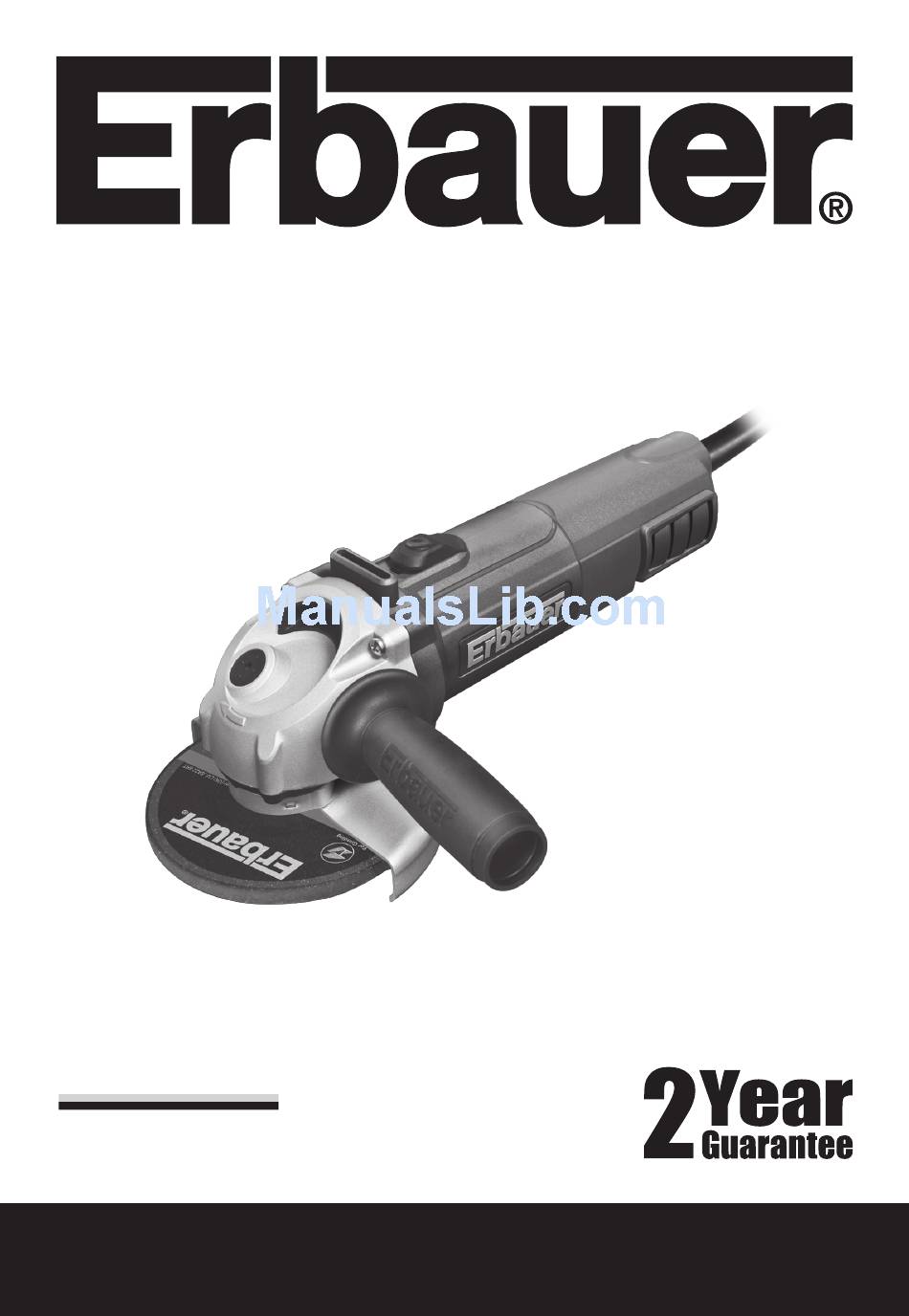

- Page 1 ERB386GRD 710W 115mm ANGLE GRINDER...
- Page 2 Original Instructions (Version 1.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your electric (corded) power tool or battery- operated (cordless) power tool. - Page 5 f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 6 3. Do not use accessories which are not specifically designed and recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation. 4. The rated speed of the accessory must be at least equal to the maximum speed marked on the power tool.
- Page 7 Further safety instructions for all operations Kickback and Related Warnings Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding.
- Page 8 Additional safety instructions for cutting-off operations Additional Safety Warnings Specific for Abrasive Cutting-Off Operations: 1. Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the wheel in the cut and the possibility of kickback or wheel breakage.
- Page 9 VIBRATION The European Physical Agents (Vibration) Directive has been brought in to help reduce hand arm vibration syndrome injuries to power tool users. The directive requires power tool manufacturers and suppliers to provide indicative vibration test results to enable users to make informed decisions as to the period of time a power tool can be used safely on a daily basis and the choice of tool.
- Page 10 Avoid using tools in temperatures of 10ºC or less. Plan your work schedule to spread any high vibration tool use across a number of days. Health Surveillance All employees should be part of an employer’s health surveillance scheme to help identity any vibration related diseases at an early stage, prevent disease progression and help employees stay in work.
- Page 11 SYmBOLS To reduce the risk of injury, user must read instruction manual Warning Double insulation Wear ear protection Wear eye protection Wear dust mask Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.
- Page 13 ON-OFF SWITCH MAIN HAND AREA AUXILIARY HANDLE SPINDLE LOCK BUTTON OUTER FLANGE INNER FLANGE SPINDLE GRINDING DISC SPANNER PROTECTION GUARD FOR GRINDING CLAMPING SCREW CODED PROJECTION PROTECTION GUARD FOR CUTTING 710W 115mm ANGLE GRINDER 710W 115mm ANGLE GRINDER...
-
Page 14: Technical Data
TECHNICAL DATA Rated voltage 230-240V~50Hz Rated input power 710W Rated speed 11000/min Protection class Spindle thread Disc size 115mm Disc bore 22.2mm Machine weight 2.3 Kg NOISE INFORmATION A weighted sound pressure: : 88 dB (A) =3.0 dB (A) A weighted sound power: : 99 dB (A) =3.0 dB (A) Wear ear protection when sound pressure is over... -
Page 15: Spindle Lock Button
OPERATING INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for cutting, roughing and brushing metal and stone materials without using water. For cutting metal, a special protection guard for cutting ( accessory) must be used. ASSEMBLY AND ADJUSTMENT MOUNTING THE PROTECTIVE DEVICES 1. - Page 16 3. ADJUSTABLE OUTER FLANGE CLAMPING The outer flange (5) should be adjusted to suit different disc thickness. For thinner cutting discs the raised part of the outer flange is fitted facing away from the disc (See Fig.3-1). For thicker grinding discs the raised part of the outer flange is fitted facing towards the disc to provide improved support for the disc hole (See Fig.3-2).
- Page 17 1. HAND GRIP AREAS Always hold your angle grinder firmly with both hands when operating (See Fig.5). 2. ROUGH GRINDING The best roughing results are achieved when setting the machine at an angle of 30° to 40°. Move the machine back and forth with moderate pressure. In this manner, the workpiece will not become too hot, does not discolour and no grooves are formed.
- Page 18 WORKING HINTS FOR YOUR ANGLE GRINDER If your power tool becomes too hot, run no load for 2-3 minutes to cool the motor. Never start your angle grinder with the disc/ accessory in contact with the workpiece. Always start at no load to achieve maximum speed then start working.
-
Page 19: Maintenance
mAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. -
Page 20: Plug Replacement
PLUG REPLACEmENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below. IMPORTANT The wires in the mains lead are colored in accordance with the following code: BLUE =NEUTRAL Brown = Live As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows. - Page 21 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-1 EN 60745-2-3 Authorised Signatory and technical file holder Date: 07/04/11 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT 710W 115mm ANGLE GRINDER...
