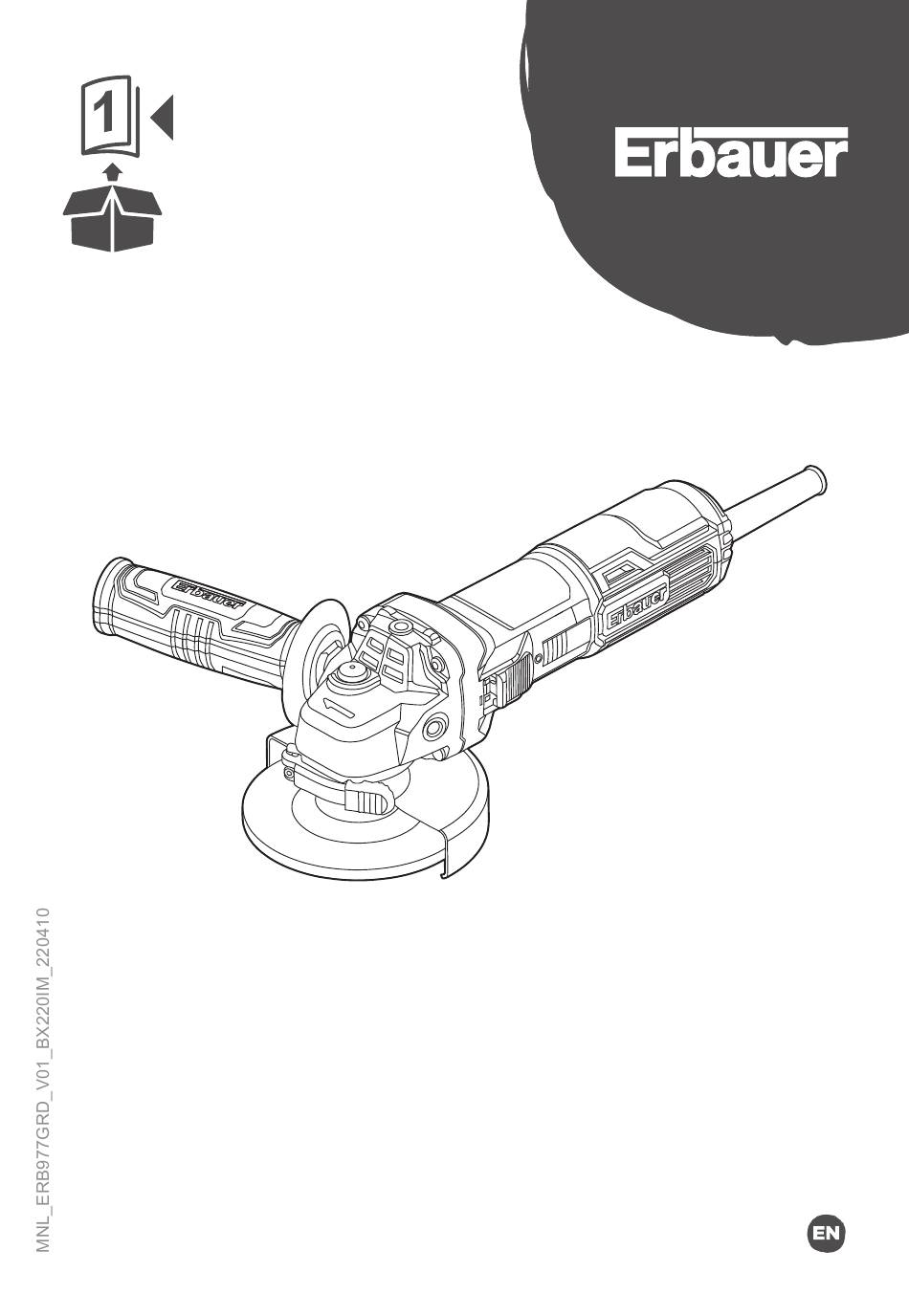

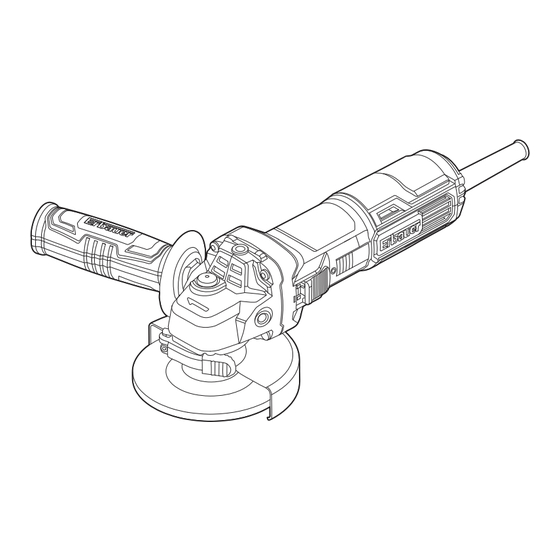

  • Page 1 ERB977GRD ORIGINAL INSTRUCTIONS...
  • Page 2 Safety instructions Product description Assembly Care & maintenance Guarantee Declaration of Conformity...
  • Page 3 WARNING! Please read all safety warnings carefully and be sure that they are fully understood before handling the tool.
  • Page 4 PRODUCT DESCRIPTION 10 11...
  • Page 5 15° -30°...
  • Page 7: Safety Instructions

    SAFETY INSTRUCTIONS GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 8: Personal Safety

    c Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. d Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.
  • Page 9 Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
  • Page 10 g Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. SERVICE a Have your power tool serviced by a qualified repair person using only identical replacement parts.
  • Page 11 Threaded mounting of accessories must match the grinder spindle thread. For accessories mounted by flanges, the arbour hole of the accessory must fit the locating diameter of the flange. Accessories that do not match the mounting hardware of the power tool will run out of balance, vibrate excessively and may cause loss of control.
  • Page 12 Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation. Hold power tool by insulated gripping surfaces only, when performing an operation where the cutting accessory may contact hidden wiring or its own cord.
  • Page 13: Kickback And Related Warnings

    KICKBACK AND RELATED WARNINGS Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the binding.
  • Page 14 ADDITIONAL SAFETY INSTRUCTIONS FOR GRINDING AND CUTTING-OFF OPERATIONS SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTING-OFF OPERATIONS: a Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
  • Page 15 a Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or bind- ing of the wheel in the cut and the possibility of kickback or wheel breakage.
  • Page 16 Construction workers are one of the at-risk groups within this because of the dust that they breathe: silica dust is not just a nuisance; it is a real risk to your lungs! Silica is a natural mineral present in large amounts in things like sand, sandstone and granite.
  • Page 17 WARNING! Some dust particles created by power sanding, sawing, grinding, drill and other construction jobs contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: - Lead from lead-based paints. - Crystalline silica from bricks and cement and other masonry products.
  • Page 18 The declared vibration emission been measured in accordance with EN 60745-1& EN 60745-2-3 and may be used to compare one tool with another tool. The declared vibration emission value may also be used in preliminary assessment of exposure. WARNING! The vibration emission value during actual use of the power tool can differ from the declared value depending on the ways in which the tool is used dependant on the following examples and other variations...
  • Page 19 Maintain this tool in accordance with these instructions and keep well lubricated (where appropriate). Avoid using tools in temperatures of 10ºC or less. Plan your work schedule to spread any high vibration tool use across a number of days. NOTE: The use of other tools will reduce the users’ total working period on this tool.
  • Page 20: Product Description

    PRODUCT DESCRIPTION 1. Grinding/Cutting wheel (not included) 9. Guard clamping lever 2. Auxiliary handle 10. Inner flange 3. Spindle lock button 11. Outer flange 4. Mounting threads (×3) 12. Spindle 5. Gripping surface 13. Clamp adjustment screw 6. Air vents 14.
  • Page 21 RATING LABEL EXPLANATION ERB977GRD=MODEL NUMBER ERB=Erbauer 977=Serial number GRD=ANGLE GRINDER...
  • Page 22 ASSEMBLY SYMBOLS Read the instruction manual Wear eye protection Wear protective gloves. Wear hearing protection. Wear a dust mask. Wear protective, slip resistant footwear. Switch the product off and disconnect it from the power supply before assembly, cleaning, adjustments, maintenance, storage and transportation. Class II tool 3 metre Power Cord Length Manufacturing date code: Year of manufacturing (20yy) and week...
  • Page 23: Assembling The Machine

    UNPACKING Unpack all parts and lay them on a flat, stable surface. • Remove all packing materials and shipping devices, if applicable. • Make sure the delivery contents are complete and free of any damage. If you find that parts are missing or show damage do not use the product but contact your dealer.
  • Page 24 the wheel. For thicker grinding wheels the raised part of the outer flange is fitted facing towards the wheel to provide improved support for the wheel hole. Always ensure your wheel is securely clamped. Grinding/Cutting Wheel ( B3 ) Pay attention to the dimensions of the grinding wheel. The mounting hole diameter must fit the inner flange (10) without play.
  • Page 25: Intended Use

    INTENDED USE The machine is intended for cutting and grinding metal and stone materials without using water. For cutting, a special safety guard for cutting (accessory) must be used. WARNING! Always switch the product off and disconnect it from power supply before making any adjustments! OPERATION OPERATING INSTRUCTIONS...
  • Page 26: Working Hints For Your Angle Grinder

    WARNING! Never use a cutting wheel for grinding. Cutting ( H ) When cutting, do not press, tilt or oscillate the machine. Work with moderate feed, adapted to the material being cut. Do not reduce the speed of running down cutting wheels by applying sideward pressure. The direction in which the cutting is performed is important.
  • Page 27: Care And Maintenance

    CARE & MAINTENANCE THE GOLDEN RULES FOR CLEANING WARNING! Always switch the product off, disconnect the product from the power supply and let the product cool down before performing inspection, maintenance and cleaning work! • Keep the product clean. Remove debris and dust from it after each use and before storage. •...
  • Page 28: Plug Replacement

    PLUG REPLACEMENT If you need to replace the fitted plug, then follow the instructions below. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Blue – Neutral Brown – Live As the colours of the wire in the mains lead of this product may not correspond with the coloured marking identifying the terminals in your plug, proceed as follows.
  • Page 29 STORAGE • Clean the product as described above. • Store the product and its accessories in a dry, frost-free place. • Always store the product in a place that is inaccessible to children. The ideal storage temperature is between 10 and 30°C. •...
  • Page 30 GUARANTEE We take special care to select high quality materials and use manufacturing techniques that allow us to create products incorporating design and durability. This product Angle grinder) has a manufacturer’s guarantee of 3 years against manufacturing defects, from the date of purchase (if bought in store) or date of delivery (if bought online), at no additional cost.
  • Page 31: Declaration Of Conformity

    DECLARATION OF CONFORMITY (UK) DECLARATION OF CONFORMITY Product • Angle grinderr • ERB977GRD • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Kingfisher International Products Limited 3 Sheldon Square London W2 6PX United Kingdom This declaration of conformity is issued under the sole responsibility of the manufacturer.
  • Page 32 (PT) DECLARAÇÃO DE CONFORMIDADE UE Product/ Produit/ Produkt/Produsul/Producto/Produto • Angle grinder/Meuleuse/Szlifierka kątowa/Polizor unghiular/Amoladora angular/ Máquina de afiar angular • ERB977GRD • Serial number 00001-99999 Name and address of the manufacturer or his authorised representative: Nom et adresse du fabricant ou de son mandataire: Nazwa i adres producenta lub jego upoważnionego przedstawiciela:...
  • Page 33 2006/42/EC as amended Machinery Directive 2014/30/EU as amended Directive Electromagnetic compatibility 2011/65/EU as amended Directive Restriction of the use of certain hazardous substances in electrical and electronic equipment Directive 2006/42/CE relative aux machines 2014/30 / UE telle que modifiée Directive Compatibilité électromagnétique Directive 2011/65/UE relative à...
  • Page 34 Authorized Signatory and technical file holder/ Signataire et responsable de la documentation technique autorisé/ Podmiot uprawniony do wystawienia i adres przechowywania dokumentacji technicznej/ Semnatar autorizat şi deţinătorul dosarului ethnic/ Firmante autorizado y titular del expediente técnico/Signatário autorizado e detentor da ficha técnica: Kingfisher International Products B.V., Rapenburgerstraat 175E, 1011 VM Amsterdam,...
