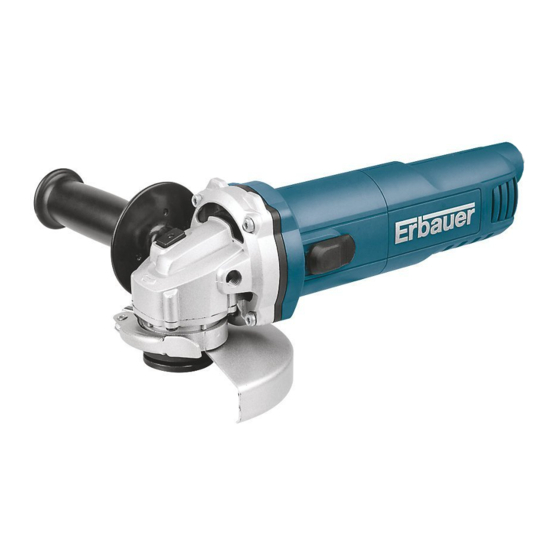

750w 115mm angle grinder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ERB666GRD
750W 115mm ANGLE GRINDER
ERB666GRD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERB666GRD and is the answer not in the manual?

Questions and answers

Related Manuals for Erbauer ERB666GRD

Summary of Contents for Erbauer ERB666GRD

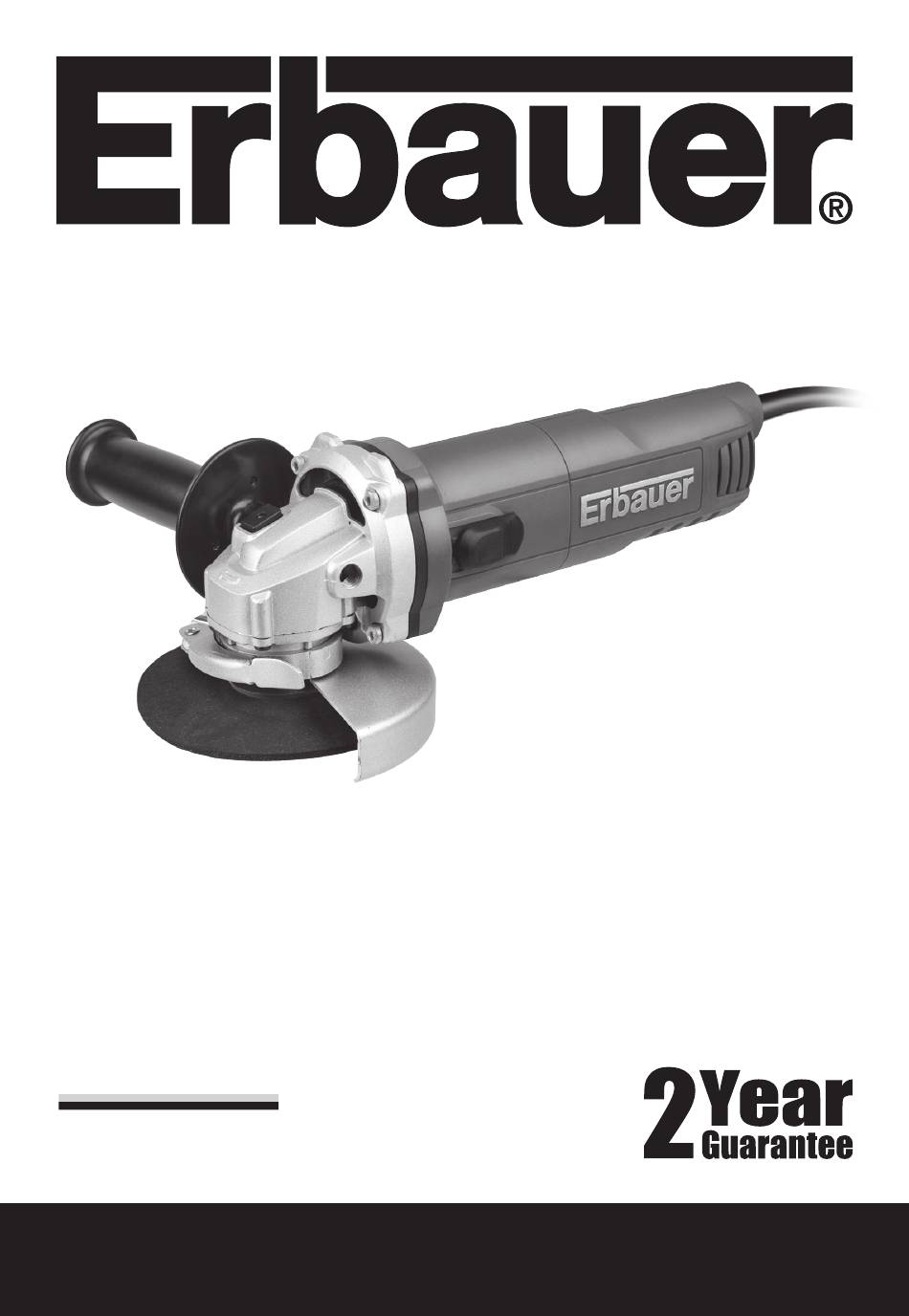

  • Page 1 ERB666GRD 750W 115mm ANGLE GRINDER ERB666GRD...
  • Page 2 Original Instructions (Version 2.0)
  • Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.

  • Page 4: General Safety Instructions

    GENERAL SAFETY INSTRUCTIONS WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
  • Page 5 The correct power tool will do the job better and safer at the rate for which it was designed. b. Do not use the power tool if the switch does not turn it on 750W 115mm ANGLE GRINDER ERB666GRD...

  • Page 6: Safety Warnings Common For Grinding Or Abrasive Cutting-Off Operations

    and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c. Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
  • Page 7 Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping 750W 115mm ANGLE GRINDER ERB666GRD...
  • Page 8 small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss. Keep bystanders a safe distance away from work area.
  • Page 9 Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent kickback and loss of control. 750W 115mm ANGLE GRINDER ERB666GRD...
  • Page 10 Additional safety instructions for grinding and cutting-off operations Safety Warnings Specific for Grinding and Abrasive Cutting-Off Operations: a) Use only wheel types that are recommended for your power tool and the specific guard designed for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded and are unsafe.
  • Page 11 RCS) during many common tasks such as cutting, drilling and grinding Breathing in very fine particles of crystalline silica can lead to the development of: Lung cancer Silicosis Chronic Obstructive Pulmonary Disorder (Chronic obstructive pulmonary disease (COPD) And breathing in fine particles of wood dust can lead to the 750W 115mm ANGLE GRINDER ERB666GRD...
  • Page 12 development of Asthma The risk of lung disease is linked to people who regularly breathe construction dust over a period of time, not on the odd occasion. To protect the lung, the COSHH Regulations sets a limit on the amount of these dusts that you can breathe (called a Workplace Exposure Limit or WEL) when averaged over a normal working day.
  • Page 13 Be sure the supply is the same as the voltage given on the rating plate. The tool is fitted with a two-core cable and plug. Remove the mains plug from socket before carrying out, any adjustment or servicing. 750W 115mm ANGLE GRINDER ERB666GRD...
  • Page 14 SYMBOLS To reduce the risk of injury, user must read instruction manual Double insulation Warning Wear ear protection Wear eye protection Wear dust mask Wear protective gloves Waste electrical products must not be disposed of with household waste. Please recycle where facilities exist. Check with your local authorities or retailer for recycling advice.
  • Page 15 750W 115mm ANGLE GRINDER ERB666GRD...

  • Page 16: Spindle Lock Button

    SPINDLE LOCK BUTTON ON / OFF SWITCH ANTI-VIBRATION AUXILIARY HANDLE SPANNER INNER FLANGE OUTER FLANGE CLAMP ADJUSTMENT SCREW SPINDLE GUARD CLAMPING LEVER WHEEL GUARD FOR GRINDING DISC* WHEEL GUARD FOR CUTTING * Not all the accessories illustrated or described are included in standard delivery.

  • Page 17: Technical Data

    : 89.7dB (A) =3.0 dB (A) A weighted sound power: : 100.7dB (A) =3.0 dB (A) Wear ear protection when sound pressure is over 80dB(A) ACCESSORIES Auxiliary handle Spanner Wheel guard for cutting Wheel guard for grinding 750W 115mm ANGLE GRINDER ERB666GRD...

  • Page 18: Intended Use

    OPERATING INSTRUCTIONS Note: Before using the tool, read the instruction book carefully. INTENDED USE The machine is intended for cutting, roughing and brushing metal and stone materials without using water. For cutting metal, a special protection guard for cutting (accessory) must be used. ASSEMBLY AND ADJUSTMENT Mounting the Protective Devices 1.

  • Page 19: Operation

    • Pull the plug from the socket-outlet when not Fig. 5 using the machine. With the plug inserted and mains voltage existing, the power tool still has low 750W 115mm ANGLE GRINDER ERB666GRD...
  • Page 20 Fig. 3 power consumption even when it switched off. (See Fig 4) Starting Operation To start the power tool, push the on/off switch (2) forward. To lock the on/off switch (2), press the on/off switch (2) down at the front until it engages. To switch off the power tool, release the on/off switch (2) or, if it is locked, briefly push down the back of the on/off switch (2) and then release it.

  • Page 21: Maintenance

    This is normal and will not damage your power tool. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. 750W 115mm ANGLE GRINDER ERB666GRD...

  • Page 22: Environmental Protection

    ENVIRONMENTAL PROTECTION Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. For further information visit www.recycle-more.co.uk. PLUG REPLACEMENT (UK & IRELAND ONLY) If you need to replace the fitted plug then follow the instructions below.
  • Page 23 Standards conform to: EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-1 EN 60745-2-3 Authorised Signatory and technical file holder Date: 02/11/16 Signature: Name / title: John Fretwell / Quality Assurance Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT...
