Summary of Contents for Erbauer ERB564GRD

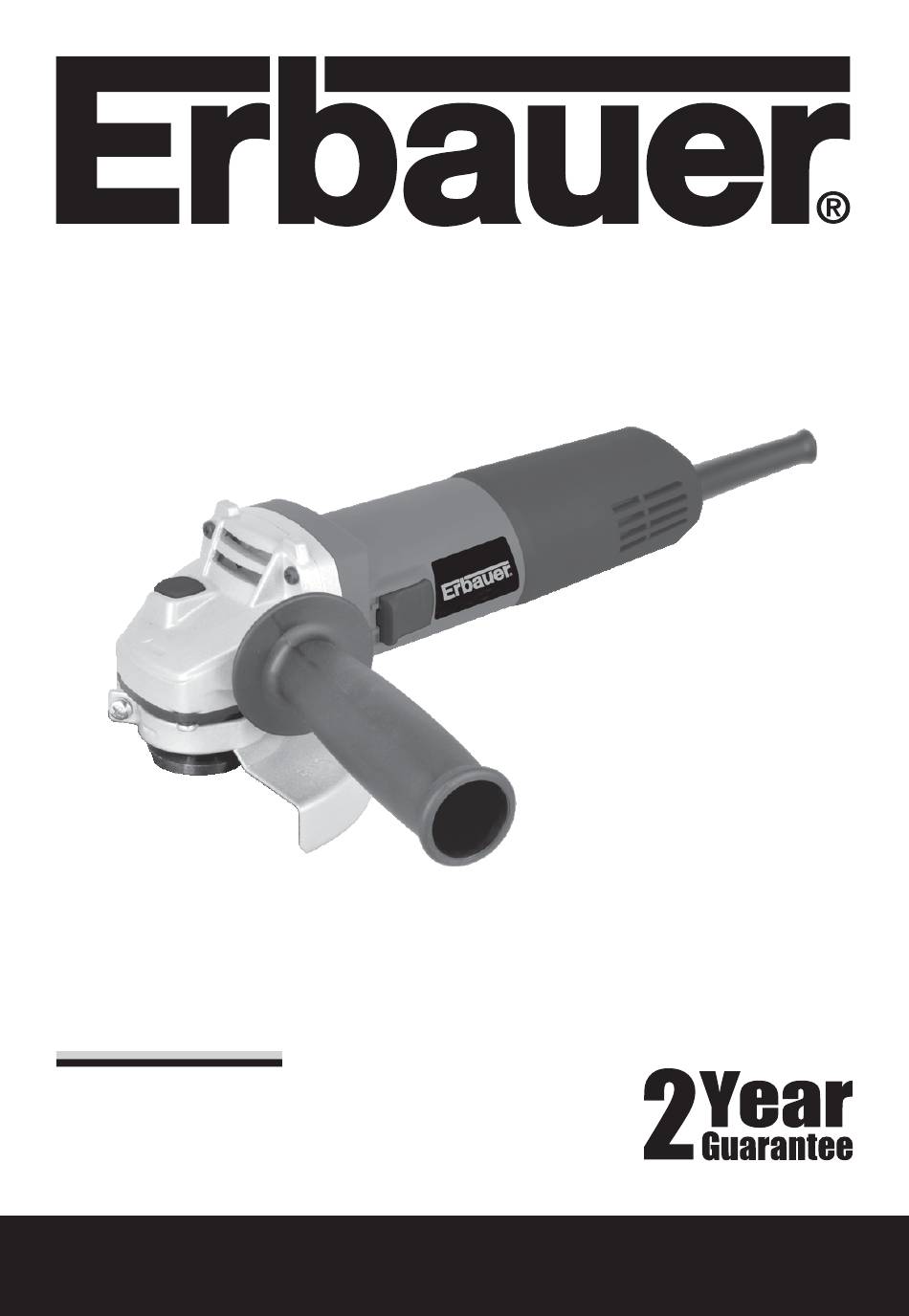

- Page 1 ERB564GRD ERA588GRD 720W 115mm ANGLE GRINDER ERB564GRD / ERA588GRD...
- Page 2 Original Instructions (Version 1.0)
- Page 3 Congratulations on your purchase of a quality power tool from Erbauer (UK) Ltd. This product should give you reliable service but for your peace of mind this power tool does carry a 2 year guarantee, the terms of which are detailed below.
-
Page 4: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS Warning: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your electric (corded) power tool or batteryoperated (cordless) power tool. - Page 5 1. This power tool is intended to function as a grinder, or cut-off tool. Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. 720W 115mm ANGLE GRINDER ERB564GRD / ERA588GRD...
- Page 6 2. ALWAYS check the blade is correct fitted ,the disc outer flange is fully secured the correct guard is fitted and correctly secured BEFORE EVERY use, operations such as sanding, wire brushing, polishing are not recommended to be performed with this power tool. Operations for which the power tool was not designed may create a hazard and cause personal injury.
- Page 7 4. Always use undamaged wheel flanges that are of correct size and shape for your selected wheel. Proper wheel flanges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off wheels may be different from grinding wheel flanges. 720W 115mm ANGLE GRINDER ERB564GRD / ERA588GRD...
- Page 8 5. Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not suitable for the higher speed of a smaller tool and may burst. Additional safety instructions for cutting-off operations Additional Safety Warnings Specific for Abrasive Cutting-Off Operations: 1.
- Page 9 Vibration total values (triax vector sum) determined according to EN 60745: Vibration emission value a = 6.2 m/s² ERB564GRD Uncertainty K = 1.5 m/s² Grinding operation Vibration emission value a = 9.7 m/s² ERA588GRD Uncertainty K = 1.5 m/s² 720W 115mm ANGLE GRINDER ERB564GRD / ERA588GRD...
- Page 10 The declared vibration emission value should be used as a minimum level and should be used with the current guidance on vibration. Calculating the actual period of the actual period off use can be difficult and the HSE website has further information. The declared vibration emission been measured in accordance with a standardised test stated above and may be used to compare one tool with another tool.
- Page 11 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. yyWxx Manufacturing date code; year of manufacturing (20yy) and week of manufacturing (Wxx); 720W 115mm ANGLE GRINDER ERB564GRD / ERA588GRD...
-
Page 12: Product Description
PRODUCT DESCRIPTION 1. SPINDLE LOCK BUTTON 7. OUTER FLANGE 8. PROTECTION GUARD FOR GRINDING 2. MAIN HAND AREA 3. ON-OFF SWITCH 9. CODED PROJECTION 4. AUXILIARY HANDLE 10. PROTECTION GUARD FOR CUTTING 5. SPINDLE 11. CLAMPING SCREW 6. INNER FLANGE 12. -
Page 13: Technical Specifications
=3.0 dB (A) ERA588GRD A weighted sound power: : 99 dB (A) =3.0 dB (A) Wear ear protection when sound pressure is over 80dB(A) ACESSORIES Spanner wheel guard for cutting wheel guard for grinding 720W 115mm ANGLE GRINDER ERB564GRD / ERA588GRD... -
Page 14: Intended Use
TECHNICAL SPECIFICATIONS Note: Before using the tool, read the instruction book carefully. INTENDED USE The machine is intended for cutting, roughing and brushing metal and stone materials without using water. For cutting metal, a special protection guard for cutting ( accessory) must be used. ASSEMBLY AND ADJUSTMENT MOUNTING THE PROTECTIVE DEVICES 1. - Page 15 • Pull the plug from the socket-outlet when not using the machine. With the plug inserted and mains voltage existing, the power tool still has low power consumption even when it switched off. 720W 115mm ANGLE GRINDER ERB564GRD / ERA588GRD...
- Page 16 1. HAND GRIP AREAS Always hold your angle grinder firmly with both hands when operating (See Fig.5). 2. ROUGH GRINDING The best roughing results are achieved when setting the machine at an angle of 30° to 40°. Move the machine back and forth with moderate pressure. In this manner, the workpiece will not become too hot, does not discolour and no grooves are formed.
- Page 17 If you cut in the same direction as the disc rotation the disc may push itself out of the cut slot. Always ensure the workpiece is firmly held or clamped to prevent movement. 720W 115mm ANGLE GRINDER ERB564GRD / ERA588GRD...
-
Page 18: Environmental Protection
WORKING HINTS FOR YOUR ANGLE GRINDER Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. -
Page 19: Plug Replacement
13 Amp fuse approved to BS 1363 Connect Blue to N Brown L(live) (neutral) Outer sleeve Cable grip 720W 115mm ANGLE GRINDER ERB564GRD / ERA588GRD... - Page 20 Standards conform to: EN 55014-1 EN 55014-2 EN 61000-3-2 EN 61000-3-3 EN 60745-1 EN 60745-2-3 Authorised Signatory and technical file holder Date: 25/10/13 Signature: Name / title: Peter Harries / Quality Manager Erbauer (UK) Ltd. Trade House, Mead Avenue, BA22 8RT...
- Page 21 720W 115mm ANGLE GRINDER ERB564GRD / ERA588GRD...
